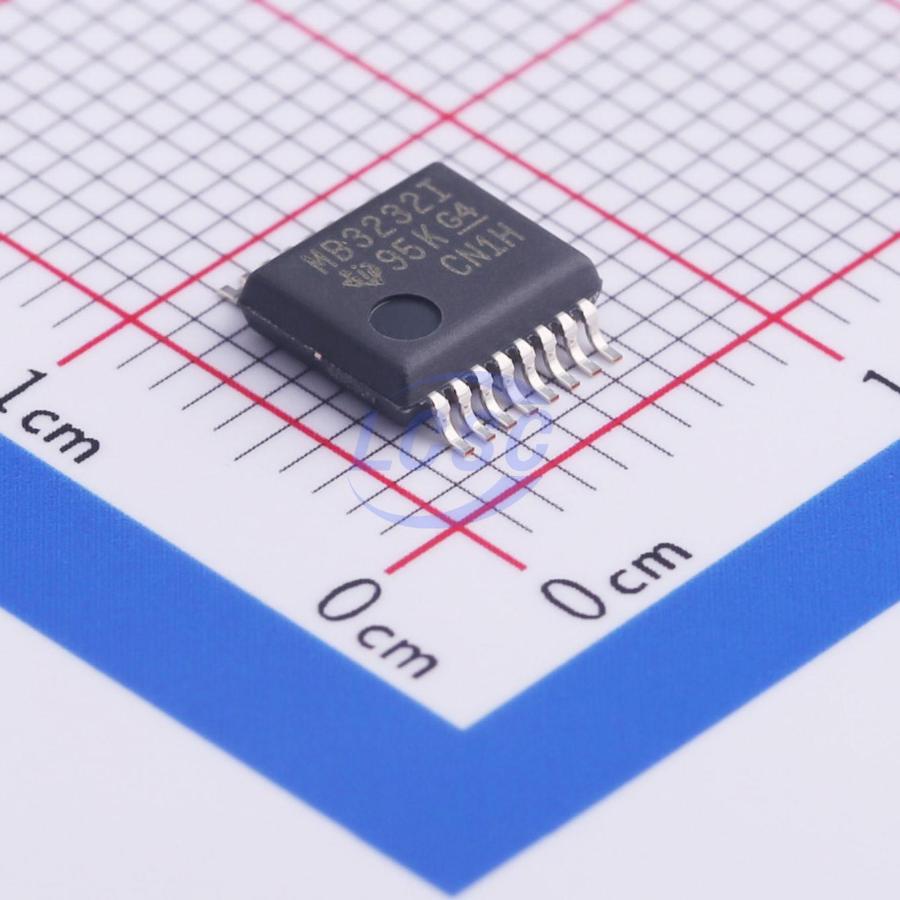

MAX3232IDBR

Transceiver 3V~5.5V 250Kbps SSOP-16-4.4mm Drivers, Receivers, Transceivers RoHS

SSOP-16-4.4mmROHS3 CompliantActive

3-V to 5.5-V Multichannel RS-232 Line Driver/Receiver With ±15-kV ESD Protection

Manufacturer: TI
Manufacturer part #: MAX3232IDBR
Store part #: C477939
Package / case: SSOP-16-4.4mm
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,923 in stock

#C477939

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹290.76	₹290.76
10+	₹246.63	₹2,466.30
30+	₹202.52	₹6,075.60
100+	₹174.28	₹17,428.00
500+	₹161.46	₹80,730.00
1,000+	₹155.81	₹1,55,810.00

Quantity (min 1)

1 × ₹290.76

₹290.76

excl. GST

₹343.10 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

MAX3232IDBR

₹290.76 for 1 + GST

Specifications

Type: Transceiver
Voltage - Supply: 3V~5.5V
Data Rate: 250Kbps
Operating Temperature: -40℃~+85℃
ESD Protect: ±15kV
charge pump: Yes
Number of Drivers: 2
Number of Receivers: 2
Quiescent Supply Current: 1mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.295 g

Overview

The MAX3232 device consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection terminal to terminal (serialport connection terminals, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The devices operate at data signaling rates up to 250 kbit/s and a maximum of 30-V/μs driver output slew rate.

Applications

Battery-Powered Systems
PDAs
Notebooks
Laptops
Palmtop PCs
Hand-Held Equipment

Key features

RS-232 Bus-Terminal ESD Protection Exceeds ±15 kV Using Human-Body Model (HBM)
Meets or Exceeds the Requirements of TIA/EIA 232-F and ITU V.28 Standards
Operates With 3-V to 5.5-V Supply
Operates up to 250 kbit/s
Two Drivers and Two Receivers
Low Supply Current: 300 μA Typical
External Capacitors: 4x0.1 μF
Accepts 5-V Logic Input With 3.3-V Supply
Alternative High-Speed Terminal-Compatible Devices (1 Mbit/s) SN65C3232 (-40℃ to 85℃) SN75C3232 (0℃ to 70℃)
