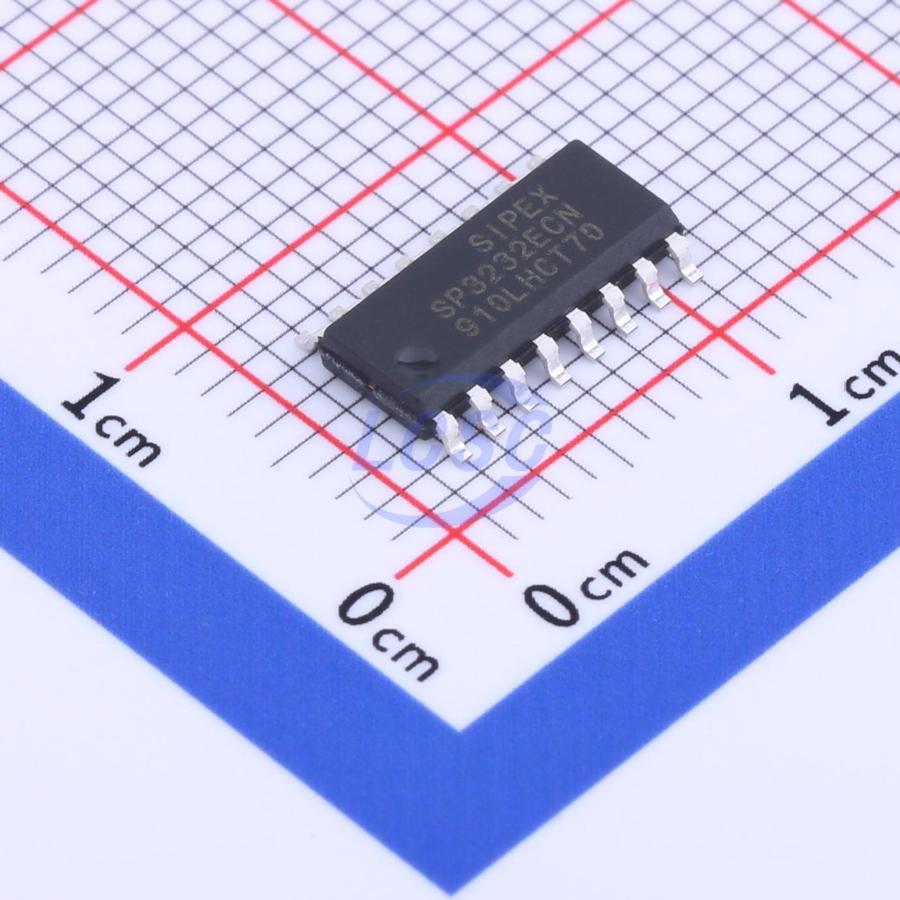

SP3232ECN-L/TR

The SP3222E and SP3232E series are RS-232 transceiver solutions intended for portable or hand-held applications such as notebook or palmtop computers. The SP3222E / SP3232E series has a high-efficiency, charge-pump power supply that requires only 0.1μF capacitors in 3.3V operation. This charge pump allows the SP3222E / SP3232E series to deliver true RS-232 performance from a single power supply ranging from 3.0V to 5.5V. The SP3222E / SP3232E are 2-driver / 2-receiver devices. This series is ideal for portable or hand-held applications such as notebook or palmtop computers. The ESD tolerance of the SP3222E / SP3232E devices are over ±15KV for both Human Body Model and IEC61000-4-2 Air discharge test methods. The SP3222E device has a low-power shutdown mode where the devices’ driver outputs and charge pumps are disabled. During shutdown, the supply current falls to less than 1μA.

Applications

• battery-powered, portable, or hand-held applications
• notebook or palmtop computers
• 3.3V-only systems
• mixed 3.3V to 5.5V systems
• 5.0V-only systems

Key features

• Meets true EIA/TIA-232-F standards from a 3.0V to 5.5V power supply
• Minimum 120kbps data rate under full load
• 1μA low power shutdown with receivers active (SP3222E)
• Interoperable with RS-232 down to a 2.7V power source
• Enhanced ESD specifications:
• ±15KV Human Body Model
• ±15KV IEC61000-4-2 Air Discharge
• ±8KV IEC61000-4-2 Contact Discharge
