TIDatasheet (PDF)

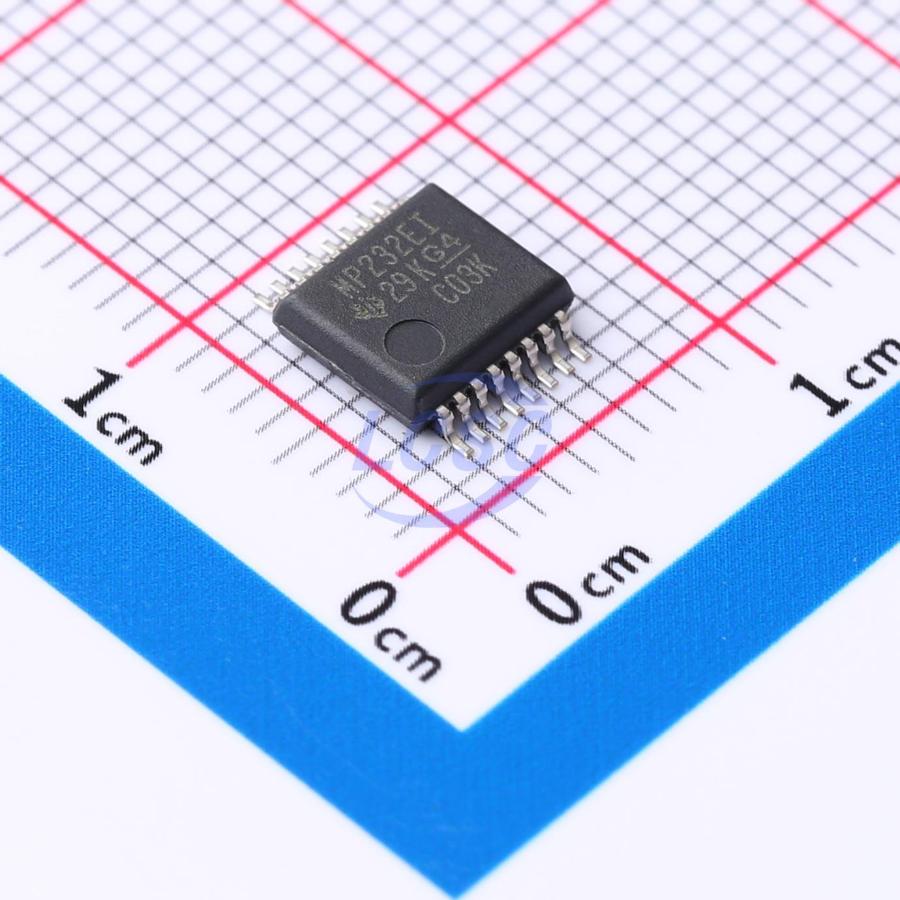

MAX3232EIDBR
Transceiver 3V~5.5V 250Kbps SSOP-16 Drivers, Receivers, Transceivers RoHS
SSOP-16ROHS CompliantActive
3-V to 5.5-V Multichannel RS-232 Line Driver and Receiver With ±15-kV IEC ESD Protection
- Manufacturer
- TI
- Manufacturer part #
- MAX3232EIDBR
- Store part #
- C117005
- Package / case
- SSOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,603 in stock
#C117005
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹94.75 | ₹94.75 |
| 10+ | ₹76.32 | ₹763.20 |
| 30+ | ₹67.00 | ₹2,010.00 |
| 100+ | ₹57.89 | ₹5,789.00 |
| 500+ | ₹52.26 | ₹26,130.00 |
| 1,000+ | ₹49.44 | ₹49,440.00 |
1 × ₹94.75
₹94.75
excl. GST
₹111.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
MAX3232EIDBR
₹94.75 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 250Kbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Features
- Short-Circuit Protection
- Number of Receivers
- 2
- Quiescent Supply Current
- 0.3mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.1 g
Overview
The MAX3232E device consists of two line drivers, two-line receivers, and a dual charge-pump circuit with ±15-kV IEC ESD protection pin to pin (serial-port connection pins, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The devices operate at data signaling rates up to 250 kbit/s and a maximum of 30-V/μs driver output slew rate.
Applications
- Battery-Powered Systems
- Notebooks
- Laptops
- Palmtop PCs
- Hand-Held Equipment
Key features
- ESD Protection for RS-232 Bus Pins ±15 kV (HBM), ±8 kV (IEC61000-4-2, Contact Discharge), ±15 kV (IEC61000-4-2, Air-Gap Discharge)
- Meets or Exceeds the Requirements of TIA/EIA 232-F and ITU V.28 Standards
- Operates With 3-V to 5.5-V Vcc Supply
- Operates up to 250 kbit/s
- Two Drivers and Two Receivers
- Low Supply Current: 300 μA (Typical)
- External Capacitors: 4×0.1 μF
- Accepts 5-V Logic Input With 3.3-V Supply
- Pin Compatible to Alternative High-Speed Devices (1 Mbit/s)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP3232EBEA-L/TR#C2671951MaxLinear · SSOP-16 | MaxLinear | SSOP-16 | 8,222 | ₹82.61 · 8,222 in stock | View |
 | SP3232EEA-L/TR#C11124MaxLinear · SSOP-16-208mil | MaxLinear | SSOP-16-208mil | 4 | ₹50.74 · 4 in stock | View |
 | GM3232EBA#C17701311GATEMODE · SSOP-16-208mil | GATEMODE | SSOP-16-208mil | 415 | ₹39.94 · 415 in stock | View |
 | SN65C3232EDBR#C2671023TI · SSOP-16-208mil | TI | SSOP-16-208mil | 19 | ₹239.03 · 19 in stock | View |
 | TRSF3232EIDBR#C2671331TI · SSOP-16-208mil | TI | SSOP-16-208mil | 16 | ₹916.01 · 16 in stock | View |
