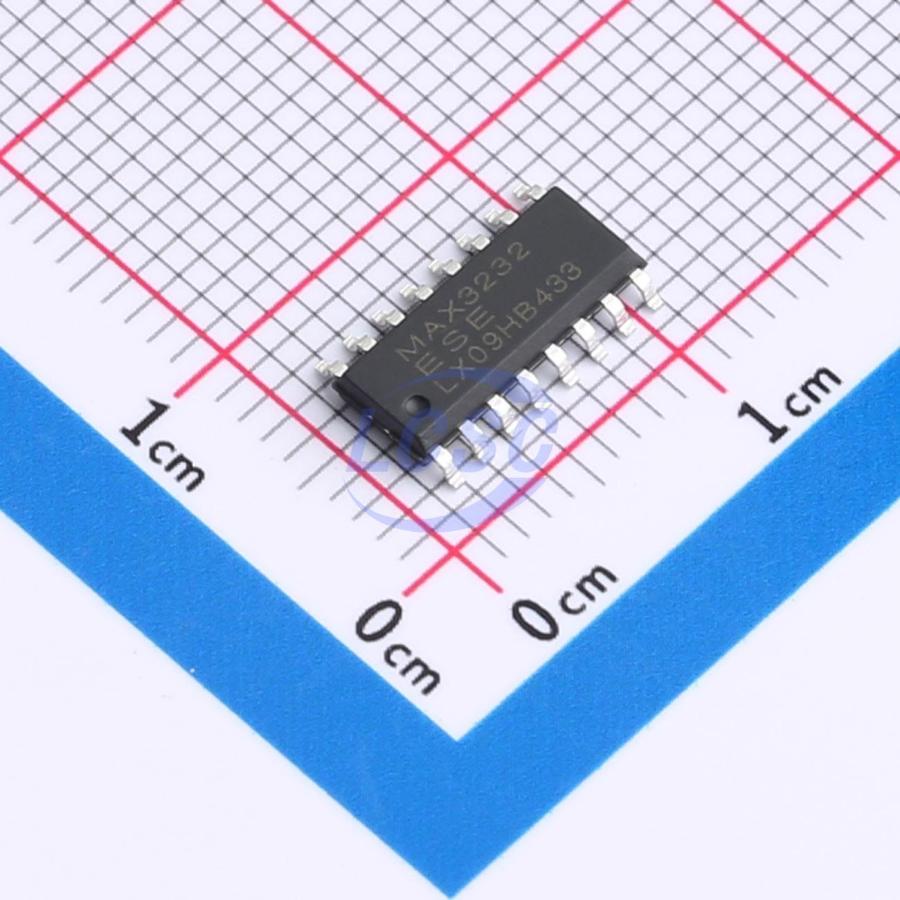

MAX3232ESE(LX)
Transceiver 3V~5.5V 250Kbps SOP-16 Drivers, Receivers, Transceivers
SOP-16RoHSActive
MAX3232(LX) 3V～5.5V Single Supply, Dual 250Kbps RS-232 Transceiver
- Manufacturer
- lingxingic
- Manufacturer part #
- MAX3232ESE(LX)
- Store part #
- C41430944
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,050 in stock
#C41430944
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.23 | ₹201.15 |
| 50+ | ₹32.12 | ₹1,606.00 |
| 150+ | ₹28.64 | ₹4,296.00 |
| 500+ | ₹24.30 | ₹12,150.00 |
| 2,500+ | ₹22.57 | ₹56,425.00 |
| 5,000+ | ₹21.42 | ₹1,07,100.00 |
5 × ₹40.23
₹201.15
excl. GST
₹237.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
MAX3232ESE(LX)
₹201.15 for 5 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 250Kbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Features
- Under-voltage lockout
- Number of Receivers
- 2
- Quiescent Supply Current
- 1mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.242 g
Overview
MAX3232 is a dual-channel, full-duplex RS-232 transceiver operating from a 3V to 5.5V supply.
Key features
- Supply voltage range: 3V~5.5V
- Dual channel
- Data rate: 250Kbps
- Undervoltage protection
- Overvoltage protection driver
- Charge pump requires 4 external 0.2uF capacitors (C1~C4)
- Bus pin protection: ±15kV HBM
- Operating temperature range: -40~+85°C
- Package: SOP16/SSOP16/TSSOP16
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX232ESE(LX)#C32710634lingxingic · SOP-16 | lingxingic | SOP-16 | 775 | ₹38.99 · 775 in stock | View |
 | MAX3232EIDR(LX)#C45384749lingxingic · SOP-16 | lingxingic | SOP-16 | 4,020 | ₹35.13 · 4,020 in stock | View |
 | SP3232EEN(LX)#C45384748lingxingic · SOP-16 | lingxingic | SOP-16 | 6,535 | ₹30.57 · 6,535 in stock | View |
