lingxingicDatasheet (PDF)

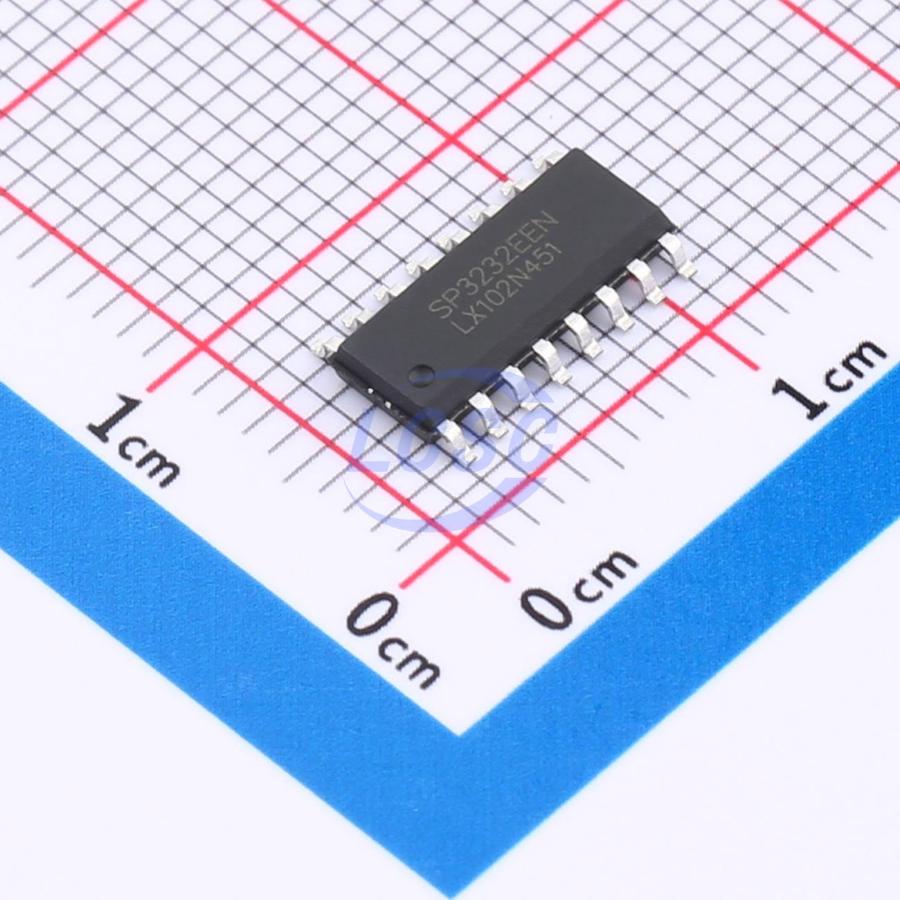

SP3232EEN(LX)
Transceiver 3V~5.5V 250Kbps SOP-16 Drivers, Receivers, Transceivers
SOP-16RoHSActive
Single-supply dual-channel RS-232 transceiver
- Manufacturer
- lingxingic
- Manufacturer part #
- SP3232EEN(LX)
- Store part #
- C45384748
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,555 in stock
#C45384748
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.57 | ₹152.85 |
| 50+ | ₹23.95 | ₹1,197.50 |
| 150+ | ₹21.09 | ₹3,163.50 |
| 500+ | ₹17.54 | ₹8,770.00 |
| 2,500+ | ₹15.97 | ₹39,925.00 |
| 4,000+ | ₹15.02 | ₹60,080.00 |
5 × ₹30.57
₹152.85
excl. GST
₹180.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SP3232EEN(LX)
₹152.85 for 5 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 250Kbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Features
- Under-voltage lockout;Short-Circuit Protection
- Number of Receivers
- 2
- Quiescent Supply Current
- 1.5mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.195 g
Overview
SP3232 is a dual-channel, full-duplex RS-232 transceiver operating from a 3V to 5.5V supply.
Key features
- Supply voltage range: 3V～5.5V
- Dual channel
- Data rate: 250Kbps
- Undervoltage protection
- Overvoltage protection driver
- Charge pump requires 4 external 0.2uF capacitors (C1～C4)
- Bus pin protection: ±15kV HBM protection
- Operating temperature range: -40～+85°C
- Package: SOP16/SSOP16/TSSOP16
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX3232EIDR(LX)#C45384749lingxingic · SOP-16 | lingxingic | SOP-16 | 4,140 | ₹35.13 · 4,140 in stock | View |
 | MAX232ESE(LX)#C32710634lingxingic · SOP-16 | lingxingic | SOP-16 | 775 | ₹38.99 · 775 in stock | View |
 | MAX3232ESE(LX)#C41430944lingxingic · SOP-16 | lingxingic | SOP-16 | 1,030 | ₹40.23 · 1,030 in stock | View |
