TDSEMICDatasheet (PDF)

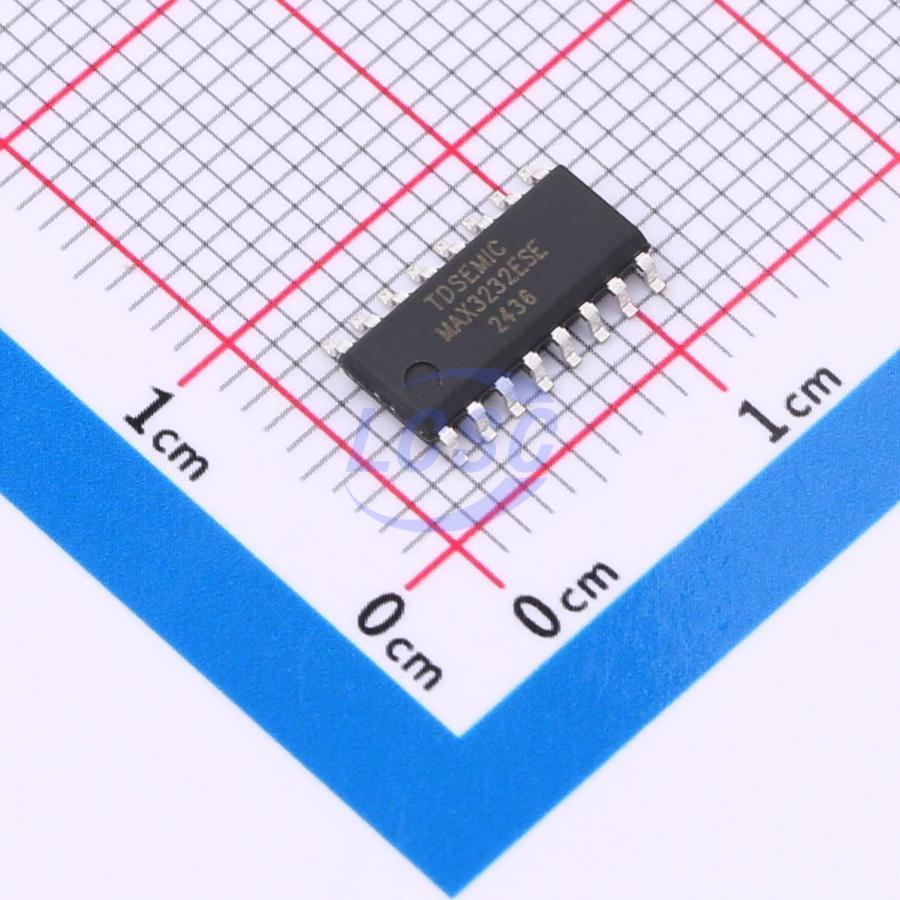

MAX3232ESE-TD
Transceiver 3V~5.5V 140Kbps SOP-16 Drivers, Receivers, Transceivers
SOP-16RoHSActive
Dual-channel RS-232 driver/receiver
- Manufacturer
- TDSEMIC
- Manufacturer part #
- MAX3232ESE-TD
- Store part #
- C42422016
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,880 in stock
#C42422016
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.00 | ₹240.00 |
| 50+ | ₹36.98 | ₹1,849.00 |
| 150+ | ₹32.27 | ₹4,840.50 |
| 500+ | ₹26.38 | ₹13,190.00 |
| 2,500+ | ₹23.76 | ₹59,400.00 |
| 5,000+ | ₹22.19 | ₹1,10,950.00 |
5 × ₹48.00
₹240.00
excl. GST
₹283.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX3232ESE-TD
₹240.00 for 5 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 140Kbps
- Operating Temperature
- -40℃~+85℃
- charge pump
- Yes
- Number of Drivers
- 2
- Features
- Automatic level shifting;Short-Circuit Protection
- Number of Receivers
- 2
- Quiescent Supply Current
- 14mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.231 g
Overview
MAX3232ESE is a dual driver/receiver compliant with the RS-232 standard, operating from a single supply voltage. The bipolar transmitter output voltage is generated by an internal voltage-doubling charge pump using four 1.0μF external capacitors. Designed for state-of-the-art high-performance computing systems, high-speed electronic equipment, and highly reliable data exchange between remote nodes. Input voltage levels are compatible with standard CMOS and TTL levels.
Applications
- Portable computers
- Battery-powered RS-232 systems
- Interface conversion
- Low-power modems
- Terminals
Key features
- Output voltage levels compatible with CMOS and TTL IC input levels
- Compliant with all EIA/TIA-232E and V.28/V.24 specifications
- Supply voltage range: 3.0 to 5.5V
- Low input current: 1.0μA at 25℃
- Output current: 30mA
- Static potential tolerance no less than 2kV
- SOP-16 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX3232CDR-TD#C42422011TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 935 | ₹40.95 · 935 in stock | View |
 | MAX3232CSE-TD#C42422012TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 2,440 | ₹32.29 · 2,440 in stock | View |
 | MAX3232ECSE-TD#C42422014TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 895 | ₹54.55 · 895 in stock | View |
 | MAX3232EESE-TD#C42422015TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 3,242 | ₹71.49 · 3,242 in stock | View |
 | MAX3232IDR-TD#C42422017TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 540 | ₹41.82 · 540 in stock | View |
