TDSEMICDatasheet (PDF)

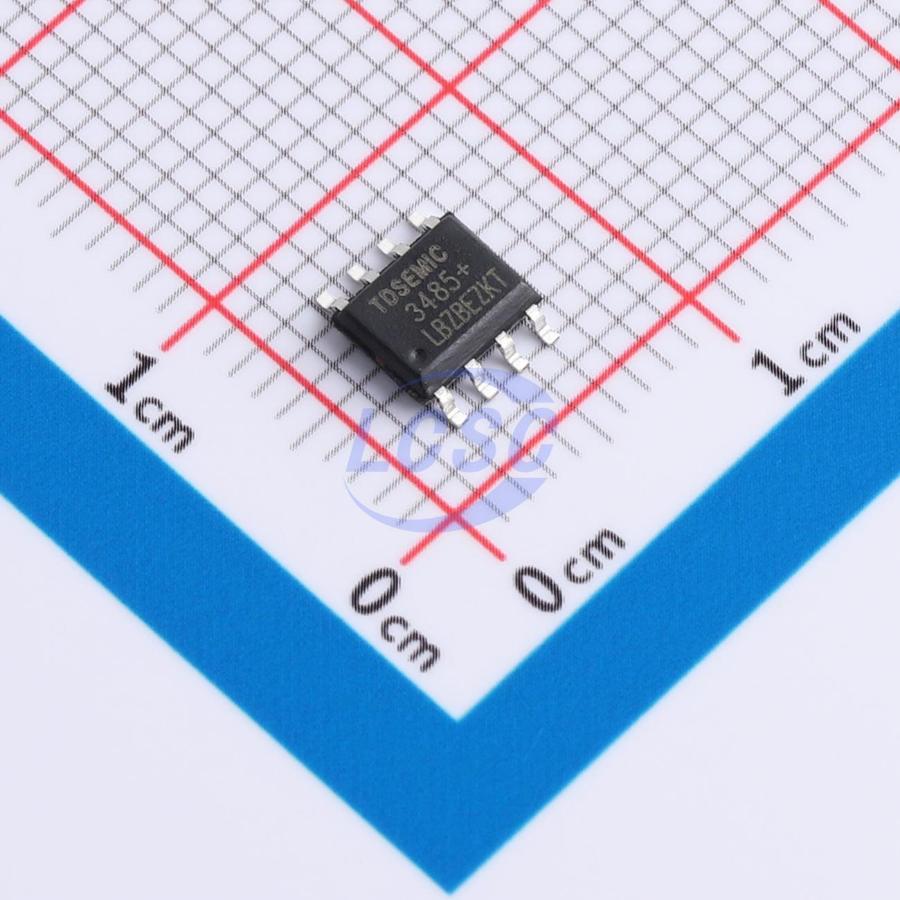

MAX3485CSA+TD
3V~5V Transceiver 10Mbps 256 SOP-8 Drivers, Receivers, Transceivers
SOP-8RoHSActive
- Manufacturer
- TDSEMIC
- Manufacturer part #
- MAX3485CSA+TD
- Store part #
- C53099932
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,435 in stock
#C53099932
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.64 | ₹228.20 |
| 50+ | ₹35.93 | ₹1,796.50 |
| 150+ | ₹31.77 | ₹4,765.50 |
| 500+ | ₹26.57 | ₹13,285.00 |
| 2,500+ | ₹24.25 | ₹60,625.00 |
| 5,000+ | ₹22.86 | ₹1,14,300.00 |
5 × ₹45.64
₹228.20
excl. GST
₹269.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX3485CSA+TD
₹228.20 for 5 + GST
Specifications
- Voltage - Supply
- 3V~5V
- Type
- Transceiver
- Data Rate
- 10Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 256
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection;Thermal shutdown protection;Low-power mode
- Number of Receivers
- 1
- Quiescent Supply Current
- 520uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.11 g
Overview
The MAX3485CSA+TD is a 3.3V-powered, half-duplex, low-power RS-485 transceiver fully compliant with TIA/EIA-485 standard requirements. The device integrates one driver and one receiver, each independently enable or disable. When both are disabled, the driver and receiver enter a high-impedance state. With a 1/8 unit load, up to 256 transceivers can be connected in parallel on the same bus, enabling error-free data transmission at up to 10Mbps. The operating voltage range is 3.0~5V, with built-in fail-safe, over-temperature protection, current-limiting protection, and overvoltage protection features.
Key features
- 3-5V supply voltage, half-duplex
- 1/8 unit load, supports up to 256 devices on the bus
- Driver short-circuit output protection
- Thermal shutdown protection
- Low-power shutdown mode
- Receiver open-circuit failsafe
- High noise immunity
- Integrated transient voltage suppression
- ±15kV HBM ESD
- Data transfer rate up to 10Mbps in electrically noisy environments
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP3485ECN+TD#C53099936TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 1,645 | ₹37.10 · 1,645 in stock | View |
 | SP3485EEN+TD#C53099937TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,920 | ₹32.53 · 2,920 in stock | View |
 | SP3485EN+TD#C53099938TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 4,355 | ₹47.23 · 4,355 in stock | View |
 | MAX3485EESA+TD#C53099934TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 1,660 | ₹41.67 · 1,660 in stock | View |
 | MAX3485ESA+TD#C53099935TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,460 | ₹40.27 · 2,460 in stock | View |
