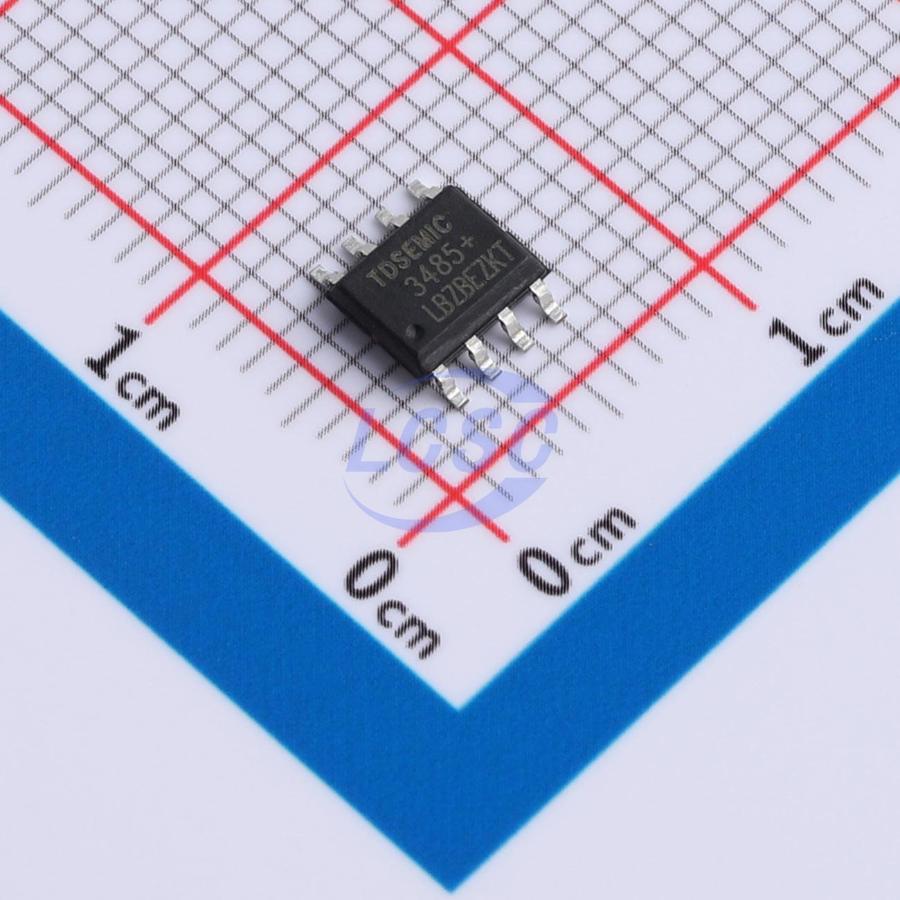

MAX3485EESA+TD
3V~5V Transceiver 10Mbps 256 SOP-8 Drivers, Receivers, Transceivers
SOP-8RoHSActive
- Manufacturer
- TDSEMIC
- Manufacturer part #
- MAX3485EESA+TD
- Store part #
- C53099934
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,660 in stock
#C53099934
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹41.67 | ₹41.67 |
| 10+ | ₹36.48 | ₹364.80 |
| 30+ | ₹34.08 | ₹1,022.40 |
| 100+ | ₹31.26 | ₹3,126.00 |
| 500+ | ₹29.95 | ₹14,975.00 |
| 1,000+ | ₹29.09 | ₹29,090.00 |
1 × ₹41.67
₹41.67
excl. GST
₹49.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX3485EESA+TD
₹41.67 for 1 + GST
Specifications
- Voltage - Supply
- 3V~5V
- Type
- Transceiver
- Data Rate
- 10Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 256
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection;Low-power mode;Thermal shutdown protection
- Number of Receivers
- 1
- Quiescent Supply Current
- 540uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.111 g
Overview
MAX3485EESA+TD is a 3.3V-powered, half-duplex, low-power RS-485 transceiver that fully complies with TIA/EIA-485 standard requirements. The device integrates one driver and one receiver, both of which can be independently enabled or disabled. When both are disabled, the driver and receiver enter a high-impedance state. With a 1/8 unit load, up to 256 MAX3485EESA+TD transceivers can be connected in parallel on the same communication bus, enabling error-free data transmission at up to 10Mbps. The operating voltage range is 3.0~5V, with built-in failsafe, overtemperature protection, current limiting, and overvoltage protection features.
Key features
- 3-5V supply voltage, half-duplex
- 1/8 unit load, supports up to 256 devices on the bus
- Driver short-circuit output protection
- Over-temperature protection
- Low-power shutdown
- Receiver open-circuit failsafe
- High noise immunity
- Integrated transient voltage suppression
- ±15kV HBM ESD protection
- Data transfer rate up to 10Mbps in electrically noisy environments
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX3485ESA+TD#C53099935TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,460 | ₹40.27 · 2,460 in stock | View |
 | MAX3485CSA+TD#C53099932TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,435 | ₹45.64 · 2,435 in stock | View |
 | SP3485ECN+TD#C53099936TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 1,645 | ₹37.10 · 1,645 in stock | View |
 | SP3485EEN+TD#C53099937TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,920 | ₹32.53 · 2,920 in stock | View |
 | SP3485EN+TD#C53099938TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 4,355 | ₹47.23 · 4,355 in stock | View |
