TDSEMICDatasheet (PDF)

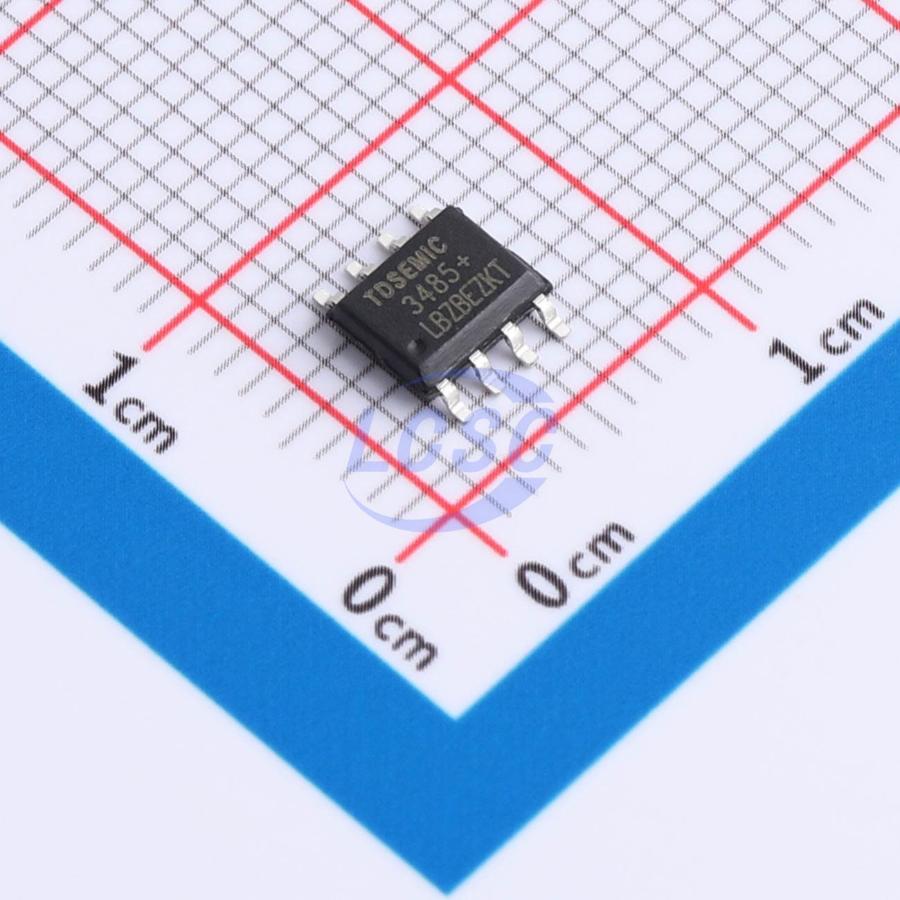

MAX3485ECSA+TD
3V~5V Transceiver 10Mbps 256 SOP-8 Drivers, Receivers, Transceivers
SOP-8RoHSActive
- Manufacturer
- TDSEMIC
- Manufacturer part #
- MAX3485ECSA+TD
- Store part #
- C53099933
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,230 in stock
#C53099933
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.32 | ₹64.32 |
| 10+ | ₹50.63 | ₹506.30 |
| 30+ | ₹44.98 | ₹1,349.40 |
| 100+ | ₹37.60 | ₹3,760.00 |
| 500+ | ₹34.33 | ₹17,165.00 |
| 1,000+ | ₹32.39 | ₹32,390.00 |
1 × ₹64.32
₹64.32
excl. GST
₹75.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX3485ECSA+TD
₹64.32 for 1 + GST
Specifications
- Voltage - Supply
- 3V~5V
- Type
- Transceiver
- Data Rate
- 10Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 256
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection;Thermal shutdown protection;Low-power mode
- Number of Receivers
- 1
- Quiescent Supply Current
- 120uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.11 g
Overview
MAX3485ECSA+TD is a 3.3V-powered, half-duplex, low-power RS-485 transceiver fully compliant with TIA/EIA-485 standards. The device integrates one driver and one receiver, both independently enable/disable controlled with high-impedance outputs when disabled. With 1/8 unit load, it supports up to 256 transceivers on a single bus, achieving error-free data transmission at up to 10Mbps. Operating voltage range is 3.0~5V, with integrated failsafe, overtemperature protection, current-limiting protection, and overvoltage protection.
Applications
- Bus networking
- Daisy-chain networking
- Bus port protection
- Smart meters
- Industrial control host
Key features
- 3-5V supply voltage, half-duplex operation
- 1/8 unit load, supports up to 256 devices on the bus
- Driver short-circuit output protection
- Over-temperature protection
- Low-power shutdown
- Receiver open-circuit failsafe
- High noise immunity
- Integrated transient voltage suppression
- ±15kV HBM ESD protection
- Data transmission rate up to 10Mbps in electrically noisy environments
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ST3485BDR+TD#C53099939TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 1,105 | ₹46.19 · 1,105 in stock | View |
 | ST3485CDR+TD#C53099940TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 545 | ₹45.11 · 545 in stock | View |
 | ST3485EBDR+TD#C53099941TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 1,605 | ₹40.59 · 1,605 in stock | View |
 | ST3485ECDR+TD#C53099942TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 195 | ₹47.72 · 195 in stock | View |
 | MAX3485CSA+TD#C53099932TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,435 | ₹45.64 · 2,435 in stock | View |
