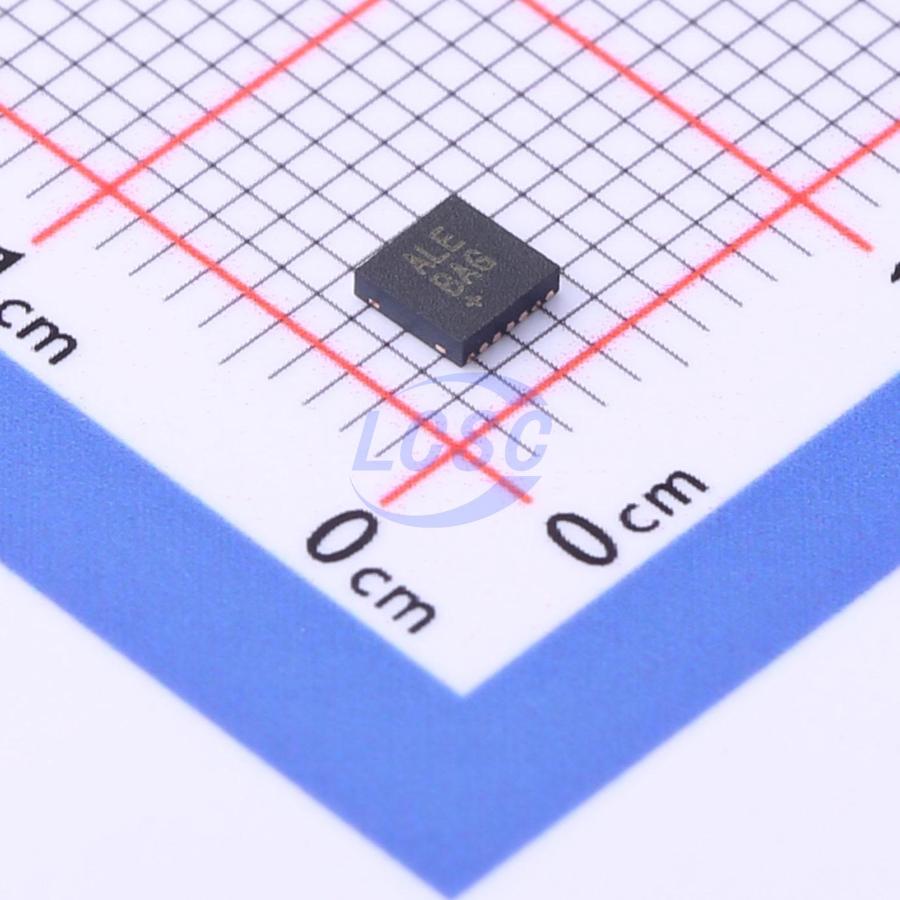

MAX38888ATD+T
Supercapacitor 600mA TDFN-14-EP(3x3) Battery Management RoHS
2.5V to 5.0V, 0.5A/2.5A Reversible Buck/Boost Regulator for Backup Power Applications
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX38888ATD+T
- Store part #
- C2931491
- Package / case
- TDFN-14-EP(3x3)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,503 in stock
#C2931491
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹450.02 | ₹450.02 |
| 10+ | ₹388.78 | ₹3,887.80 |
| 30+ | ₹352.29 | ₹10,568.70 |
| 100+ | ₹315.36 | ₹31,536.00 |
| 500+ | ₹298.43 | ₹1,49,215.00 |
| 1,000+ | ₹290.82 | ₹2,90,820.00 |
1 × ₹450.02
₹450.02
excl. GST
₹531.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX38888ATD+T
₹450.02 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Quiescent Current
- 2.5uA
- 0V Battery Charge
- Not supported
- Operating Voltage
- 2.5V~5V
- Type of Battery
- Supercapacitor
- Features
- Programmable charging current;Under-voltage lockout
- Charge Current - Max
- 600mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.063 g
Overview
The MAX38888 is a storage capacitor or capacitor bank backup regulator designed to efficiently transfer power between a storage element and a system supply rail in reversible buck and boost operations using the same inductor. When the main supply is present and above the minimum system supply voltage, the regulator operates in buck mode and charges the storage element at up to 500mA peak inductor current. Once the storage element is charged, the circuit draws only 2.5μA of current while it maintains the supercapacitor or other storage element in its ready state. When the main supply is removed, the regulator operates in boost mode and prevents the system from dropping below the minimum operating voltage, discharging the storage element at up to 2.5A peak inductor current. The MAX38888 is externally programmable for minimum and maximum voltage of the storage element, such as supercapacitor, minimum system voltage, and maximum charge and discharge currents. The internal DC-DC converter requires only a 1μH inductor.
Applications
- Handheld Industrial Equipment
- Portable Computers
- Portable Devices with a Removable Battery
Key features
- 2.5V to 5V System Output Voltage
- 0.8V to 4.5V Cap Voltage Range
- Up to 2.5A Peak Inductor Discharge Current
- Programmable Voltage and Current Thresholds
- ±2% Threshold Accuracy
- Up to 95% Efficiency, Charge or Discharge
- 2.5μA Ready Quiescent Current
- Small Solution Size
- 3mm x 3mm x 0.75mm TDFN Package
