MAXIMDatasheet (PDF)

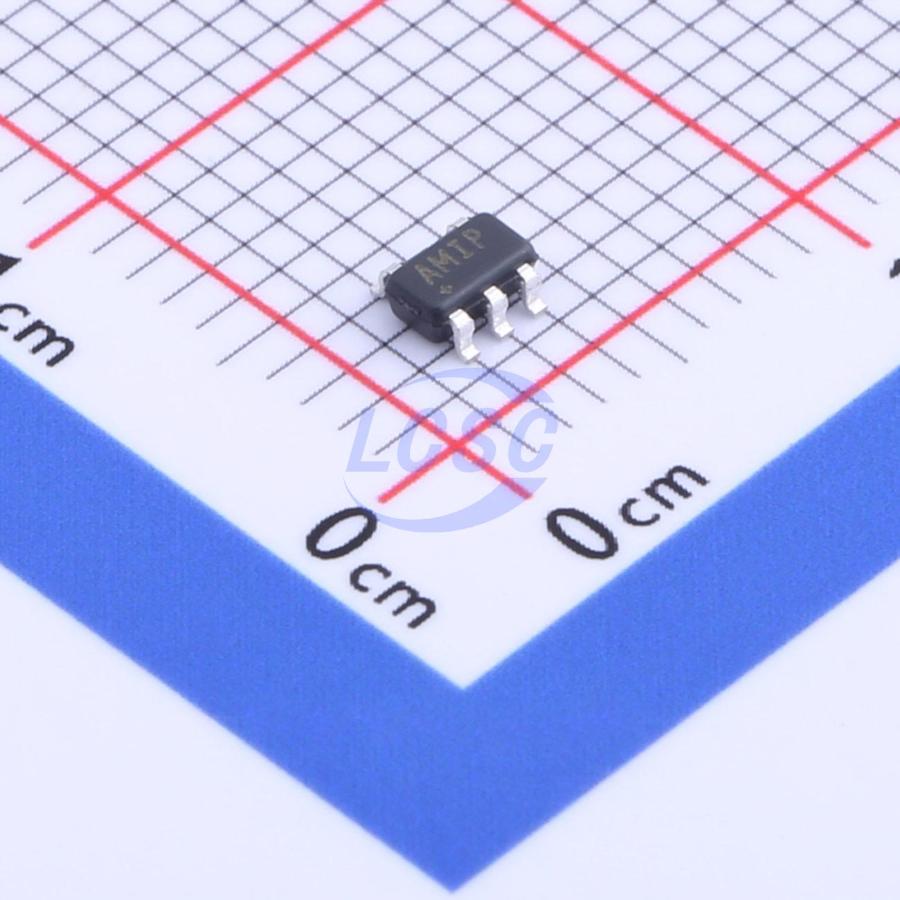

MAX40200AUK+T
350mV 6V 1 SOT-23-5 OR Controllers, Ideal Diodes RoHS
SOT-23-5ROHS3 CompliantActive
Ultra-Tiny Micropower, 1A Ideal Diode with Ultra-Low Voltage Drop
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX40200AUK+T
- Store part #
- C2649430
- Package / case
- SOT-23-5
- Category
- OR Controllers, Ideal Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,184 in stock
#C2649430
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹88.79 | ₹88.79 |
| 10+ | ₹72.55 | ₹725.50 |
| 30+ | ₹64.43 | ₹1,932.90 |
| 100+ | ₹56.31 | ₹5,631.00 |
| 500+ | ₹45.84 | ₹22,920.00 |
| 1,000+ | ₹43.32 | ₹43,320.00 |
1 × ₹88.79
₹88.79
excl. GST
₹104.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX40200AUK+T
₹88.79 for 1 + GST
Specifications
- Quiescent Current
- 7uA
- Operating temperature
- -40℃~+125℃
- FET Type
- Integrated FET
- Voltage - Forward(Vf@If)
- 350mV
- Input Voltage (Vin)
- 1.5V~5.5V
- Voltage - DC Reverse(Vr)
- 6V
- Function
- Reverse current blocking;Over temperature protection;With enable
- Number of Channels
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.045 g
Overview
The MAX40200 is an ideal diode current-switch that drops so little voltage that it approaches an order of magnitude better than Schottky diodes. When forward-biased and enabled, the MAX40200 conducts with as little as 85mV of voltage drop while carrying currents as high as 1A. Typical voltage drop is 43mV at 500mA, with the voltage drop increasing linearly at higher currents. The MAX40200 thermally protects itself, and any downstream circuitry, from overtemperature conditions. When disabled (EN = Low), the MAX40200 blocks voltages up to 6V in either direction, making it suitable for most low-voltage, portable electronic devices. The MAX40200 operates from a supply voltage of 1.5V to 5.5V. The MAX40200 is available in a tiny, 0.73mm×0.73mm, 4-bump wafer-level package (WLP), with a 0.35mm bump pitch and only 0.5mm high and 5-pin SOT - 23 package. The MAX40200 operates over the extended -40°C to +125°C temperature range.
Applications
- Notebook and Tablet Computers
- Portable Media Players
- Cellular Phones
- Portable/Wearable Medical Devices
- Electronic Toys
- USB - Powered Peripherals
Key features
- Save Critical Voltage Drop in Portable Application: Drops Less Than 43mV at 500mA; 85mV at 1A
- Longer Battery Life: Low Leakage When Reverse - Biased: 70nA (Typ), 1.5μA (Max); Low Supply Quiescent Current: 7μA (Typ), 18μA (Max)
- Saves Space Over Larger Schottky Diodes: Tiny 0.73mm×0.73mm 4 - bump WLP SOT23 - 5 Package
- Supply Voltage Range 1.5V to 5.5V
- Thermally Self - Protecting -40°C to +125°C Temperature Range
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX40203AUK+T#C2653639MAXIM · SOT-23-5 | MAXIM | SOT-23-5 | 34,220 | ₹74.24 · 34,220 in stock | View |
