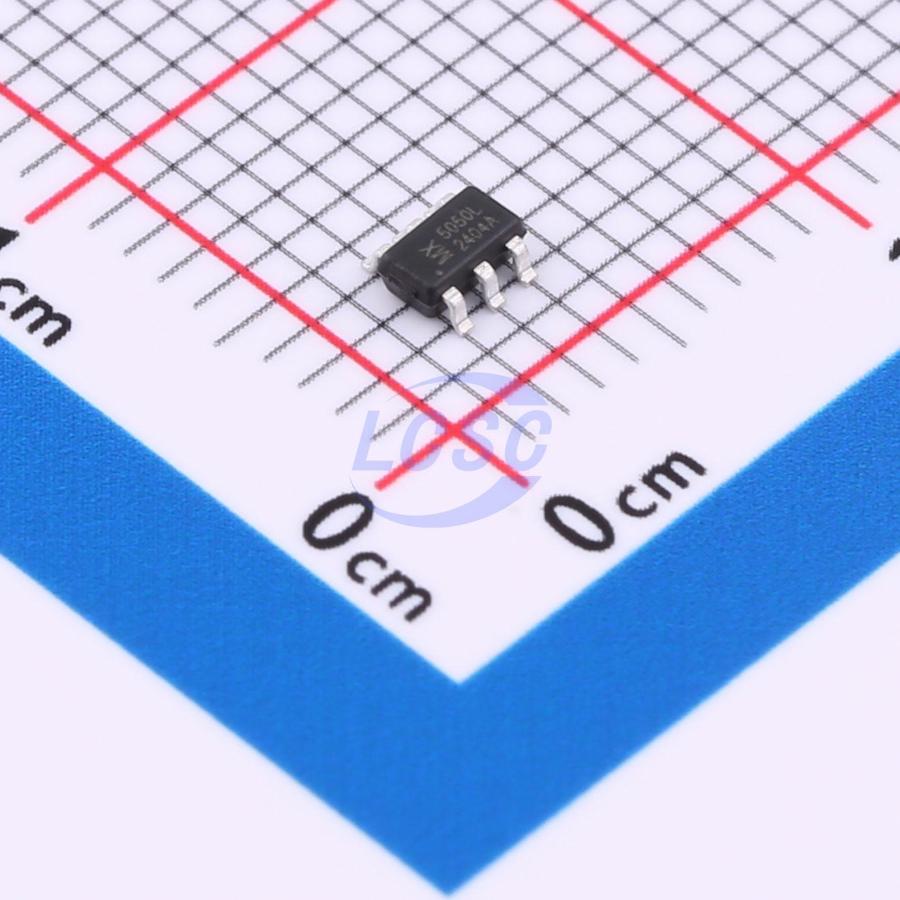

MX5050L
60mV 1 2A SOT-23-6L OR Controllers, Ideal Diodes RoHS
SOT-23-6LROHS CompliantActive
High-Side OR-ing FET Controller
- Manufacturer
- Wuxi Maxinmicro
- Manufacturer part #
- MX5050L
- Store part #
- C22363480
- Package / case
- SOT-23-6L
- Category
- OR Controllers, Ideal Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12,362 in stock
#C22363480
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.61 | ₹63.61 |
| 10+ | ₹48.63 | ₹486.30 |
| 30+ | ₹42.12 | ₹1,263.60 |
| 100+ | ₹34.09 | ₹3,409.00 |
| 500+ | ₹32.14 | ₹16,070.00 |
| 1,000+ | ₹29.97 | ₹29,970.00 |
1 × ₹63.61
₹63.61
excl. GST
₹75.06 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MX5050L
₹63.61 for 1 + GST
Specifications
- Quiescent Current
- 45uA
- Operating temperature
- -40℃~+125℃
- FET Type
- External FET
- Voltage - Forward(Vf@If)
- 60mV
- Input Voltage (Vin)
- 1V~40V
- Gate Drive Voltage
- 14V
- Function
- Reverse current blocking;With enable
- Number of Channels
- 1
- Current - Output Low(IOL)
- 2A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.049 g
Overview
The MX5050L high-side ideal diode controller works with an external MOSFET to function as an ideal diode rectifier when connected in series with a power supply. This ideal diode controller enables the MOSFET to replace the reverse-blocking diode in the main circuit, thereby reducing power dissipation and voltage drop. The MX5050L controller provides charge pump gate drive for an external N-channel MOSFET and a fast-response comparator, turning off the MOSFET when current reverses. The MX5050L supports supply voltages from 5V to 40V; when the input voltage is between 1V and 4V, VS requires an additional supply of 5V or above. Compared to the MX5050T, the MX5050L features lower forward turn-on threshold and reverse turn-off threshold voltages Vsd(rev) and Vsd(reg), making it easier to drive the external MOSFET into full conduction and achieve faster turn-off.
Applications
- Active OR-ing for redundant (N+1) power supplies
Key features
- Wide input voltage range VIN: 1V to 40V (VBIAS required when VIN < 5V)
- 650V transient voltage
- Charge pump gate driver for external N-channel MOSFET
- Fast response to current reversal
- 2A peak gate turn-off current
- Ultra-low VDS turn-off voltage for reduced turn-off time
- SOT23-6L package
