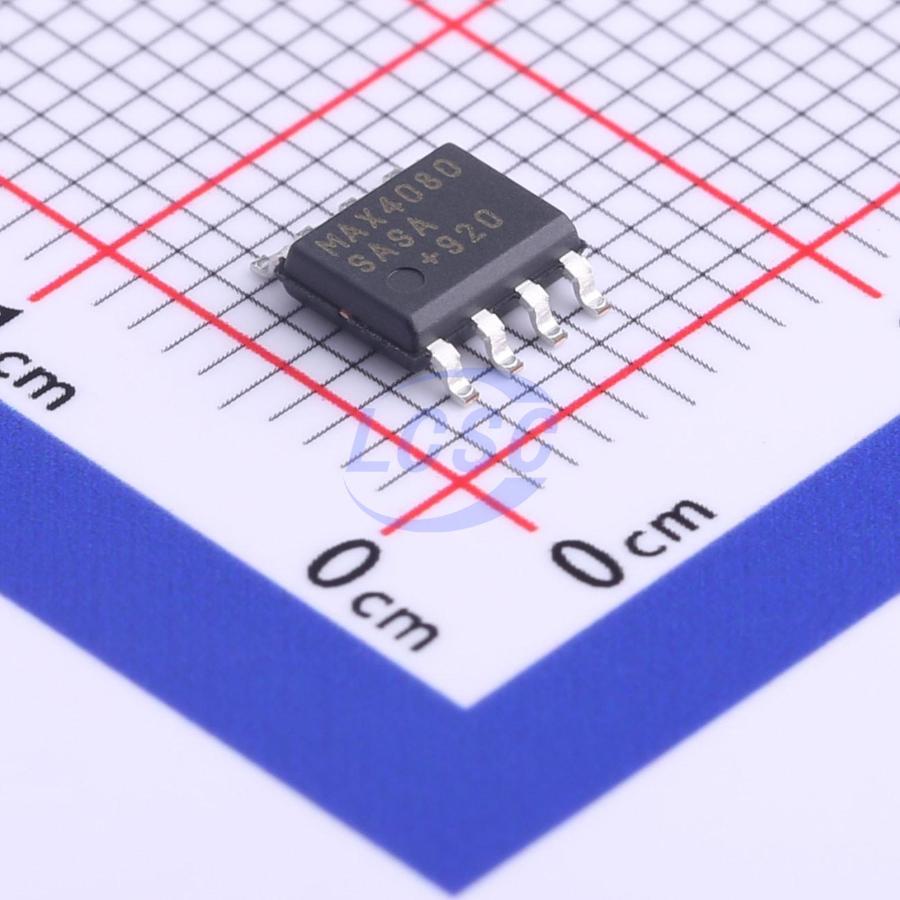

76V, High-Side, Current-Sense Amplifiers with Voltage Output

Manufacturer: MAXIM
Manufacturer part #: MAX4080SASA+T
Store part #: C16945
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,280 in stock

#C16945

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹281.48	₹281.48
10+	₹239.13	₹2,391.30
30+	₹212.42	₹6,372.60
100+	₹185.27	₹18,527.00
500+	₹154.86	₹77,430.00
1,000+	₹149.43	₹1,49,430.00

Quantity (min 1)

1 × ₹281.48

₹281.48

excl. GST

₹332.15 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

MAX4080SASA+T

₹281.48 for 1 + GST

Specifications

Number of Channels: 1
Vos - Input Offset Voltage: 100uV
Vcm - Common Mode Voltage: 4.5V~76V
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 100dB
Ib - Input Bias Current: 12uA
-3dB Bandwidth: 250kHz
Quiescent Current: 75uA
Gain: 60V/V
Features: High-side detection
Differential Voltage: ±40V
Single Supply: 4.5V~76V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.219 g

Overview

The MAX4080/MAX4081 are high-side, current-sense amplifiers with an input voltage range that extends from 4.5V to 76V making them ideal for telecom, automotive, backplane, and other systems where high-voltage current monitoring is critical. The MAX4080 is designed for unidirectional current-sense applications and the MAX4081 allows bidirectional current sensing. The MAX4081 single output pin continuously monitors the transition from charge to discharge and avoids the need for a separate polarity output. The MAX4081 requires an external reference to set the zero-current output level (V SENSE = 0V). The charging current is represented by an output voltage from VREF to VCC, while discharge current is given from VREF to GND. For maximum versatility, the 76V input voltage range applies independently to both supply voltage (VCC) and common-mode input voltage (V RS+). High-side current monitoring does not interfere with the ground path of the load being measured, making the MAX4080/MAX4081 particularly useful in a wide range of high-voltage systems. The combination of three gain versions (5V/V, 20V/V, 60V/V = F, T, S suffix) and a user-selectable, external sense resistor sets the full-scale current reading and its proportional output voltage. The MAX4080/MAX4081 offer a high level of integration, resulting in a simple, accurate, and compact current-sense solution. The MAX4080/MAX4081 operate from a 4.5V to 76V single supply and draw only 75μA of supply current. These devices are specified over the automotive operating temperature range (-40°C to +125°C) and are available in a space-saving 8-pin µMAX or SO package.

Applications

Automotive (12V, 24V, or 42V Batteries)
48V Telecom and Backplane Current Measurement
Bidirectional Motor Control
Power-Management Systems
Avalanche Photodiode and PIN-Diode Current Monitoring
General System/Board-Level Current Sensing
Precision High-Voltage Current Sources

Key features

Wide 4.5V to 76V Input Common-Mode Range
Bidirectional or Unidirectional ISENSE
Low-Cost, Compact, Current-Sense Solution
Three Gain Versions Available 5V/V (MAX4080F/MAX4081F) 20V/V (MAX4080T/MAX4081T) 60V/V (MAX4080S/MAX4081S)
±0.1% Full-Scale Accuracy
Low 100μV Input Offset Voltage
Independent Operating Supply Voltage
75μA Supply Current (MAX4080)
Reference Input for Bidirectional OUT (MAX4081)
Available in a Space-Saving 8-Pin µMAX Package
