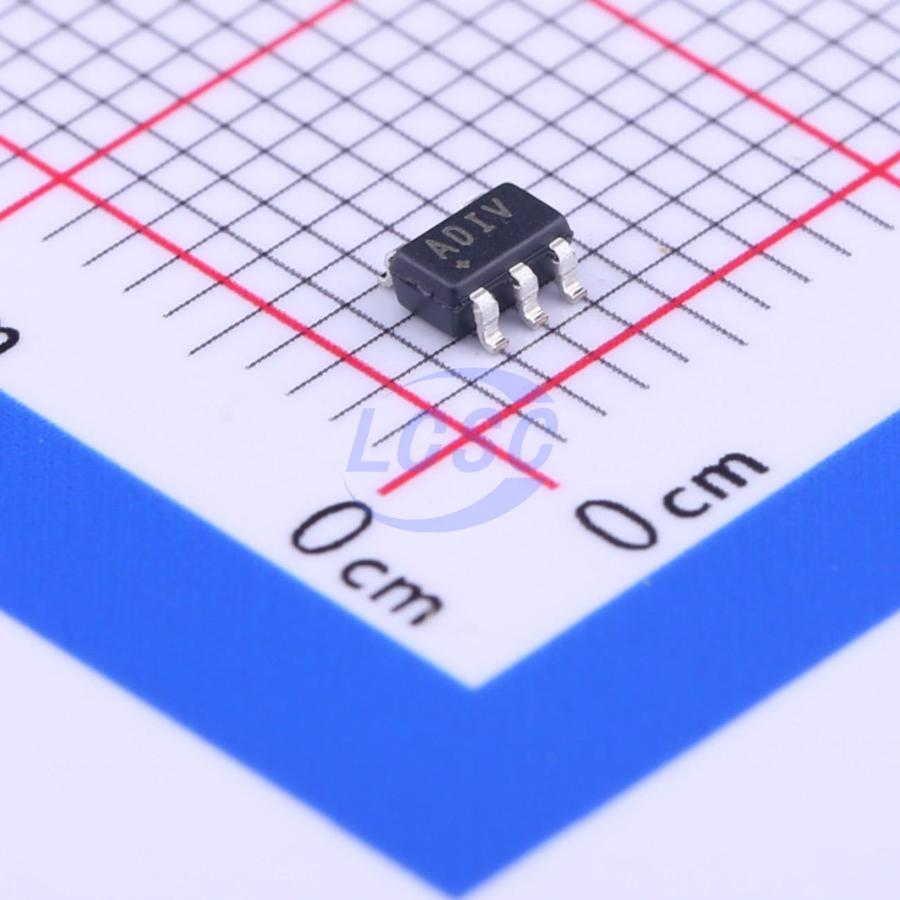

MAX4372FEUK+T

The MAX4372 low-cost, precision, high-side current-sense amplifier is available in a tiny, space-saving SOT23 5-pin package. Offered in three gain versions (T = 20V/V, F = 50V/V, and H = 100V/V), this device operates from a single 2.7V to 28V supply and consumes only 30μA. It features a voltage output that eliminates the need for gain-setting resistors and is ideal for today’s notebook computers, cell phones, and other systems where battery/DC current monitoring is critical. High-side current monitoring is especially useful in battery-powered systems since it does not interfere with the ground path of the battery charger. The input common-mode range of 0 to 28V is independent of the supply voltage and ensures that the current-sense feedback remains viable even when connected to a 2-cell battery pack in deep discharge. The user can set the full-scale current reading by choosing the device (T, F, or H) with the desired voltage gain and selecting the appropriate external sense resistor. This capability offers a high level of integration and flexibility, resulting in a simple and compact current-sense solution. For higher bandwidth applications, refer to the MAX4173T/F/H data sheet.

Applications

• Power-Management Systems
• General-System/Board-Level Current Monitoring
• Notebook Computers
• Portable/Battery-Powered Systems
• Smart-Battery Packs/Chargers
• Cell Phones
• Precision-Current Sources

Key features

• Low-Cost, Compact Current-Sense Solution
• 30μA Supply Current
• 2.7V to 28V Operating Supply
• 0.18% Full-Scale Accuracy
• 0.3mV Input Offset Voltage
• Low 1.5Ω Output Impedance
• Three Gain Versions Available: 20V/V, 50V/V, 100V/V
• High Accuracy
• +2V to +28V Common-Mode Range, Functional Down to 0V, Independent of Supply Voltage
• Available in a Space-Saving 5-Pin SOT23 Package and 3x2 UCSP (1mm x 1.5mm) Package
