MAXIM

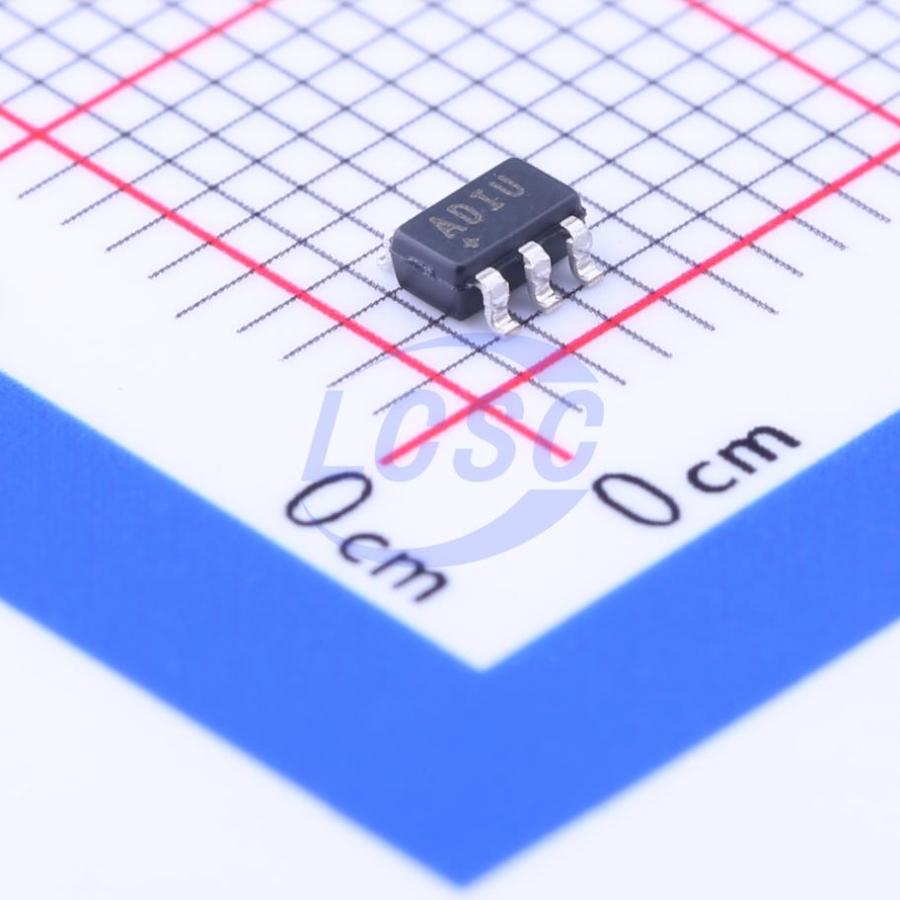

MAX4372TEUK+T

30uA 20V/V 1 0V~28V 300uV 1uA 85dB SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS3 CompliantActive

Low-Cost, UCSP/SOT23, Micropower, High-Side Current-Sense Amplifier with Voltage Output

Manufacturer: MAXIM
Manufacturer part #: MAX4372TEUK+T
Store part #: C78703
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

12,100 in stock

#C78703

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹217.69	₹217.69
10+	₹185.82	₹1,858.20
30+	₹168.47	₹5,054.10
100+	₹139.21	₹13,921.00
500+	₹130.32	₹65,160.00
1,000+	₹126.41	₹1,26,410.00

Quantity (min 1)

1 × ₹217.69

₹217.69

excl. GST

₹256.87 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

MAX4372TEUK+T

₹217.69 for 1 + GST

Specifications

Quiescent Current: 30uA
Gain: 20V/V
Number of Channels: 1
Features: High-side detection;External shunt;Analog output interface
Vcm - Common Mode Voltage: 0V~28V
Vos - Input Offset Voltage: 300uV
Differential Voltage: ±0.3V
Operating Temperature: -40℃~+85℃
Ib - Input Bias Current: 1uA
Common Mode Rejection Ratio(CMRR): 85dB
Single Supply: 2.7V~28V
-3dB Bandwidth: 275kHz

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.043 g

Overview

The MAX4372 low-cost, precision, high-side current-sense amplifier is available in a tiny, space-saving SOT23 5-pin package. Offered in three gain versions (T = 20V/V, F = 50V/V, and H = 100V/V), this device operates from a single 2.7V to 28V supply and consumes only 30μA. It features a voltage output that eliminates the need for gain-setting resistors and is ideal for today’s notebook computers, cell phones, and other systems where battery/DC current monitoring is critical. High-side current monitoring is especially useful in battery-powered systems since it does not interfere with the ground path of the battery charger. The input common-mode range of 0 to 28V is independent of the supply voltage and ensures that the current-sense feedback remains viable even when connected to a 2-cell battery pack in deep discharge. The user can set the full-scale current reading by choosing the device (T, F, or H) with the desired voltage gain and selecting the appropriate external sense resistor. This capability offers a high level of integration and flexibility, resulting in a simple and compact current-sense solution. For higher bandwidth applications, refer to the MAX4173T/F/H data sheet.

Applications

Power-Management Systems
General-System/Board-Level Current Monitoring
Notebook Computers
Portable/Battery-Powered Systems
Smart-Battery Packs/Chargers
Cell Phones
Precision-Current Sources

Key features

Low-Cost, Compact Current-Sense Solution
30μA Supply Current
2.7V to 28V Operating Supply
0.18% Full-Scale Accuracy
0.3mV Input Offset Voltage
Low 1.5Ω Output Impedance
Three Gain Versions Available: 20V/V, 50V/V, 100V/V
High Accuracy
+2V to +28V Common-Mode Range, Functional Down to 0V, Independent of Supply Voltage
Available in a Space-Saving 5-Pin SOT23 Package and 3x2 UCSP (1mm x 1.5mm) Package
