MAXIM

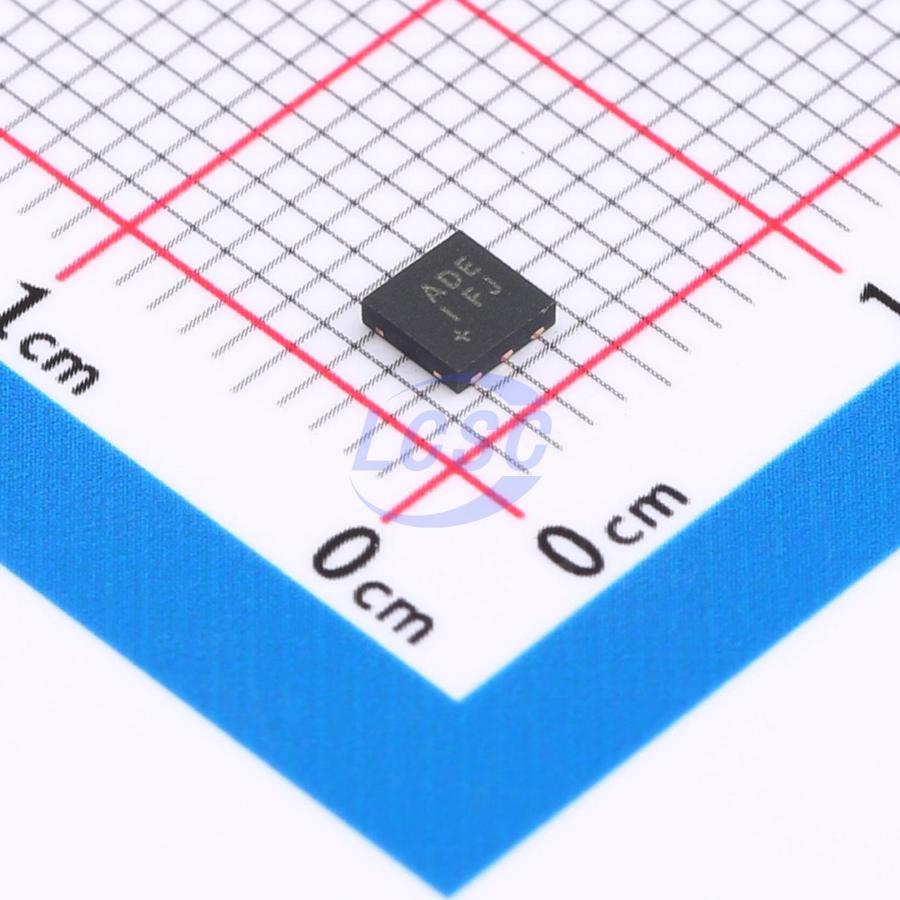

MAX4488ATT+T

28mA 1 70uV 10V/us 90dB 1pA 2.5mA 42MHz Rail-to-rail output TDFN-6(3x3) Instrumentation, Op Amps, Buffer Amps RoHS

TDFN-6(3x3)ROHS3 CompliantActive

SOT23, Low-Noise, Low-Distortion, Wide-Band, Rail-to-Rail Op Amps

Manufacturer: MAXIM
Manufacturer part #: MAX4488ATT+T
Store part #: C5668607
Package / case: TDFN-6(3x3)
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,517 in stock

#C5668607

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹222.46	₹222.46
10+	₹217.47	₹2,174.70
30+	₹214.22	₹6,426.60
100+	₹210.97	₹21,097.00

Quantity (min 1)

1 × ₹222.46

₹222.46

excl. GST

₹262.50 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

MAX4488ATT+T

₹222.46 for 1 + GST

Specifications

Output Current: 28mA
Number of Channels: 1
Vos - Input Offset Voltage: 70uV
Slew Rate: 10V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 90dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 750nV/℃
Quiescent Current: 2.5mA
Gain Bandwidth Product: 42MHz
Features: Enable/shutdown function;Decompensated stable
Input Voltage Noise Density: 4.5nV/√Hz@1kHz
Rail to Rail: Rail-to-rail output
Single Supply: 2.7V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.033 g

Overview

The MAX4475–MAX4478/MAX4488/MAX4489 wideband, low-noise, low-distortion operational amplifiers offer rail-to-rail outputs and single-supply operation down to 2.7V. They draw 2.2mA of quiescent supply current per amplifier while featuring ultra-low distortion (0.0002% THD+N), as well as low input voltage-noise density (4.5nV/√Hz) and low input current-noise density (0.5fA/√Hz). These features make the devices an ideal choice for applications that require low distortion and/or low noise. For power conservation, the MAX4475/MAX4488 offer a low-power shutdown mode that reduces supply current to 0.01μA and places the amplifiers’ outputs into a high-impedance state. These amplifiers have outputs which swing rail-to-rail and their input common-mode voltage range includes ground. The MAX4475–MAX4478 are unity-gain stable with a gain-bandwidth product of 10MHz. The MAX4488/4489 are internally compensated for gains of +5V/V or greater with a gain-bandwidth product of 42MHz. The single MAX4475/MAX4476/ MAX4488 are available in space-saving, 6-pin SOT23 and TDFN packages.
