TDSEMICDatasheet (PDF)

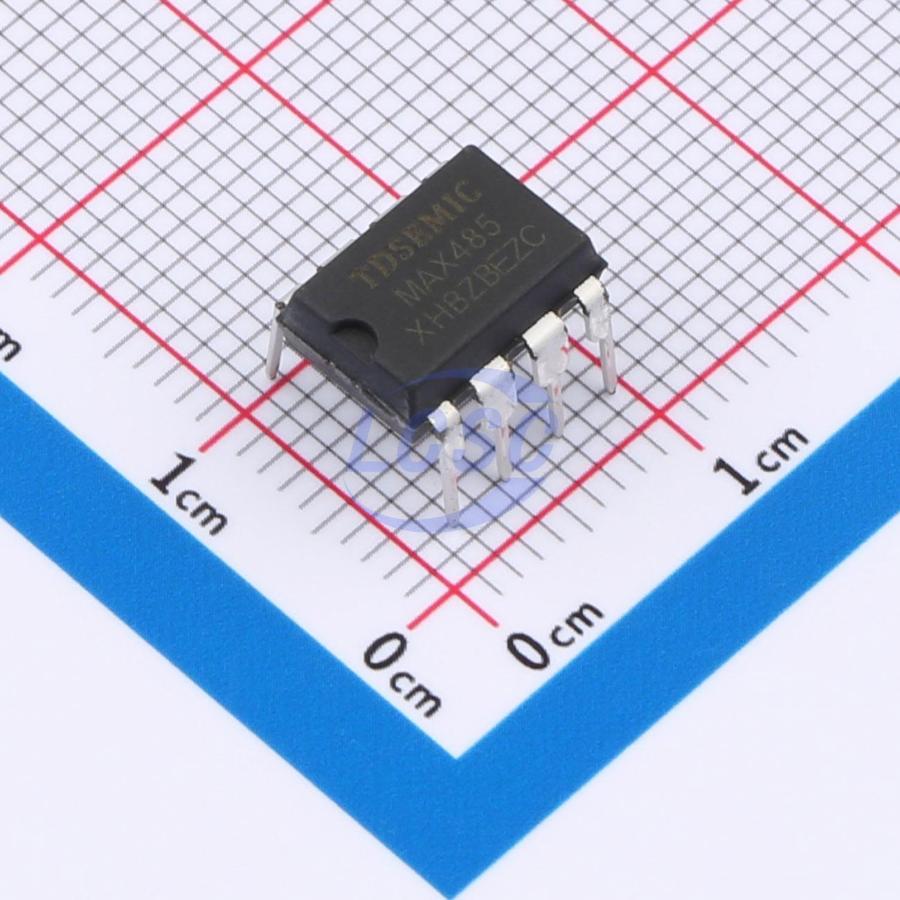

MAX485-TD
1/1 Transceiver Half RS422, RS485 DIP-8
DIP-8ROHS CompliantActive
Transceiver chips for RS-485 and RS-422 communication systems
- Manufacturer
- TDSEMIC
- Manufacturer part #
- MAX485-TD
- Store part #
- C47088808
- Package / case
- DIP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,260 in stock
#C47088808
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.13 | ₹225.65 |
| 50+ | ₹35.44 | ₹1,772.00 |
| 150+ | ₹31.29 | ₹4,693.50 |
| 500+ | ₹26.10 | ₹13,050.00 |
| 2,000+ | ₹23.80 | ₹47,600.00 |
| 4,000+ | ₹22.41 | ₹89,640.00 |
5 × ₹45.13
₹225.65
excl. GST
₹266.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
MAX485-TD
₹225.65 for 5 + GST
Specifications
- Voltage - Supply
- 5V
- Type
- Transceiver
- Data Rate
- 2.5Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 128
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown
- Number of Receivers
- 1
- Quiescent Supply Current
- 1.2mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.754 g
Overview
MAX485-TD is a transceiver IC designed for RS-485 and RS-422 communication systems. The HM485 supports data transfer rates up to 2.5Mbps for both transmission and reception. The 485 operates in half-duplex mode. In addition, the 485 features Driver Enable (DE) and Receiver Enable (RE) pins; when disabled, both driver and receiver outputs enter a high-impedance state. The MAX485-TD incorporates a failsafe function, ensuring the receiver output remains high when the input is open-circuit or short-circuit during receive mode.
Applications
- Low-power RS-485 transceiver
- Low-power RS-422 transceiver
- Level translation
- EMI-resistant transceiver
- Industrial control LAN
Key features
- ESD protection: ±1500V - Human Body Model (HBM)
- Three-state output half-duplex bus supports up to 128 transceivers
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN75176-TD#C47088807TDSEMIC · DIP-8 | TDSEMIC | DIP-8 | 745 | ₹25.90 · 745 in stock | View |
 | SN75LBC184-TD#C47088810TDSEMIC · DIP-8 | TDSEMIC | DIP-8 | 480 | ₹55.63 · 480 in stock | View |
 | SN65LBC184-TD#C47088811TDSEMIC · DIP-8 | TDSEMIC | DIP-8 | 1,015 | ₹44.66 · 1,015 in stock | View |
 | MAX487-TD#C47088812TDSEMIC · DIP-8 | TDSEMIC | DIP-8 | 1,375 | ₹31.41 · 1,375 in stock | View |
 | SN65176-TD#C47088813TDSEMIC · DIP-8 | TDSEMIC | DIP-8 | 950 | ₹26.72 · 950 in stock | View |
