TDSEMICDatasheet (PDF)

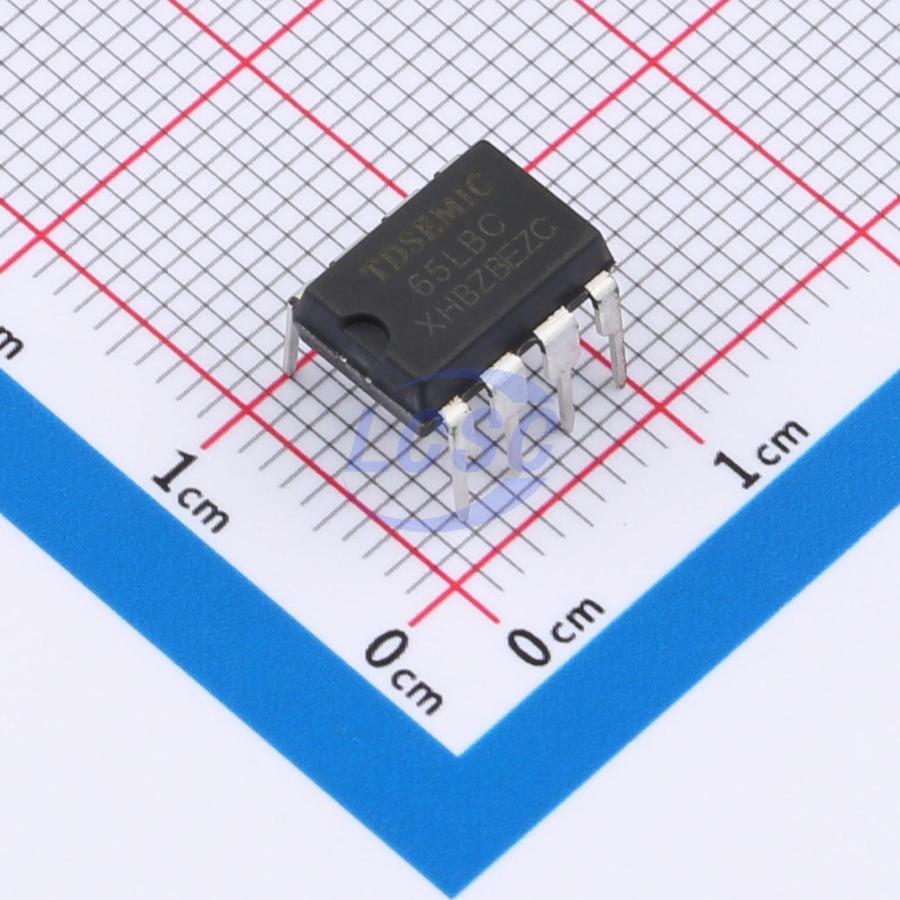

SN65LBC184-TD
1/1 Transceiver Half RS422, RS485 DIP-8
DIP-8ROHS CompliantActive
Transceiver chips for RS-485 and RS-422 communication systems
- Manufacturer
- TDSEMIC
- Manufacturer part #
- SN65LBC184-TD
- Store part #
- C47088811
- Package / case
- DIP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,015 in stock
#C47088811
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.66 | ₹223.30 |
| 50+ | ₹35.27 | ₹1,763.50 |
| 150+ | ₹31.25 | ₹4,687.50 |
| 500+ | ₹26.22 | ₹13,110.00 |
| 2,000+ | ₹23.97 | ₹47,940.00 |
| 4,000+ | ₹22.64 | ₹90,560.00 |
5 × ₹44.66
₹223.30
excl. GST
₹263.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
SN65LBC184-TD
₹223.30 for 5 + GST
Specifications
- Voltage - Supply
- 3.3V;5V
- Type
- Transceiver
- Data Rate
- 2.5Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 128
- ESD Protect
- ±1.5kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown
- Number of Receivers
- 1
- Quiescent Supply Current
- 1.6mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.767 g
Overview
The SN65LBC184-TD is a transceiver designed for RS-485 and RS-422 communication systems. The HM485 supports data transfer rates up to 2.5Mbps for both transmission and reception. The 485 operates in half-duplex mode. In addition, the 485 features Driver Enable (DE) and Receiver Enable (RE) pins; when disabled, both driver and receiver outputs are in a high-impedance state. The SN65LBC184-TD incorporates a failsafe function, ensuring the receiver output remains high when the input is open-circuited or short-circuited during receive mode.
Applications
- Low-power RS-485 transceiver
- Low-power RS-422 transceiver
- Level translation
- EMI-resistant transceiver
- Industrial control LAN
Key features
- HM485 data transfer rate up to 2.5Mbps
- Half-duplex RS-485
- Driver Enable (DE) and Receiver Enable (RE) pins; high-impedance driver and receiver outputs when disabled
- Fail-safe protection: open or shorted inputs in receive mode default receiver output to high
- ESD protection: ±1500V - Human Body Model (HBM)
- Tri-state output half-duplex bus supports up to 128 transceivers
