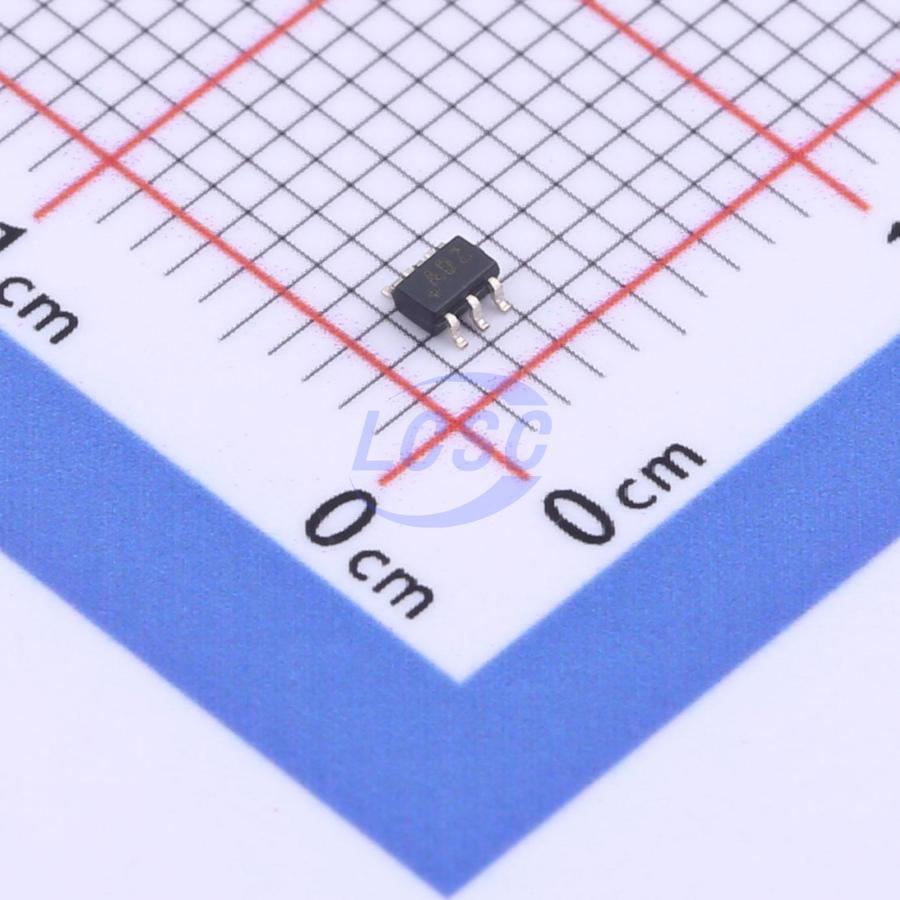

MAX9636AXT+T

55mA 1 2.2mV 900V/ms 77dB 50pA 36uA 1.5MHz Rail-to-Rail Input, Rail-to-Rail Output SC-70-6 Instrumentation, Op Amps, Buffer Amps RoHS

SC-70-6ROHS3 CompliantActive

Low-Power, Low-Noise, CMOS Rail-to-Rail I/O Op Amps

Manufacturer: MAXIM
Manufacturer part #: MAX9636AXT+T
Store part #: C2976351
Package / case: SC-70-6
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,300 in stock

#C2976351

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹158.81	₹158.81
10+	₹135.36	₹1,353.60
30+	₹123.62	₹3,708.60
100+	₹112.11	₹11,211.00
500+	₹97.12	₹48,560.00
1,000+	₹93.64	₹93,640.00

Quantity (min 1)

1 × ₹158.81

₹158.81

excl. GST

₹187.40 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

MAX9636AXT+T

₹158.81 for 1 + GST

Specifications

Output Current: 55mA
Number of Channels: 1
Vos - Input Offset Voltage: 2.2mV
Slew Rate: 900V/ms
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 77dB
Ib - Input Bias Current: 50pA
Input Offset Voltage Drift(Vos TC): 7uV/℃
Quiescent Current: 36uA
Gain Bandwidth Product: 1.5MHz
Features: Enable/shutdown function
Input Voltage Noise Density: 38nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.005 g

Overview

The MAX9636/MAX9637/MAX9638 are single-supply, CMOS input op amps featuring wide bandwidth at low quiescent current, making them suitable for a broad range of battery-powered applications such as portable medical instruments, portable media players, and smoke detectors. A combination of extremely low input bias currents, low input current noise and low input voltage noise allows interface to high-impedance sources such as photodiode and piezoelectric sensors. The ICs feature a maximized ratio of gain bandwidth (GBW) to supply current. The devices operate from a single 2.1V to 5.5V supply at a typical quiescent supply current of 36μA. For additional power conservation, the MAX9636 and MAX9638 offer a low-power shutdown mode that reduces supply current to 1μA and places the amplifiers’ outputs into a high-impedance state. The ICs are specified over the automotive operating temperature range (-40°C to +125°C). The single is offered in a space-saving, 6-pin SC70 package, while the dual is offered in tiny, 8-pin SC70 and 10-pin UTQFN packages.

Applications

Portable Medical Instruments
Piezoelectric Transducer Amplifiers
Smoke Detectors
Battery-Powered Devices
Transimpedance Amplifiers
Tablets

Key features

Ideal for Precision Transimpedance Amplifier Applications
Ultra-Low 0.1pA Bias Current
Wide 1.5MHz Bandwidth
Low Input Current-Noise Density: 0.9fA/√Hz
Extend Battery Life
Single-Supply Operation VDD = 2.1V to 5.5V
Low 36μA Quiescent Current
1μA Quiescent Current in Shutdown
Save Board Space
6 and 8-Pin SC70 and 10-Pin UTQFN Packages
