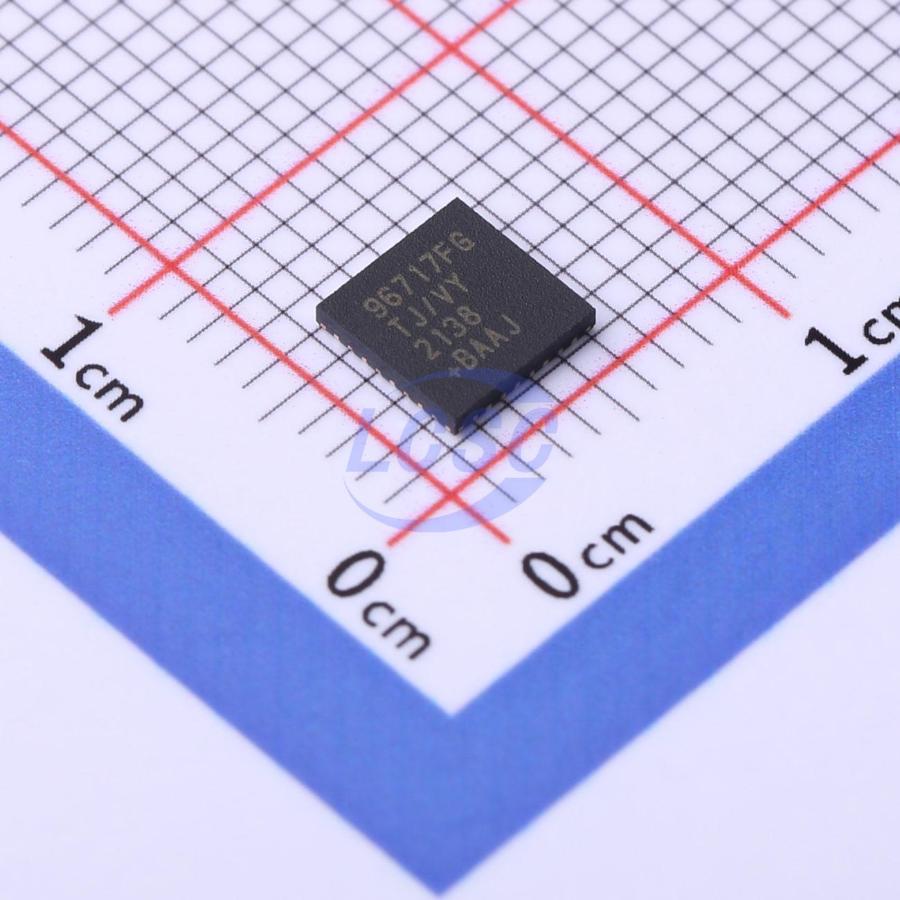

MAXIM

MAX96717FGTJ/VY+T

25MHz 3Gbps 4 Serializer 1.7V~3.6V TQFN-32-EP(5x5) Serializers, Deserializers RoHS

TQFN-32-EP(5x5)ROHS3 CompliantActive

The MAX96717F GMSL Serializer receives video from the MIPI CSI-2 interface and outputs it on the GMSL2 serial link.

Manufacturer: MAXIM
Manufacturer part #: MAX96717FGTJ/VY+T
Store part #: C2998684
Package / case: TQFN-32-EP(5x5)
Category: Serializers, Deserializers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,347 in stock

#C2998684

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹552.14	₹552.14
10+	₹527.82	₹5,278.20
30+	₹513.19	₹15,395.70
100+	₹498.56	₹49,856.00
500+	₹491.68	₹2,45,840.00
1,000+	₹488.66	₹4,88,660.00

Quantity (min 1)

1 × ₹552.14

₹552.14

excl. GST

₹651.53 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

MAX96717FGTJ/VY+T

₹552.14 for 1 + GST

Specifications

Output: GMSL
Clock Frequency: 25MHz
Input: CSI-2
Data Rate: 3Gbps
Number of ports: 4
Type: Serializer
Voltage - Supply: 1.7V~3.6V
Parallel Bit Count Per Channel: 4
Features: Adaptive receive equalization;Link status monitoring
Operating Temperature: -40℃~+105℃
Control Interface: I2C;UART

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.11 g

Overview

The MAX96717F GMSL serializer receives video on a MIPI CSI-2 interface and outputs it on a GMSL2 serial link transceiver. Simultaneously, it sends and receives bidirectional control channel data across the same GMSL2 link. GMSL2 data can be transported over Coaxial or Shielded-Twisted Pair (STP) cables. It operates at a fixed rate of 3Gbps in the forward direction and 187.5Mbps in the reverse direction. The device is programmed through a local I2C/UART interface or across the link from a matching deserializer. The MAX96717F includes two I2C/UART pass-through channels, flexible GPIO, SPI tunnel, a builtin ADC, temperature sensor, and an extensive set of diagnostics for functional safety. Operation is specified over the automotive temperature range of -40°C to +105°C. The device is AEC-Q100 Grade 2 qualified.

Applications

Advanced Driver Assistance Systems (ADAS)
LiDAR Systems
RADAR Systems
4Mp 40fps Forward-Vision Camera (FVC) Systems
Surround View Systems (SVS)
Driver Monitor Systems (DMS)
Rear-View Camera (RVC) Systems with Multiple Synchronized Cameras

Key features

Four-Lane D-PHY MIPI CSI-2 v1.3 Input Port
16 Virtual Channels
Supports any CSI-2 Data Type in Tunneling Mode
Advanced MIPI D-PHY v1.2 Receivers Rated at 2.5Gbps
Polarity Flip and Data Lane Reassignment
Full-Duplex Capability Over a Single Wire
3Gbps Forward-Link Rate
187.5Mbps Reverse-Link Rate
CSI-2 ECC, Checksum Local, Remote Error Detection, and Flagging
ASIL-B Compliant
End-to-End Data Integrity through CRC in Tunneling Mode
R-S FEC for Protection of Forward Video and Control-Channel Data
CRC Protection of Side-Channel and Video Data
Continuous Link-Margin Monitoring and Optimization
Reverse-Channel Adaptive Equalization
Reverse-Channel Eye-Opening Monitor for Continuous Link Margin Diagnosis
Concurrent Side Channel for Device Configuration and Communication with Peripherals
I2C/UART, Pass-Through I2C/UART, SPI, GPIO, and Register-Programmable GPIO
Reference Over Reverse (RoR) Clocking Supports Crystal-Free Operation
Generates Reference Clock for Image Sensor
Die Temperature Monitor, Internal and External Supply Voltage Monitor
Compact 5mm x 5mm TQFN Side-Wettable Package with 0.5mm Pitch

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	MAX96717GTJ/VY+T#C7528388MAXIM · TQFN-32-EP(5x5)	MAXIM	TQFN-32-EP(5x5)	2,344	₹770.07 · 2,344 in stock	View
	MAX96717FGTJ/VY+#C7456244MAXIM · TQFN-32-EP(5x5)	MAXIM	TQFN-32-EP(5x5)	On request	Price on request	Quote
