onsemiDatasheet (PDF)

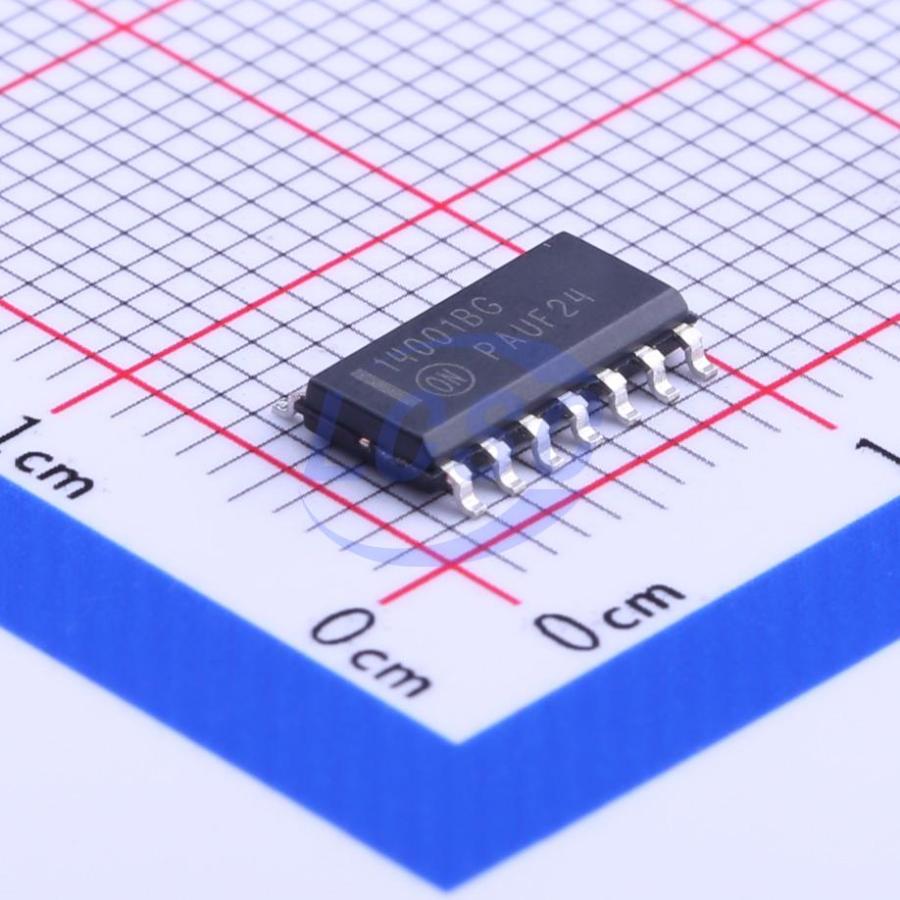

MC14001BDR2G
1uA 3V~18V 80ns@15V,50pF SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
B-Suffix Series CMoS Gates
- Manufacturer
- onsemi
- Manufacturer part #
- MC14001BDR2G
- Store part #
- C208503
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,490 in stock
#C208503
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.62 | ₹178.10 |
| 50+ | ₹29.17 | ₹1,458.50 |
| 150+ | ₹26.41 | ₹3,961.50 |
| 500+ | ₹19.09 | ₹9,545.00 |
| 2,500+ | ₹17.56 | ₹43,900.00 |
| 5,000+ | ₹16.63 | ₹83,150.00 |
5 × ₹35.62
₹178.10
excl. GST
₹210.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC14001BDR2G
₹178.10 for 5 + GST
Specifications
- Input Logic Level - High
- 3.5V~11V
- Input Logic Level - Low
- 1.5V~4V
- Operating Temperature
- -55℃~+125℃
- Logic Family
- 4000B Series
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 3V~18V
- Current - Output High(IOH)
- 8.8mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 80ns@15V,50pF
- Current - Output Low(IOL)
- 8.8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.36 g
Overview
The B Series logic gates are constructed with P and N channel enhancement mode devices in a single monolithic structure (Complementary MOS). Their primary use is where low power dissipation and/or high noise immunity is desired.
Key features
- Supply Voltage Range = 3.0 Vdc to 18 Vdc
- All Outputs Buffered
- Capable of Driving Two Low−power TTL Loads or One Low−power Schottky TTL Load Over the Rated Temperature Range.
- Double Diode Protection on All Inputs Except: Triple Diode Protection on MC14011B and MC14081B
- Pin−for−Pin Replacements for Corresponding CD4000 Series B Suffix Devices
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC14001BDG#C79380onsemi · SOIC-14 | onsemi | SOIC-14 | 110 | ₹50.18 · 110 in stock | View |
 | MC14001UBDR2G#C903922onsemi · SOIC-14 | onsemi | SOIC-14 | 100 | ₹88.30 · 100 in stock | View |
 | MC14001UBDG#C897249onsemi · SOIC-14 | onsemi | SOIC-14 | 100 | ₹57.33 · 100 in stock | View |
 | TC4001BF(EL,N,F)#C6716800TOSHIBA · SOP-14 | TOSHIBA | SOP-14 | 120 | ₹62.67 · 120 in stock | View |
 | CD4001BM96#C49967TI · SOIC-14 | TI | SOIC-14 | 4,369 | ₹80.40 · 4,369 in stock | View |
