onsemiDatasheet (PDF)

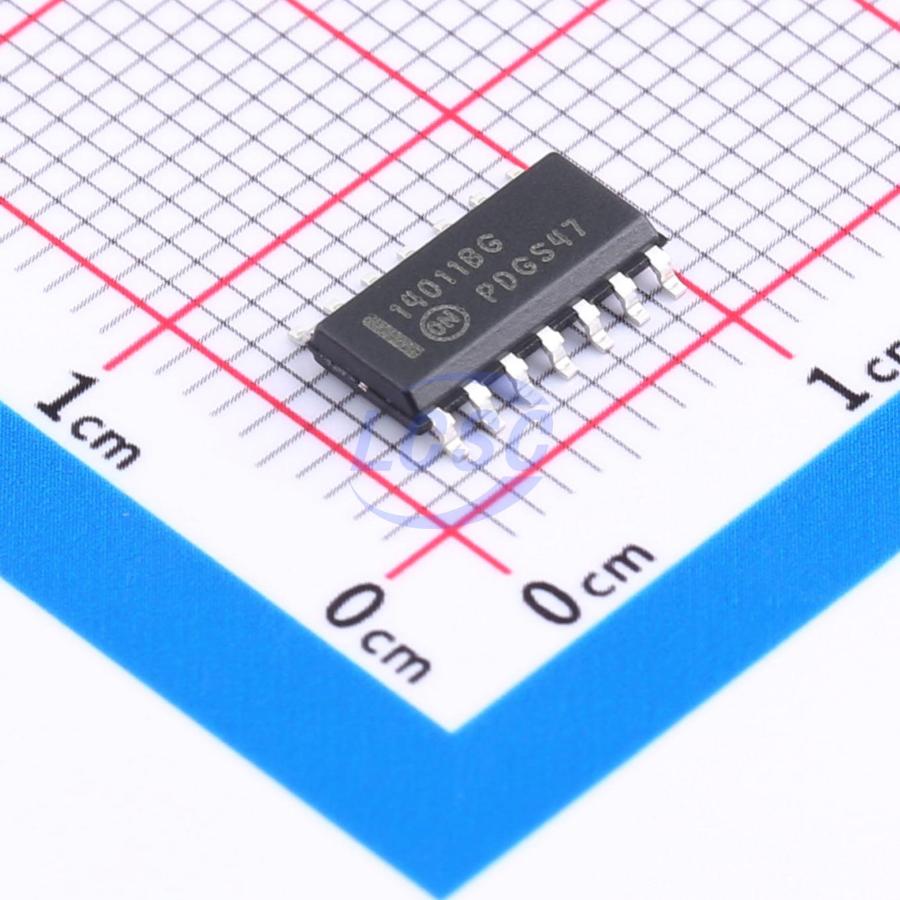

MC14011BDR2G
1uA 3V~18V 80ns@15V,50pF SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
B-Suffix Series CMoS Gates
- Manufacturer
- onsemi
- Manufacturer part #
- MC14011BDR2G
- Store part #
- C7278
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,110 in stock
#C7278
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.86 | ₹149.30 |
| 50+ | ₹23.92 | ₹1,196.00 |
| 150+ | ₹21.37 | ₹3,205.50 |
| 500+ | ₹18.19 | ₹9,095.00 |
| 2,500+ | ₹16.78 | ₹41,950.00 |
| 5,000+ | ₹15.93 | ₹79,650.00 |
5 × ₹29.86
₹149.30
excl. GST
₹176.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC14011BDR2G
₹149.30 for 5 + GST
Specifications
- Input Logic Level - High
- 3.5V~11V
- Input Logic Level - Low
- 1.5V~4V
- Operating Temperature
- -55℃~+125℃
- Logic Family
- 4000B Series
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 3V~18V
- Current - Output High(IOH)
- 8.8mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 80ns@15V,50pF
- Current - Output Low(IOL)
- 8.8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.36 g
Overview
B Series logic gates are constructed with P and N channel enhancement mode devices in a single monolithic structure (Complementary MOS). Their primary use is where low power dissipation and/or high noise immunity is desired.
Key features
- Supply Voltage Range = 3.0 Vdc to 18 Vdc
- All Outputs Buffered
- Capable of Driving Two Low−power TTL Loads or One Low−power Schottky TTL Load Over the Rated Temperature Range.
- Double Diode Protection on All Inputs Except: Triple Diode Protection on MC14011B and MC14081B
- Pin−for−Pin Replacements for Corresponding CD4000 Series B Suffix Devices
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC14011BDG#C233443onsemi · SOIC-14 | onsemi | SOIC-14 | 14 | ₹93.01 · 14 in stock | View |
 | MC14093BDR2G#C36616onsemi · SOIC-14 | onsemi | SOIC-14 | 5,670 | ₹24.55 · 5,670 in stock | View |
 | MC14093BDG#C233506onsemi · SOIC-14 | onsemi | SOIC-14 | 325 | ₹60.42 · 325 in stock | View |
 | CD4011BM/TR#C194334HGSEMI · SOIC-14 | HGSEMI | SOIC-14 | 12,055 | ₹14.78 · 12,055 in stock | View |
 | HT4011ARZ#C3019557HTCSEMI · SOP-14 | HTCSEMI | SOP-14 | 120 | ₹15.11 · 120 in stock | View |
