MC14093BDR2G
Schmitt trigger 3V~18V 80ns@15V,50pF 1uA SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Quad 2-Input "NAND" Schmitt Trigger
- Manufacturer
- onsemi
- Manufacturer part #
- MC14093BDR2G
- Store part #
- C36616
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,670 in stock
#C36616
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.55 | ₹122.75 |
| 50+ | ₹19.70 | ₹985.00 |
| 150+ | ₹17.62 | ₹2,643.00 |
| 500+ | ₹14.38 | ₹7,190.00 |
| 2,500+ | ₹13.23 | ₹33,075.00 |
| 5,000+ | ₹12.53 | ₹62,650.00 |
5 × ₹24.55
₹122.75
excl. GST
₹144.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel

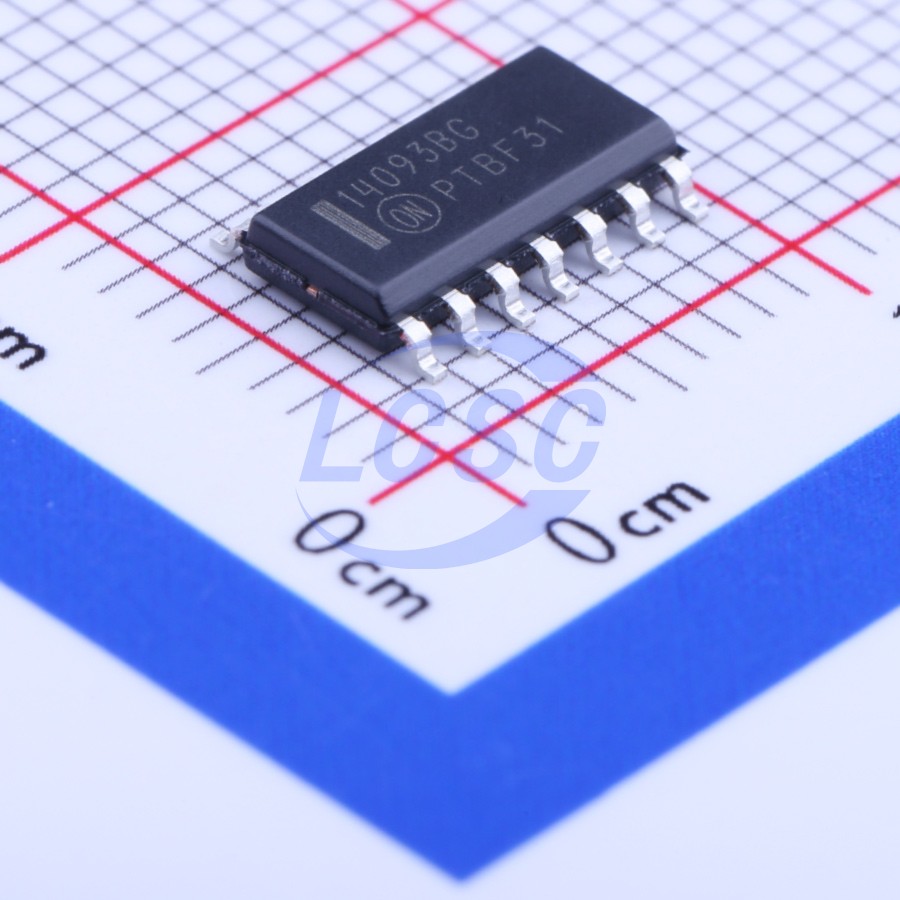

MC14093BDR2G
₹122.75 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 4000B Series
- Voltage - Supply
- 3V~18V
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 80ns@15V,50pF
- Input Logic Level - High
- 3.6V~10.8V
- Input Logic Level - Low
- 900mV~4V
- Operating Temperature
- -55℃~+125℃
- Output Logic Level - High
- 4.95V~5V;9.95V~10V;14.95V~15V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8.8mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 8.8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.36 g
Overview
The MC14093B Schmitt trigger is constructed with MOS P−channel and N−channel enhancement mode devices in a single monolithic structure. These devices find primary use where low power dissipation and/or high noise immunity is desired. The MC14093B may be used in place of the MC14011B quad 2−input NAND gate for enhanced noise immunity or to “square up” slowly changing waveforms.
Key features
- Supply Voltage Range = 3.0 Vdc to 18 Vdc
- Capable of Driving Two Low−Power TTL Loads or One Low−Power Schottky TTL Load Over the Rated Temperature Range
- Triple Diode Protection on All Inputs
- Pin−for−Pin Compatible with CD4093
- Can be Used to Replace MC14011B
- Independent Schmitt−Trigger at each Input
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC14093BDG#C233506onsemi · SOIC-14 | onsemi | SOIC-14 | 325 | ₹60.42 · 325 in stock | View |
 | MC14011BDG#C233443onsemi · SOIC-14 | onsemi | SOIC-14 | 14 | ₹93.01 · 14 in stock | View |
 | MC14011BDR2G#C7278onsemi · SOIC-14 | onsemi | SOIC-14 | 2,110 | ₹29.86 · 2,110 in stock | View |
 | NLV14093BDR2G#C904796onsemi · SOIC-14 | onsemi | SOIC-14 | 49 | ₹73.33 · 49 in stock | View |
 | CD4093BDTR(XBLW)#C41361405XBLW · SOP-14 | XBLW | SOP-14 | 5,075 | ₹21.43 · 5,075 in stock | View |
