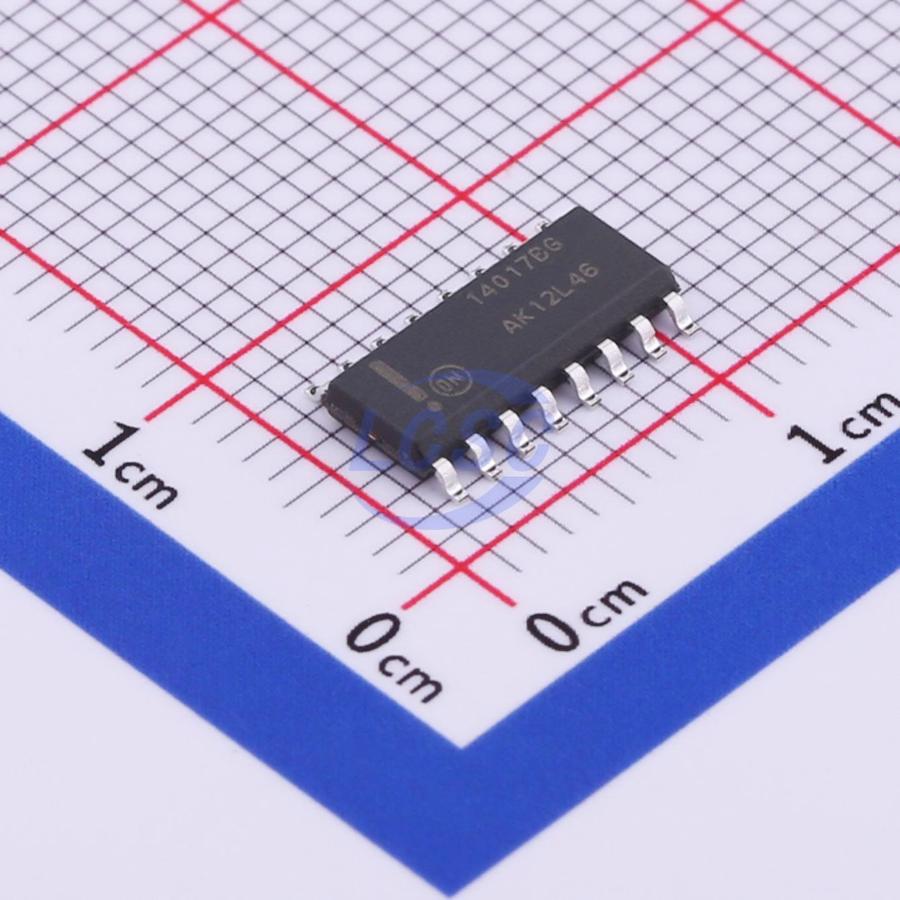

MC14017BDR2G
Rising Edge 1 16MHz SOIC-16 Counters, Dividers RoHS
Decade Counter
- Manufacturer
- onsemi
- Manufacturer part #
- MC14017BDR2G
- Store part #
- C512979
- Package / case
- SOIC-16
- Category
- Counters, Dividers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,710 in stock
#C512979
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.90 | ₹234.50 |
| 50+ | ₹36.00 | ₹1,800.00 |
| 150+ | ₹31.33 | ₹4,699.50 |
| 500+ | ₹25.49 | ₹12,745.00 |
| 2,500+ | ₹22.90 | ₹57,250.00 |
| 5,000+ | ₹21.35 | ₹1,06,750.00 |
5 × ₹46.90
₹234.50
excl. GST
₹276.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC14017BDR2G
₹234.50 for 5 + GST
Specifications
- Voltage - Supply
- 3V~18V
- Direction
- Up Counter
- Trigger Type
- Rising Edge
- Timing
- Synchronous
- Operating Temperature
- -55℃~+125℃
- Reset
- Asynchronous
- Number of Elements
- 1
- Propagation Delay
- 230ns
- Count Rate
- 16MHz
- Features
- Static operation;Cascade counter;Programmable divide ratio
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.192 g
Overview
The MC14017B is a five−stage Johnson decade counter with built−in code converter. High speed operation and spike−free outputs are obtained by use of a Johnson decade counter design. The ten decoded outputs are normally low, and go high only at their appropriate decimal time period. The output changes occur on the positive−going edge of the clock pulse. This part can be used in frequency division applications as well as decade counter or decimal decode display applications.
Key features
- Fully Static Operation
- DC Clock Input Circuit Allows Slow Rise Times
- Carry Out Output for Cascading
- Divide−by−N Counting
- Supply Voltage Range = 3.0 Vdc to 18 Vdc
- Capable of Driving Two Low−Power TTL Loads or One Low−Power Schottky TTL Load Over the Rated Temperature Range
- Pin−for−Pin Replacement for CD4017B
- Triple Diode Protection on All Inputs
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- This Device is Pb−Free and is RoHS Compliant
