onsemiDatasheet (PDF)

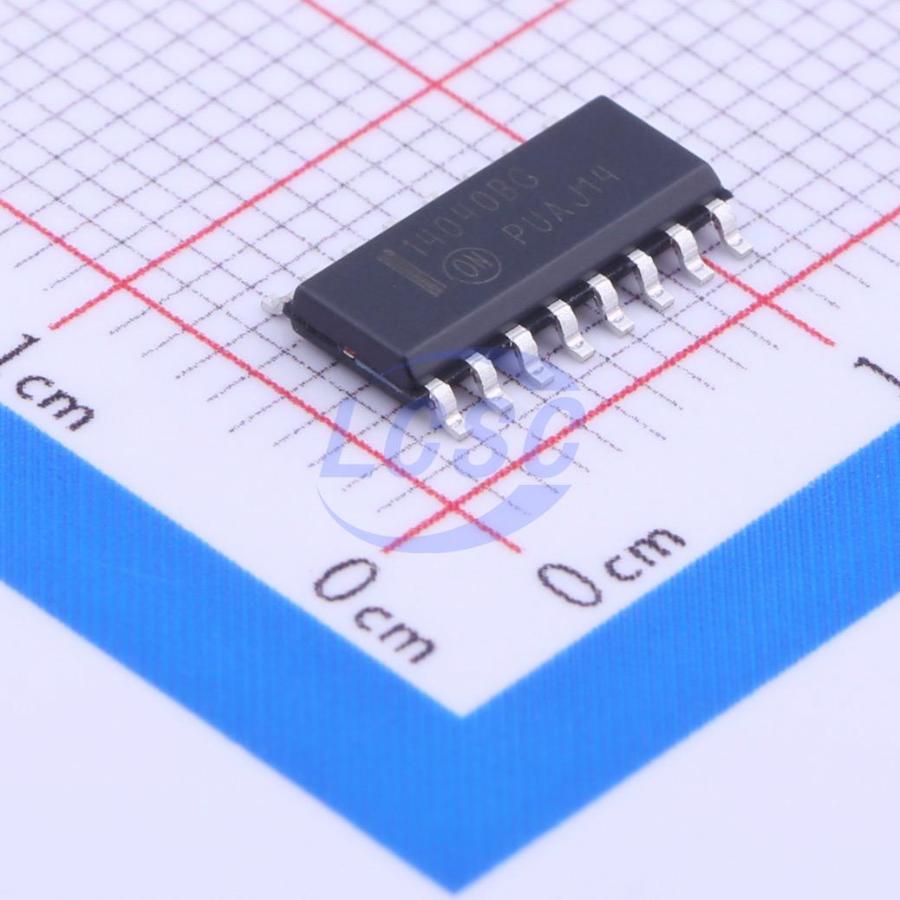

MC14040BDR2G
Falling Edge 1 10MHz SOIC-16 Counters, Dividers RoHS
SOIC-16ROHS3 CompliantActive
12-Bit Binary Counter
- Manufacturer
- onsemi
- Manufacturer part #
- MC14040BDR2G
- Store part #
- C62403
- Package / case
- SOIC-16
- Category
- Counters, Dividers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,635 in stock
#C62403
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.82 | ₹129.10 |
| 50+ | ₹20.53 | ₹1,026.50 |
| 150+ | ₹18.27 | ₹2,740.50 |
| 500+ | ₹15.44 | ₹7,720.00 |
| 2,500+ | ₹14.18 | ₹35,450.00 |
| 5,000+ | ₹13.43 | ₹67,150.00 |
5 × ₹25.82
₹129.10
excl. GST
₹152.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC14040BDR2G
₹129.10 for 5 + GST
Specifications
- Voltage - Supply
- 3V~18V
- Direction
- Up Counter
- Trigger Type
- Falling Edge
- Operating Temperature
- -55℃~+125℃
- Reset
- Asynchronous
- Number of Elements
- 1
- Propagation Delay
- 500ns
- Count Rate
- 10MHz
- Features
- Static operation;Reset function
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.318 g
Overview
The MC14040B 12−stage binary counter is constructed with MOS P−Channel and N−Channel enhancement mode devices in a single monolithic structure. This part is designed with an input wave shaping circuit and 12 stages of ripple−carry binary counter. The device advances the count on the negative−going edge of the clock pulse. Applications include time delay circuits, counter controls, and frequency−driving circuits.
Applications
- Time delay circuits
- Counter controls
- Frequency−driving circuits
- Time−Base Generator
Key features
- Fully Static Operation
- Diode Protection on All Inputs
- Supply Voltage Range = 3.0 Vdc to 18 Vdc
- Capable of Driving Two Low−power TTL Loads or One Low−power Schottky TTL Load Over the Rated Temperature Range
- Common Reset Line
- Pin−for−Pin Replacement for CD4040B
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
