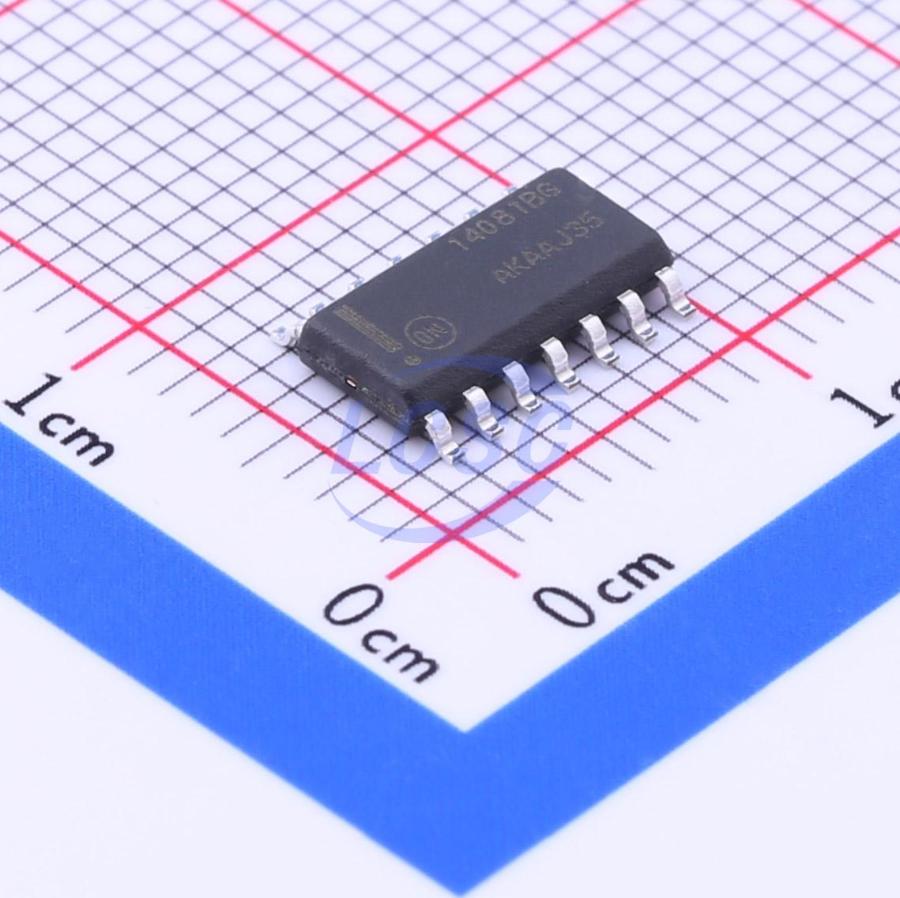

MC14081BDR2G
1uA 3V~18V 100ns@15V,50pF SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
B-Suffix Series CMoS Gates
- Manufacturer
- onsemi
- Manufacturer part #
- MC14081BDR2G
- Store part #
- C52342
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18,745 in stock
#C52342
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.63 | ₹153.15 |
| 50+ | ₹23.10 | ₹1,155.00 |
| 150+ | ₹19.87 | ₹2,980.50 |
| 500+ | ₹15.85 | ₹7,925.00 |
| 2,500+ | ₹14.06 | ₹35,150.00 |
| 5,000+ | ₹12.99 | ₹64,950.00 |
5 × ₹30.63
₹153.15
excl. GST
₹180.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC14081BDR2G
₹153.15 for 5 + GST
Specifications
- Input Logic Level - High
- 3.5V~11V
- Operating Temperature
- -55℃~+125℃
- Input Logic Level - Low
- 1.5V~4V
- Logic Family
- 4000B Series
- Output Logic Level - High
- 4.95V~5V;9.95V~10V;14.95V~15V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 3V~18V
- Current - Output High(IOH)
- 8.8mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 100ns@15V,50pF
- Current - Output Low(IOL)
- 8.8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.36 g
Overview
B Series logic gates are constructed with P and N channel enhancement mode devices in a single monolithic structure (Complementary MOS). Their primary use is where low power dissipation and/or high noise immunity is desired.
Key features
- Supply Voltage Range = 3.0 Vdc to 18 Vdc
- All Outputs Buffered
- Capable of Driving Two Low−power TTL Loads or One Low−power Schottky TTL Load Over the Rated Temperature Range.
- Double Diode Protection on All Inputs Except: Triple Diode Protection on MC14011B and MC14081B
- Pin−for−Pin Replacements for Corresponding CD4000 Series B Suffix Devices
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC14081BDG#C233578onsemi · SOIC-14 | onsemi | SOIC-14 | 86 | ₹65.41 · 86 in stock | View |
| NLV14081BDR2G#C904793onsemi · SOIC-14 | onsemi | SOIC-14 | 184 | ₹59.19 · 184 in stock | View | |
 | CD4081BM#C353985TI · SOIC-14 | TI | SOIC-14 | 711 | ₹55.71 · 711 in stock | View |
 | CD4081BM96#C40551TI · SOIC-14 | TI | SOIC-14 | 43,825 | ₹39.70 · 43,825 in stock | View |
 | CD4081BP#C5274734Sungine · SOP-14 | Sungine | SOP-14 | 25 | ₹21.51 · 25 in stock | View |
