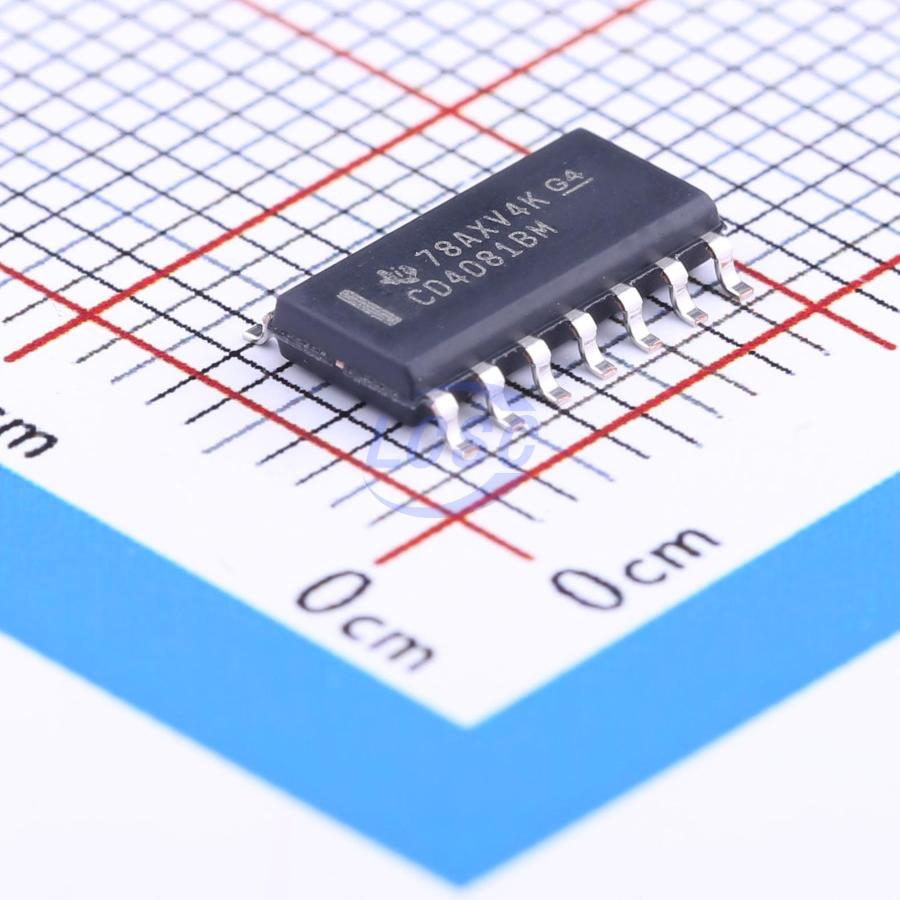

CD4081BM96
1uA 3V~18V 90ns@15V,50pF SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
CMOS AND Gates
- Manufacturer
- TI
- Manufacturer part #
- CD4081BM96
- Store part #
- C40551
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
38,780 in stock
#C40551
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.70 | ₹198.50 |
| 50+ | ₹31.00 | ₹1,550.00 |
| 150+ | ₹27.27 | ₹4,090.50 |
| 500+ | ₹22.60 | ₹11,300.00 |
| 2,500+ | ₹18.93 | ₹47,325.00 |
| 5,000+ | ₹17.69 | ₹88,450.00 |
5 × ₹39.70
₹198.50
excl. GST
₹234.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4081BM96
₹198.50 for 5 + GST
Specifications
- Input Logic Level - High
- 3.5V~11V
- Input Logic Level - Low
- 1.5V~4V
- Operating Temperature
- -55℃~+125℃
- Logic Family
- 4000B Series
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 3V~18V
- Current - Output High(IOH)
- 3.4mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 90ns@15V,50pF
- Current - Output Low(IOL)
- 3.4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.264 g
Overview
CD4073B, CD4081B and CD. 4082B AND gates. provide the system de. signer with direct implementation of the AND function and supplement the existing family of CMOS gates.
Applications
- For digital logic system design, implementing AND logic functions
Key features
- Medium-Speed Operation -- tPLH· tpHL = 80 ns (typ.) at VDD = 10 V
- 100% tested for quiescent current at 20 V
- Maximum input current of 1 μA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C
- Noise margin (full package-temperature range) = 1 V at VDD = 5 V; 2 V at VDD = 10 V; 2.5 V at VDD = 15 V
- Standardized, symmetrical output characteristics
- 5-V, 10-V, and 15-V parametric ratings
- Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Dtscription of 'B' Series CMOs Devices"
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC14081BDR2G#C52342onsemi · SOIC-14 | onsemi | SOIC-14 | 14,095 | ₹24.86 · 14,095 in stock | View |
 | CD4081BM#C353985TI · SOIC-14 | TI | SOIC-14 | 685 | ₹55.71 · 685 in stock | View |
 | CD4081BM/TR#C2683128HGSEMI · SOP-14 | HGSEMI | SOP-14 | 2,430 | ₹16.99 · 2,430 in stock | View |
 | CD4081SA14.TR#C51940043Wuxi I-core Elec · SOP-14 | Wuxi I-core Elec | SOP-14 | 260 | ₹20.77 · 260 in stock | View |
 | TC4081BF(EL,N,F)#C5156515TOSHIBA · SOP-14 | TOSHIBA | SOP-14 | 235 | ₹54.83 · 235 in stock | View |
