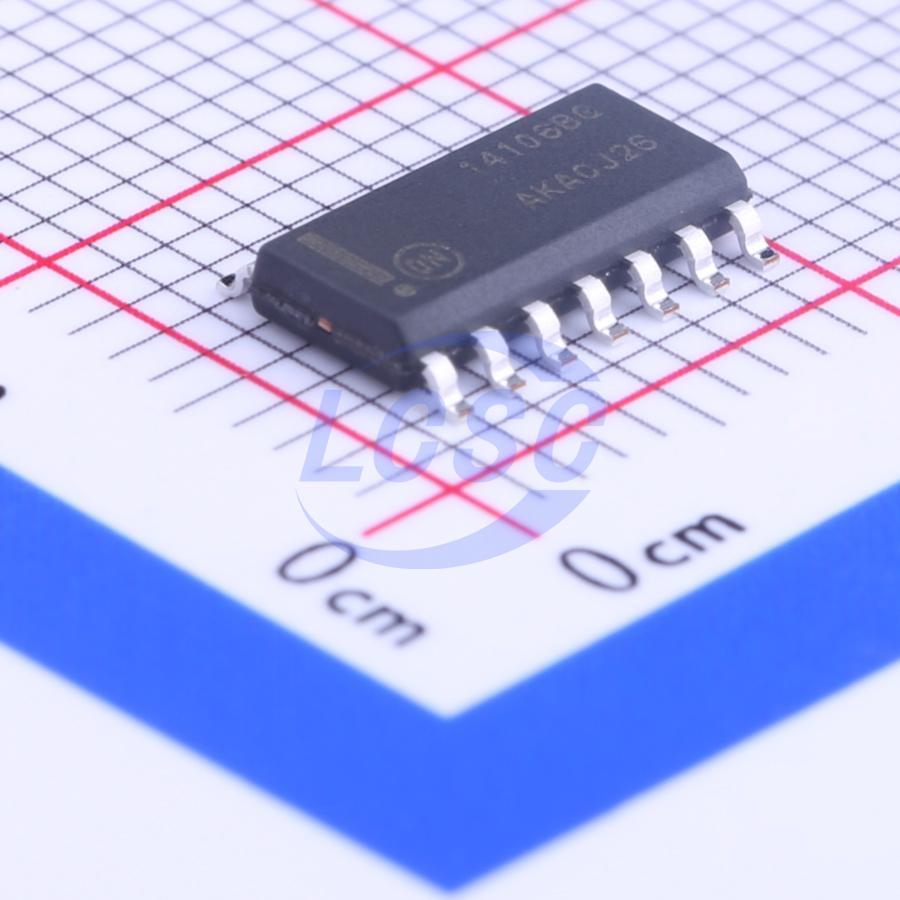

Hex Schmitt Trigger
- Manufacturer
- onsemi
- Manufacturer part #
- MC14106BDR2G
- Store part #
- C100035
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,220 in stock
#C100035
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.23 | ₹171.15 |
| 50+ | ₹27.27 | ₹1,363.50 |
| 150+ | ₹24.29 | ₹3,643.50 |
| 500+ | ₹20.57 | ₹10,285.00 |
| 2,500+ | ₹18.92 | ₹47,300.00 |
| 5,000+ | ₹17.93 | ₹89,650.00 |
5 × ₹34.23
₹171.15
excl. GST
₹201.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC14106BDR2G
₹171.15 for 5 + GST
Specifications
- output type
- Push-pull
- Input Type
- Schmitt trigger
- Logic Family
- 4000B
- Voltage - Supply
- 3V~18V
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 80ns@15V,50pF
- Features
- Noise suppression function
- Operating Temperature
- -55℃~+125℃
- Input Logic Level - High
- 3.6V~10.8V
- Input Logic Level - Low
- 900mV~4V
- Output Logic Level - High
- 14.95V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8.8mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 8.8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.36 g
Overview
The MC14106B hex Schmitt Trigger is constructed with MOS P−channel and N−channel enhancement mode devices in a single monolithic structure. These devices find primary use where low power dissipation and/or high noise immunity is desired. The MC14106B may be used in place of the MC14069UB hex inverter for enhanced noise immunity or to “square up” slowly changing waveforms.
Applications
- Useful as an edge detector circuit.
Key features
- Increased Hysteresis Voltage Over the MC14584B
- Supply Voltage Range = 3.0 Vdc to 18 Vdc
- Capable of Driving Two Low−power TTL Loads or One Low−power Schottky TTL Load Over the Rated Temperature Range
- Pin−for−Pin Replacement for CD40106B and MM74C14
- Can Be Used to Replace the MC14584B or MC14069UB
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
