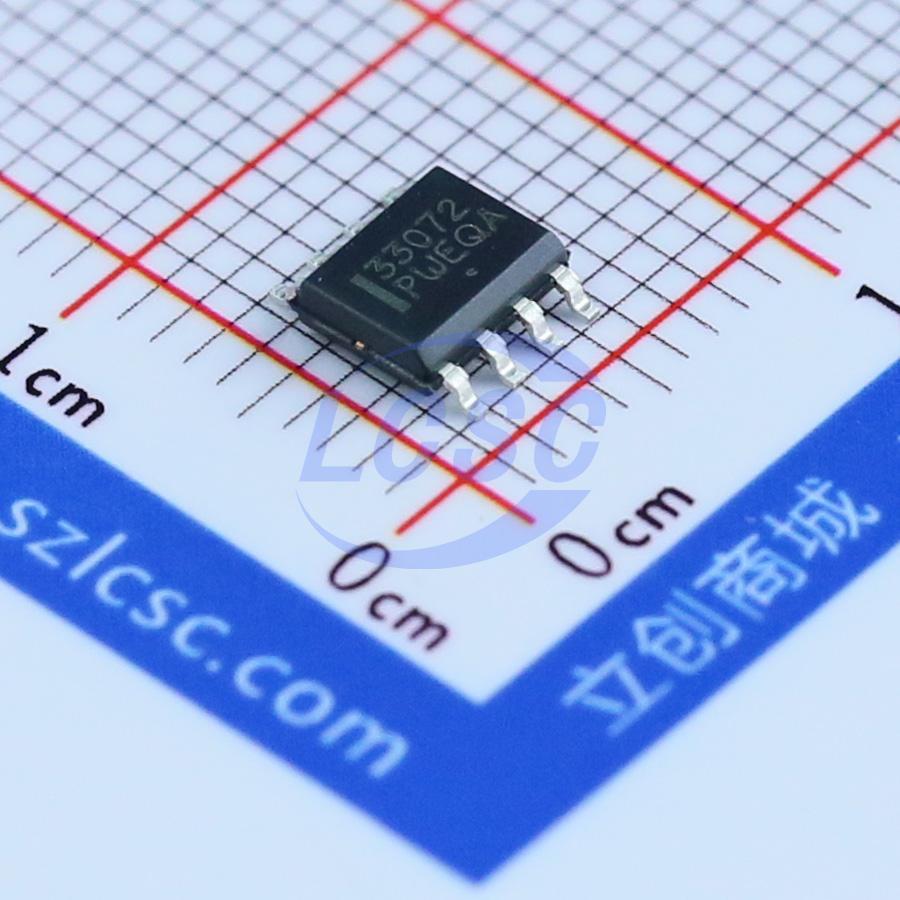

MC33072ADR2G

30mA 2 500uV 13V/us 97dB 100nA 1.6mA 4.5MHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

Single Supply 3.0 V to 44 V Operational Amplifiers

Manufacturer: onsemi
Manufacturer part #: MC33072ADR2G
Store part #: C26356
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

37,855 in stock

#C26356

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹31.53	₹157.65
50+	₹25.34	₹1,267.00
150+	₹22.68	₹3,402.00
500+	₹18.96	₹9,480.00
2,500+	₹17.49	₹43,725.00
5,000+	₹16.60	₹83,000.00

Quantity (min 5, multiples of 5)

5 × ₹31.53

₹157.65

excl. GST

₹186.03 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

MC33072ADR2G

₹157.65 for 5 + GST

Specifications

Output Current: 30mA
Number of Channels: 2
Vos - Input Offset Voltage: 500uV
Slew Rate: 13V/us
Input Offset Current(Ios): 75nA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 97dB
Ib - Input Bias Current: 100nA
Input Offset Voltage Drift(Vos TC): 10uV/℃
Quiescent Current: 1.6mA
Gain Bandwidth Product: 4.5MHz
Features: Short-Circuit Protection;High capacitive load driving
Input Voltage Noise Density: 32nV/√Hz@1kHz
Single Supply: 3V~44V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.207 g

Overview

Quality bipolar fabrication with innovative design concepts are employed for the MC33071/72/74, MC34071/72/74, NCV33072/74A series of monolithic operational amplifiers. This series of operational amplifiers offer 4.5 MHz of gain bandwidth product, 13 V/μs slew rate and fast settling time without the use of JFET device technology. Although this series can be operated from split supplies, it is particularly suited for single supply operation, since the common mode input voltage range includes ground potential (VEE). With a Darlington input stage, this series exhibits high input resistance, low input offset voltage and high gain. The all NPN output stage, characterized by no deadband crossover distortion and large output voltage swing, provides high capacitance drive capability, excellent phase and gain margins, low open loop high frequency output impedance and symmetrical source/sink AC frequency response. The MC33071/72/74, MC34071/72/74, NCV33072/74,A series of devices are available in standard or prime performance (A Suffix) grades and are specified over the commercial, industrial/vehicular temperature ranges. The complete series of single, dual and quad operational amplifiers are available in plastic DIP, SOIC, QFN and TSSOP surface mount packages.

Key features

Wide Bandwidth: 4.5 MHz
High Slew Rate: 13 V/μs
Fast Settling Time: 1.1 μs to 0.1%
Wide Single Supply Operation: 3.0 V to 44 V
Wide Input Common Mode Voltage Range: Includes Ground (VEE)
Low Input Offset Voltage: 3.0 mV Maximum (A Suffix)
Large Output Voltage Swing: -14.7 V to +14.7 V (with ±15 V Supplies)
Large Capacitance Drive Capability: 0 pF to 10,000 pF
Low Total Harmonic Distortion: 0.02%
Excellent Phase Margin: 60°
Excellent Gain Margin: 12 dB
Output Short Circuit Protection
ESD Diodes/Clamps Provide Input Protection for Dual and Quad
NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
