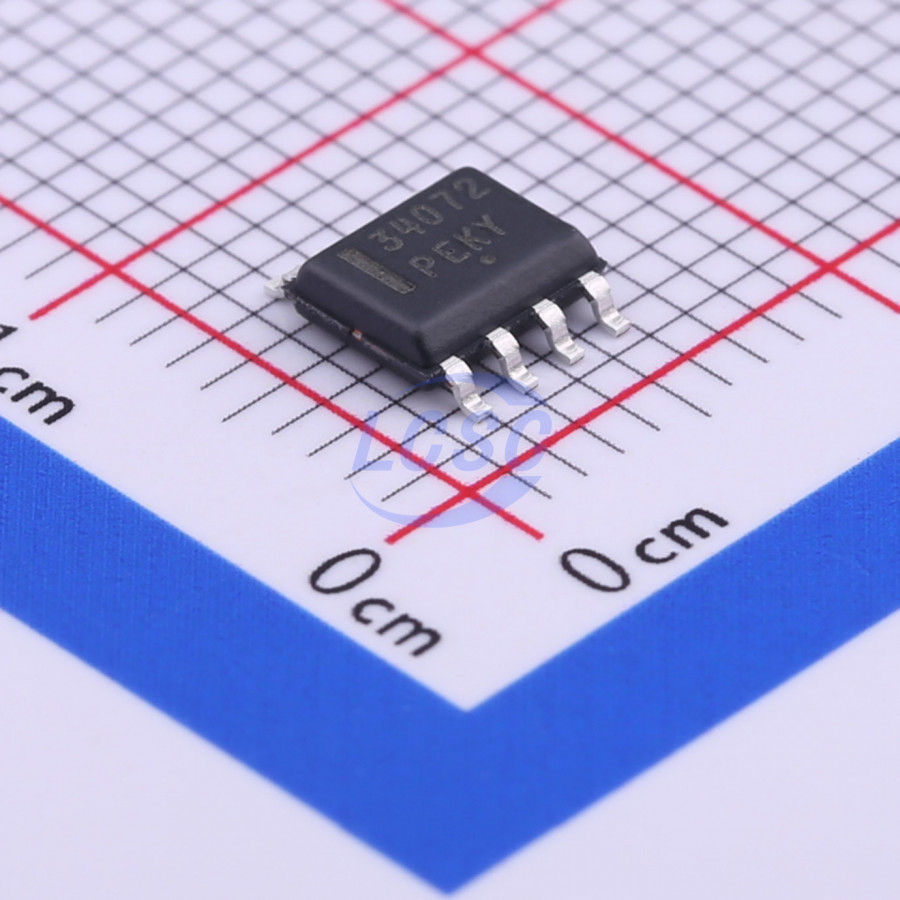

MC34072DR2G

The MC33071/72/74, MC34071/72/74, and NCV33072/74A series of monolithic operational amplifiers are fabricated using high-quality bipolar manufacturing processes and innovative design concepts. This series of operational amplifiers offers a gain-bandwidth product of 4.5 MHz, a slew rate of 13 V/μs, and fast settling time, without using JFET device technology. Although this series can operate with dual power supplies, it is particularly suitable for single power supply operation because its common-mode input voltage range includes the ground potential (VEE). With a Darlington input stage, this series exhibits high input impedance, low input offset voltage, and high gain. The all-NPN output stage features no dead-band crossover distortion and a large output voltage swing, providing high capacitive drive capability, excellent phase and gain margins, low open-loop high-frequency output impedance, and a symmetrical source/sink AC frequency response.

Key features

• Wide bandwidth: 4.5 MHz
• High slew rate: 13 V/µs
• Fast settling time: 1.1 s to 0.1%
• Wide single-supply operating range: 3.0 V to 44 V
• Wide input common-mode voltage range: includes ground (VEE)
• Low input offset voltage: 3.0 mV max (suffix A)
• Large output voltage swing: -14.7 V to +14 V (with ±15 V supply)
• High capacitive drive capability: 0 pF to 10,000 pF
• Low total harmonic distortion: 0.02%
• Excellent phase margin: 60°
• Excellent gain margin: 12 dB
• Output short-circuit protection
• ESD diodes/clamps provide input protection for dual and quad op-amps
• NCV prefix for automotive and other applications with unique traceability and change control requirements; AEC-Q100 qualified and PPAP capable
• These devices are lead-free, halogen-free/BFR-free, and RoHS compliant
