UTCDatasheet (PDF)

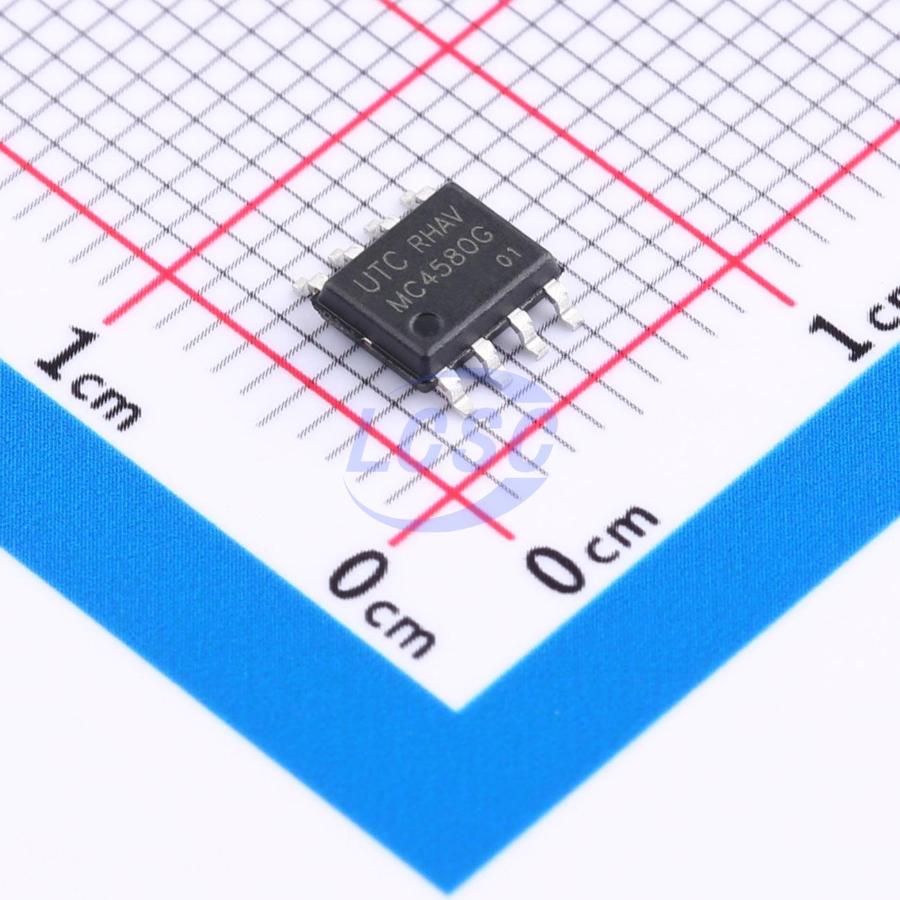

MC4580G-S08-R
2 3mV 5V/us 500nA 110dB 6mA 15MHz SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
Dual Operational Amplifier
- Manufacturer
- UTC
- Manufacturer part #
- MC4580G-S08-R
- Store part #
- C73206
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,160 in stock
#C73206
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.75 | ₹73.75 |
| 50+ | ₹11.89 | ₹594.50 |
| 150+ | ₹10.46 | ₹1,569.00 |
| 500+ | ₹9.38 | ₹4,690.00 |
| 2,500+ | ₹7.81 | ₹19,525.00 |
| 5,000+ | ₹7.38 | ₹36,900.00 |
5 × ₹14.75
₹73.75
excl. GST
₹87.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC4580G-S08-R
₹73.75 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 5V/us
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 500nA
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Quiescent Current
- 6mA
- Gain Bandwidth Product
- 15MHz
- Dual Supply
- 2V~18V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.166 g
Overview
The UTC MC4580 is the dual operational amplifier, specially designed for improving the tone control, which is most suitable for the audio application. Featuring noiseless, higher gain bandwidth, high output current and low distortion ratio, and it is most suitable not only for acoustic electronic parts of audio pre - amp and active filter, but also for the industrial measurement tools. It is also suitable for the head phone amp at higher output current, and further more, it can be applied for the handy type set operational amplifier of general purpose in application of low voltage single supply type which is properly biased of the input low voltage source.
Key features
- Operating voltage (±2V ~ ±18V)
- Low input noise voltage (0.8µVrms typ.)
- Wide gain bandwidth product (15MHz typ.)
- Low distortion (0.0005% typ.)
- Slew rate (5V/µs typ.)
- Bipolar technology
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NJM4580E-TE1#C3000516JRC · SOP-8 | JRC | SOP-8 | 1,810 | ₹34.36 · 1,810 in stock | View |
| NJM4580M/TR#C41378163HGSEMI · SOP-8 | HGSEMI | SOP-8 | 3,590 | ₹12.18 · 3,590 in stock | View | |
 | NJM4580DTR(XBLW)#C42395494XBLW · SOP-8 | XBLW | SOP-8 | 2,225 | ₹14.86 · 2,225 in stock | View |
 | RC4580M/TR#C434475HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,795 | ₹12.62 · 2,795 in stock | View |
 | ASOPD4580S-R#C2758239ASDsemi · SOP-8 | ASDsemi | SOP-8 | 300 | ₹15.51 · 300 in stock | View |
