onsemiDatasheet (PDF)

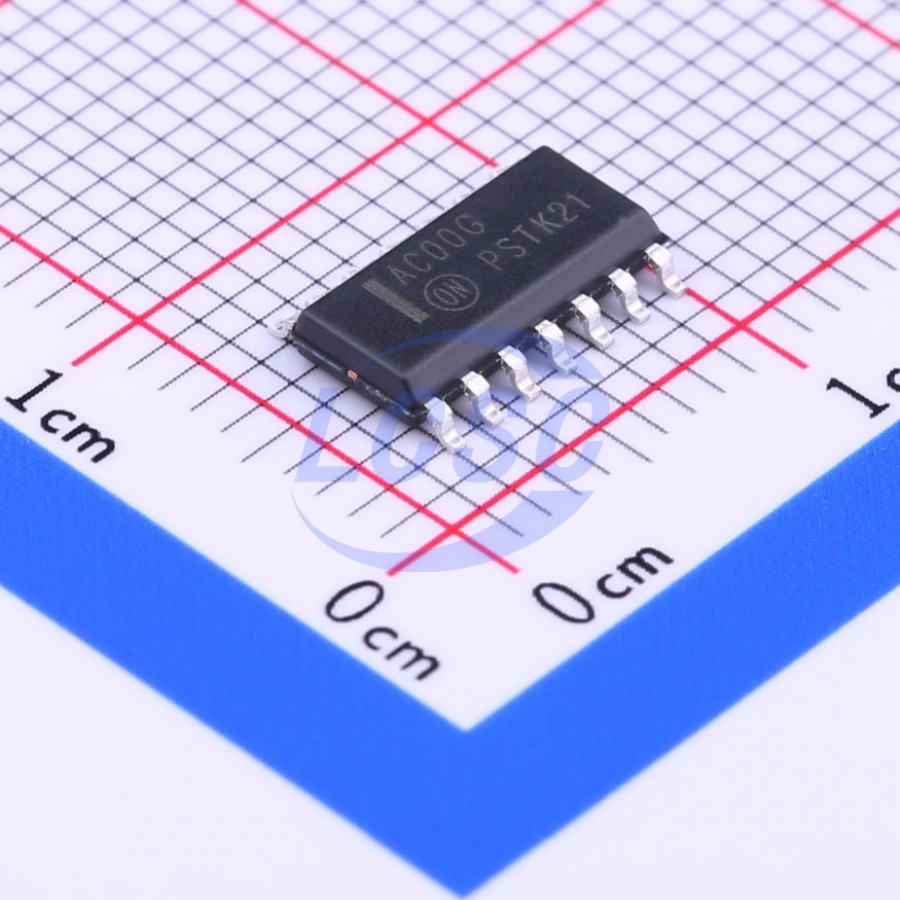

MC74AC00DR2G
NAND Gate IC 4 Channel SOIC-14
SOIC-14ROHS3 CompliantActive
Quad 2-Input NAND Gate, High-Performance Silicon-Gate CMOS
- Manufacturer
- onsemi
- Manufacturer part #
- MC74AC00DR2G
- Store part #
- C233513
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,540 in stock
#C233513
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.47 | ₹247.35 |
| 50+ | ₹40.03 | ₹2,001.50 |
| 150+ | ₹36.00 | ₹5,400.00 |
| 500+ | ₹30.96 | ₹15,480.00 |
| 2,500+ | ₹28.71 | ₹71,775.00 |
| 5,000+ | ₹27.37 | ₹1,36,850.00 |
5 × ₹49.47
₹247.35
excl. GST
₹291.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC74AC00DR2G
₹247.35 for 5 + GST
Specifications
- Logic Family
- 74AC Series
- Input Logic Level - Low
- 900mV~1.65V
- Input Logic Level - High
- 2.1V~3.85V
- Operating Temperature
- -55℃~+125℃
- Output Logic Level - High
- 2.9V;4.4V;5.4V
- Quiescent Current(Iq)
- 4uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 100mV;500mV
- Propagation Delay
- 8ns@5V,50pF
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.36 g
Overview
Key features
- Output Drive Capability: ±24 mA
- Operating Voltage Range: 2 to 6 V AC00; 4.5 to 5.5 ACT00
- Low Input Current: 1.0 μA
- High Noise Immunity Characteristic of CMOS Devices
- In Compliance With the JEDEC Standard No. 7A Requirements
- Chip Complexity: 32 FETs
- These are Pb-Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AC00SCX#C903330onsemi · SOIC-14 | onsemi | SOIC-14 | 2,320 | ₹51.16 · 2,320 in stock | View |
 | SN74AC00DR#C2682115TI · SOIC-14 | TI | SOIC-14 | 877 | ₹48.28 · 877 in stock | View |
 | SN74HC00DS#C51927312GREENMICRO · SOP-14 | GREENMICRO | SOP-14 | 4,660 | ₹9.18 · 4,660 in stock | View |
 | 74HC03M/TR#C3007962HGSEMI · SOP-14 | HGSEMI | SOP-14 | 2,510 | ₹20.40 · 2,510 in stock | View |
 | SN74LS00DS#C52091992GREENMICRO · SOP-14 | GREENMICRO | SOP-14 | 3,665 | ₹20.36 · 3,665 in stock | View |
