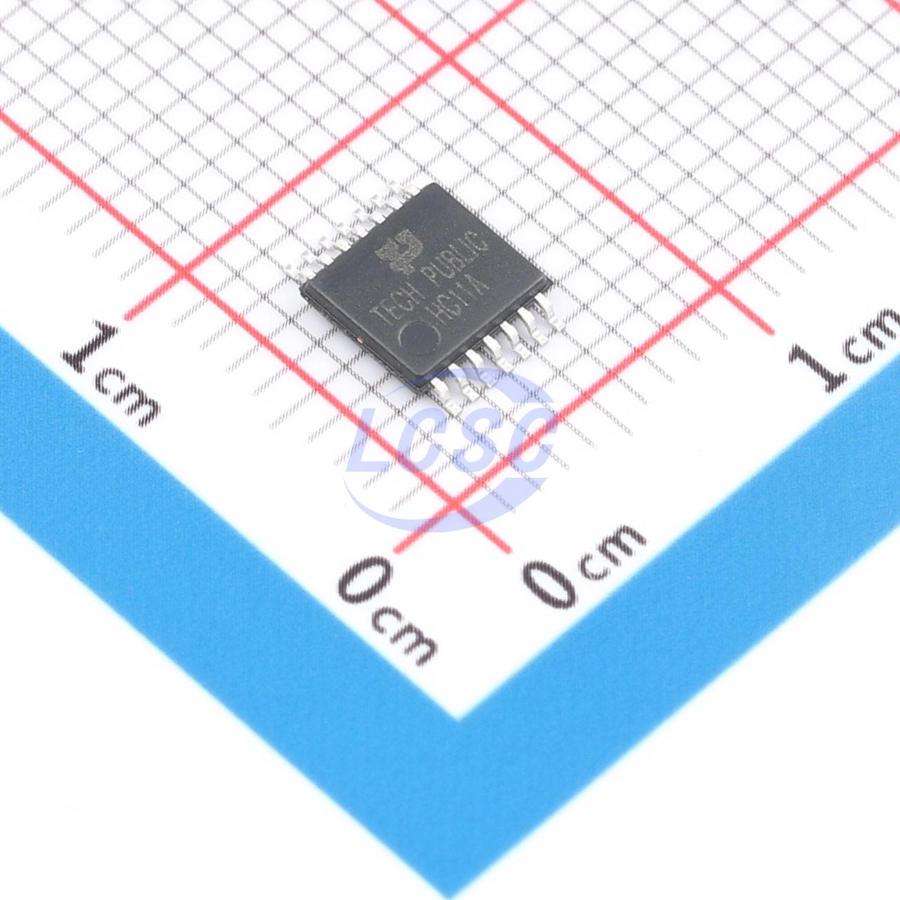

MC74HC11ADTR2G-TP
Schmitt trigger 2V~6V 5ns@4.5V,15pF TSSOP-14 Gates and Inverters
TSSOP-14RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- MC74HC11ADTR2G-TP
- Store part #
- C54561864
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,995 in stock
#C54561864
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.98 | ₹164.90 |
| 50+ | ₹25.80 | ₹1,290.00 |
| 150+ | ₹22.72 | ₹3,408.00 |
| 500+ | ₹18.87 | ₹9,435.00 |
| 2,500+ | ₹17.16 | ₹42,900.00 |
| 5,000+ | ₹16.13 | ₹80,650.00 |
5 × ₹32.98
₹164.90
excl. GST
₹194.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC74HC11ADTR2G-TP
₹164.90 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.7V;2V
- Output Logic Level - High
- 1.5V;1.9V;2.2V;2.4V;3.8V
- Voltage - Supply
- 2V~6V
- Number of Channels
- 3;3
- Propagation Delay
- 5ns@4.5V,15pF
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.099 g
Overview
This product provides three 3-input AND gate functions. The inputs can be driven by 3.3V or 5V devices. This feature allows these devices to be used as translators in mixed 3.3V and 5V environments. Schmitt-trigger action on all inputs enables the circuit to tolerate slower input rise and fall times. This device is fully characterized for partial-power-down applications using IOFF. The IOFF circuit disables the outputs, preventing potentially damaging backflow current through the device when it is powered down.
Key features
- Wide supply voltage range: 2V ~ 6V
- CMOS low power consumption
- Overvoltage-tolerant inputs up to 6V
- Latch-up performance exceeds 50mA
- Direct TTL-level interface compatible
- ESD protection: HBM ANSI/ESDA/JEDEC JS-00 Class 3A exceeds 6000V, CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
- I<sub>OFF</sub> circuitry enables partial power-down mode operation
- Package: TSSOP-14
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HC11PW-TP#C54561789TECH PUBLIC · TSSOP-14 | TECH PUBLIC | TSSOP-14 | 2,970 | ₹38.23 · 2,970 in stock | View |
 | SN74HC11PWR-TP#C54561935TECH PUBLIC · TSSOP-14 | TECH PUBLIC | TSSOP-14 | 900 | ₹32.98 · 900 in stock | View |
 | TC74VHC11FT-TP#C54561900TECH PUBLIC · TSSOP-14 | TECH PUBLIC | TSSOP-14 | 2,490 | ₹32.98 · 2,490 in stock | View |
