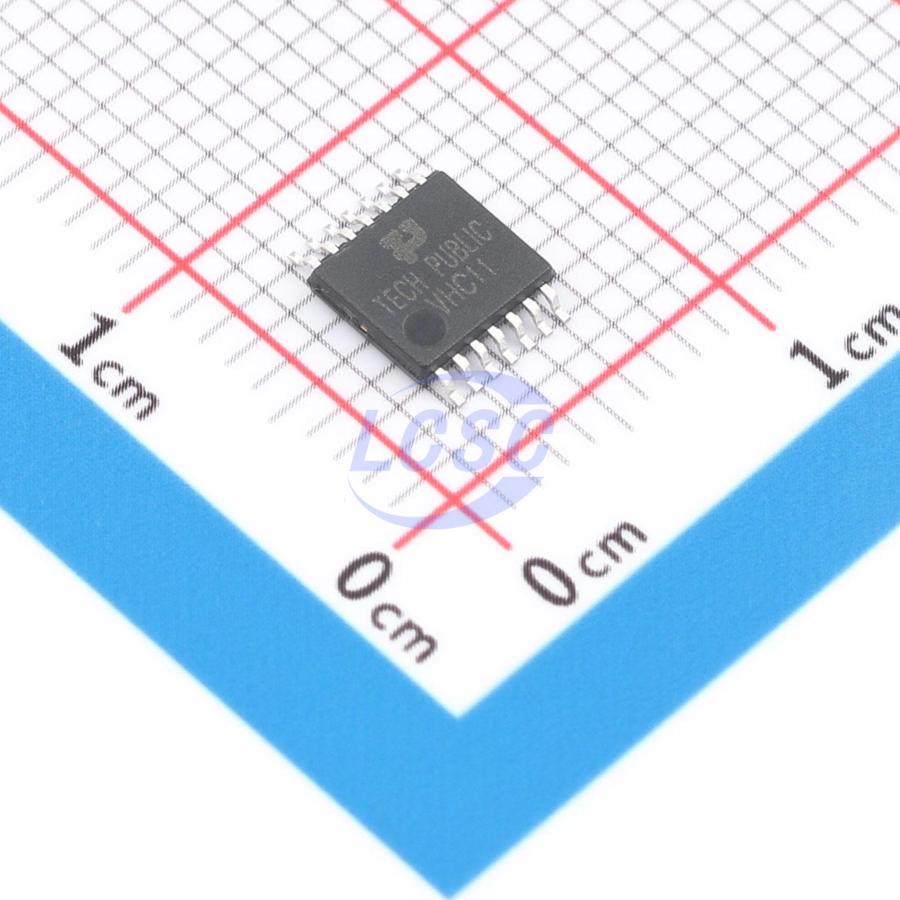

TC74VHC11FT-TP
Schmitt trigger 2V~5.5V 3.3ns@5V,15pF TSSOP-14 Gates and Inverters
TSSOP-14RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TC74VHC11FT-TP
- Store part #
- C54561900
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,490 in stock
#C54561900
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.98 | ₹164.90 |
| 50+ | ₹25.80 | ₹1,290.00 |
| 150+ | ₹22.72 | ₹3,408.00 |
| 500+ | ₹18.87 | ₹9,435.00 |
| 2,500+ | ₹17.16 | ₹42,900.00 |
| 5,000+ | ₹16.13 | ₹80,650.00 |
5 × ₹32.98
₹164.90
excl. GST
₹194.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TC74VHC11FT-TP
₹164.90 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74VHC
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.7V;2V
- Output Logic Level - High
- 1.5V;1.9V;2.2V;2.4V;3.8V
- Voltage - Supply
- 2V~5.5V
- Number of Channels
- 3;3
- Propagation Delay
- 3.3ns@5V,15pF
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.193 g
Overview
This device provides three 3-input AND functions. The inputs can be driven by 3.3 V or 5 V devices. This feature allows these devices to be used as translators in mixed 3.3 V and 5 V environments. Schmitt-trigger action on all inputs allows the circuit to tolerate slower input rise and fall times. This device is fully characterized for partial-powerdown applications using IOFF. The IOFF circuit disables the outputs, preventing damaging backflow current through the device when it is powered down.
Key features
- Wide supply voltage range: 2 V ~ 5.5 V
- CMOS low power consumption
- Overvoltage-tolerant inputs up to 5.5 V
- Latch-up performance exceeds 50 mA
- Direct TTL-level interface compatible
- ESD protection: HBM ANSI/ESDA/JEDEC JS-003 Class A exceeds 6000 V, CDM ANSI/ESDA/JEDEC JS-002 C3 exceeds 2000 V
- I<sub>OFF</sub> circuit enables partial power-down mode operation
- Package: TSSOP-14
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HC11PW-TP#C54561789TECH PUBLIC · TSSOP-14 | TECH PUBLIC | TSSOP-14 | 2,970 | ₹38.23 · 2,970 in stock | View |
 | MC74HC11ADTR2G-TP#C54561864TECH PUBLIC · TSSOP-14 | TECH PUBLIC | TSSOP-14 | 2,995 | ₹32.98 · 2,995 in stock | View |
 | SN74HC11PWR-TP#C54561935TECH PUBLIC · TSSOP-14 | TECH PUBLIC | TSSOP-14 | 900 | ₹32.98 · 900 in stock | View |
