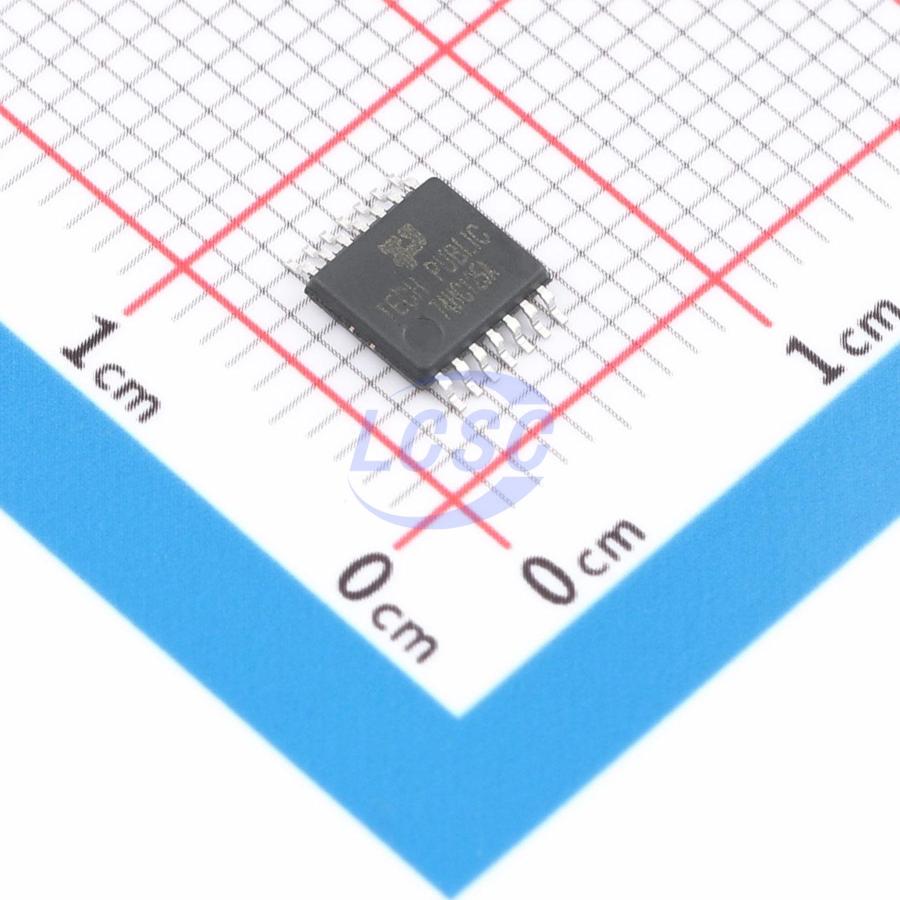

MC74HC125ADTR2G-TP
Schmitt trigger 2V~6V 1 TSSOP-14 Buffers, Drivers, Receivers, Transceivers
TSSOP-14RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- MC74HC125ADTR2G-TP
- Store part #
- C54561865
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,750 in stock
#C54561865
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.98 | ₹164.90 |
| 50+ | ₹25.80 | ₹1,290.00 |
| 150+ | ₹22.72 | ₹3,408.00 |
| 500+ | ₹18.87 | ₹9,435.00 |
| 2,500+ | ₹17.16 | ₹42,900.00 |
| 5,000+ | ₹16.13 | ₹80,650.00 |
5 × ₹32.98
₹164.90
excl. GST
₹194.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC74HC125ADTR2G-TP
₹164.90 for 5 + GST
Specifications
- Current - Output High(IOH)
- 32mA
- Input type
- Schmitt trigger
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 32mA
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 40uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.098 g
Overview
This is a quadruple buffer/line driver with 3-state outputs controlled by an output-enable input (nOE). When nOE is high, the outputs are placed in a high-impedance off state. The inputs can be driven by 3.3V or 5V devices. This feature allows these devices to be used as translators in mixed 3.3V and 5V environments. Schmitt-trigger action on all inputs makes the circuit tolerant of slower input rise and fall times. This device is fully specified for partial-power-down applications using IOFF.
Key features
- Wide supply voltage range: 2V to 6.0V
- CMOS low power consumption
- Over-voltage tolerant inputs up to 6.0V
- Latch-up performance exceeds 250mA
- Direct interface with TTL levels
- ESD protection: HBM ANSI/ESDA/JEDEC JS-00 Class 3A exceeds 6000V, CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
- IOFF circuit provides partial power-down mode operation
- JEDEC standards compliant: JESD8-5 (2.3V to 2.7V), JESD8C (2.7V to 3.6V), JESD36 (4.5V to 5.5V)
- Package: TSSOP-14
