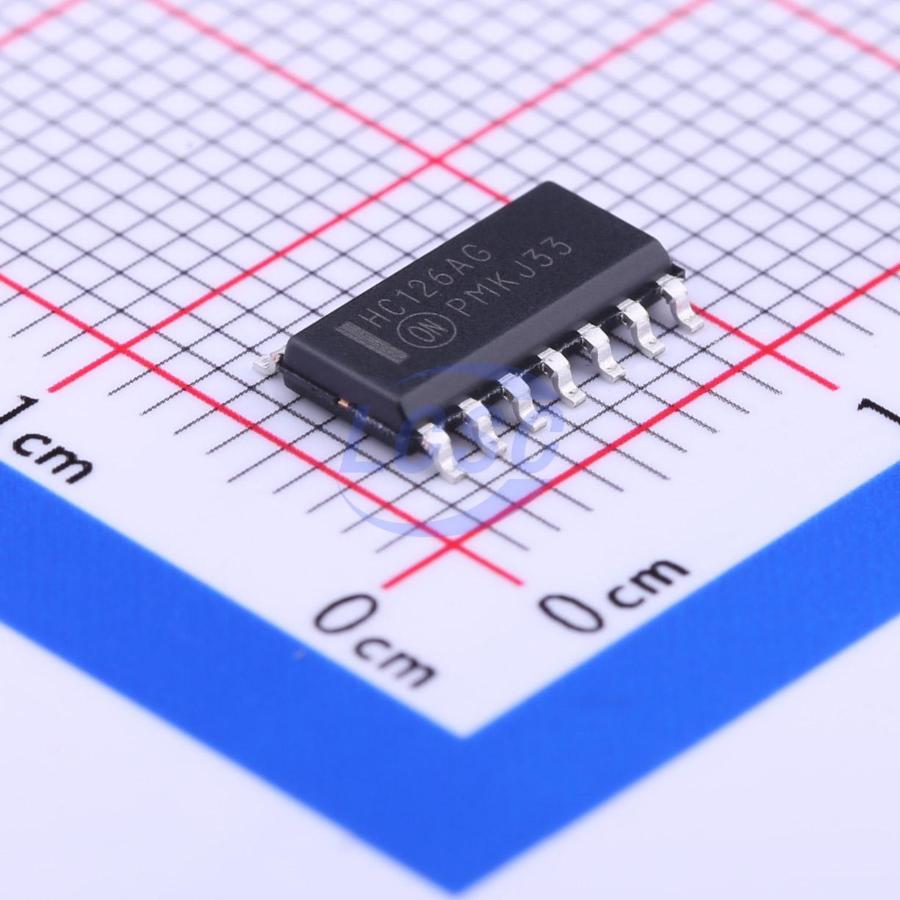

MC74HC126ADR2G

The MC74HC125A and MC74HC126A are identical in pinout to the LS125 and LS126. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs. The HC125A and HC126A noninverting buffers are designed to be used with 3−state memory address drivers, clock drivers, and other bus−oriented systems. The devices have four separate output enables that are active−low (HC125A) or active−high (HC126A).

Applications

• 3−state memory address drivers
• clock drivers
• other bus−oriented systems

Key features

• Output Drive Capability: 15 LSTTL Loads
• Outputs Directly Interface to CMOS, NMOS, and TTL
• Operating Voltage Range: 2.0 to 6.0 V
• Low Input Current: 1.0 μA
• High Noise Immunity Characteristic of CMOS Devices
• In Compliance with the JEDEC Standard No. 7 A Requirements
• Chip Complexity: 72 FETs or 18 Equivalent Gates
• NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
