MC74HC1G14DTT1G
Schmitt trigger 2V~6V 17ns@6V,50pF 1uA 1 TSOP-5 Gates and Inverters RoHS
TSOP-5ROHS3 CompliantActive

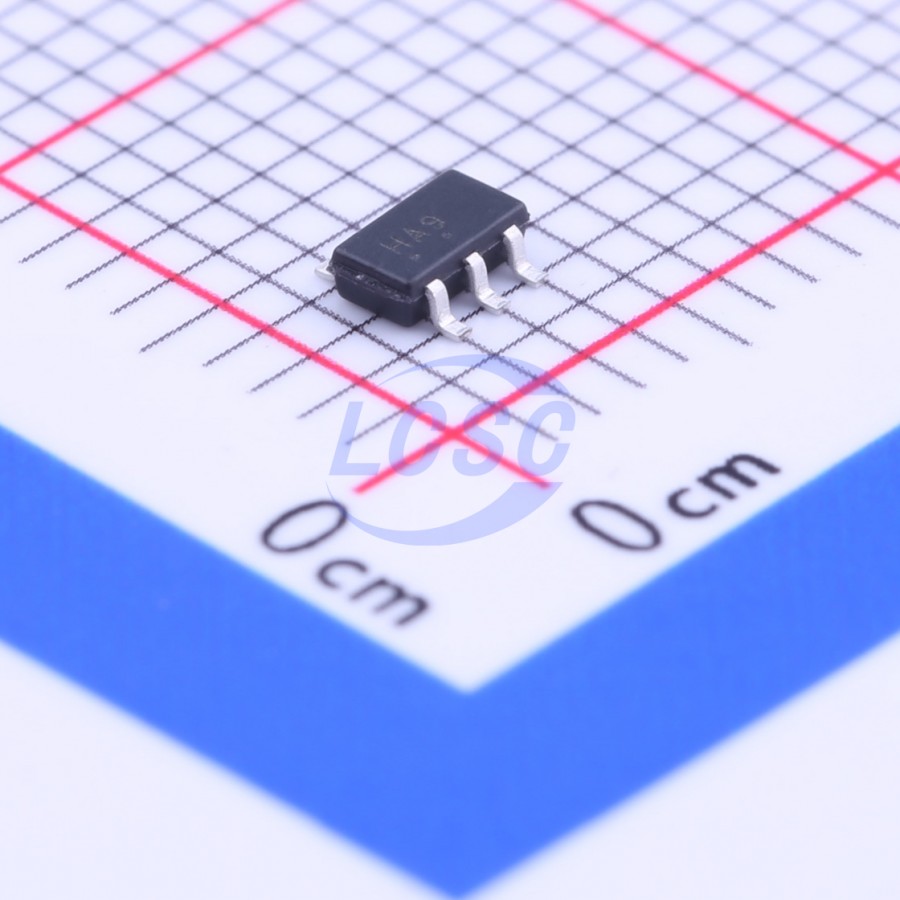

Single Inverter with Schmitt-Trigger Input
- Manufacturer
- onsemi
- Manufacturer part #
- MC74HC1G14DTT1G
- Store part #
- C150059
- Package / case
- TSOP-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,720 in stock
#C150059
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹34.98 | ₹34.98 |
| 10+ | ₹28.93 | ₹289.30 |
| 30+ | ₹26.33 | ₹789.90 |
| 100+ | ₹23.10 | ₹2,310.00 |
| 500+ | ₹21.66 | ₹10,830.00 |
| 1,000+ | ₹20.78 | ₹20,780.00 |
1 × ₹34.98
₹34.98
excl. GST
₹41.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MC74HC1G14DTT1G
₹34.98 for 1 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74HC
- Input Type
- Schmitt trigger
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 260mV
- Propagation Delay
- 17ns@6V,50pF
- Features
- Noise suppression function
- Operating Temperature
- -55℃~+125℃
- Input Logic Level - Low
- 900mV~1.65V
- Input Logic Level - High
- 2.2V~3.85V
- Output Logic Level - High
- 1.9V;2.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 2.6mA
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.041 g
Overview
The MC74HC1G14 is a high speed CMOS inverter with Schmitt−Trigger input fabricated with silicon gate CMOS technology. The internal circuit is composed of multiple stages, including a buffer output which provides high noise immunity and stable output. The MC74HC1G14 output drive current is 1/2 compared to MC74HC series.
Key features
- High Speed: tpp = 7.0 ns (Typ) at VCC = 5.0 V
- Low Power Dissipation: ICC = 1.0 μA (Max) at TA = 25 ℃
- High Noise Immunity
- Balanced Propagation Delays (tpLH = tPHL)
- Symmetrical Output Impedance (IOH = IOL = 2.0 mA)
- Chip Complexity: FET = 101
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
