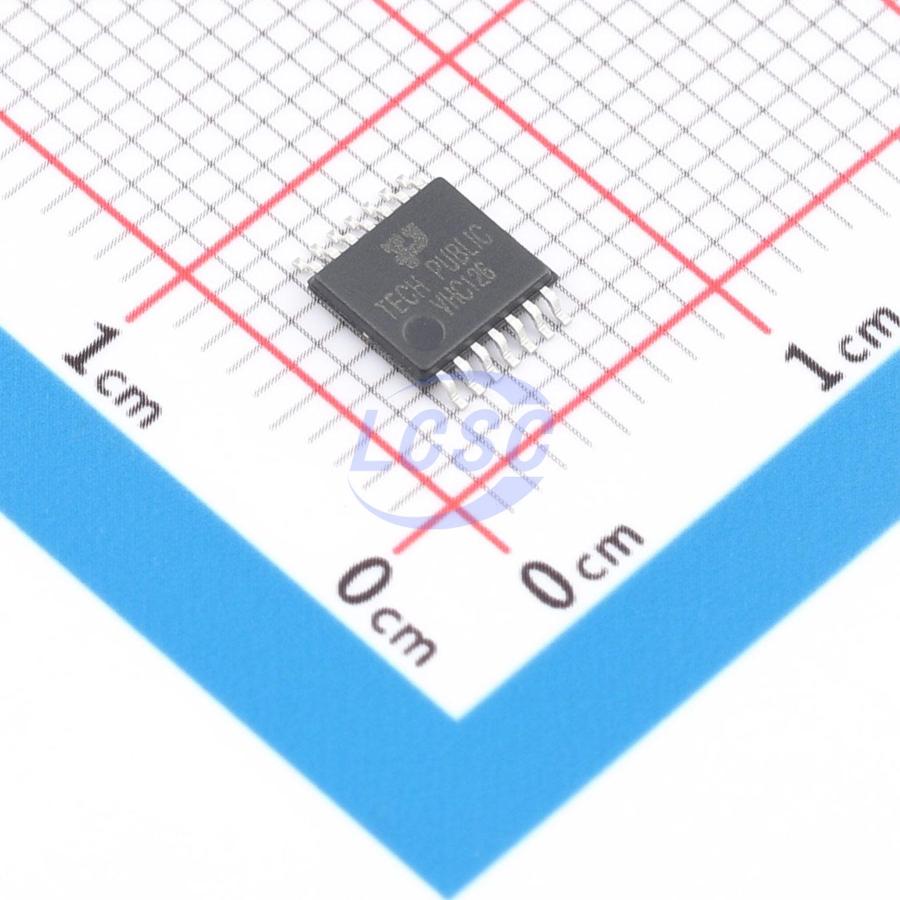

MC74VHC126DTR2G-TP
Schmitt trigger 2V~5.5V 1 TSSOP-14 Buffers, Drivers, Receivers, Transceivers
TSSOP-14RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- MC74VHC126DTR2G-TP
- Store part #
- C54561870
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,500 in stock
#C54561870
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.49 | ₹192.45 |
| 50+ | ₹30.10 | ₹1,505.00 |
| 150+ | ₹26.50 | ₹3,975.00 |
| 500+ | ₹22.01 | ₹11,005.00 |
| 2,500+ | ₹20.02 | ₹50,050.00 |
| 5,000+ | ₹18.81 | ₹94,050.00 |
5 × ₹38.49
₹192.45
excl. GST
₹227.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC74VHC126DTR2G-TP
₹192.45 for 5 + GST
Specifications
- Current - Output High(IOH)
- 32mA
- Input type
- Schmitt trigger
- Series
- 74VHC
- Voltage - Supply
- 2V~5.5V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 32mA
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 40uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.184 g
Overview
This is a quad buffer/line driver with 3-state outputs controlled by an output-enable input (nOE). When nOE is HIGH, the outputs are in a high-impedance off state. The inputs can be driven by 3.3 V or 5 V devices. This feature allows these devices to be used as translators in mixed 3.3 V and 5 V environments. Schmitt-trigger action on all inputs allows the circuit to tolerate slower input rise and fall times.
Key features
- Wide supply voltage range: 2.0 V to 5.5 V
- CMOS low power consumption
- Overvoltage-tolerant inputs up to 5.5 V
- Latch-up performance exceeds 250 mA
- Direct TTL-level interface compatible
- ESD protection: HBM ANSI/ESDA/JEDEC JS-003 Class A exceeds 6000 V, CDM ANSI/ESDA/JEDEC JS-002 C3 exceeds 2000 V
- I<sub>OFF</sub> circuitry enables partial power-down mode operation
- JEDEC standards compliant: JESD8-5 (2.3 V to 2.7 V), JESD8C (2.7 V to 3.6 V), JESD36 (4.5 V to 5.5 V)
- Package: TSSOP-14
