MC74VHC1G00DFT2G
2V~5.5V 7.5ns@5V,50pF 1uA SOT-353-5 Gates and Inverters RoHS
SOT-353-5ROHS3 CompliantActive

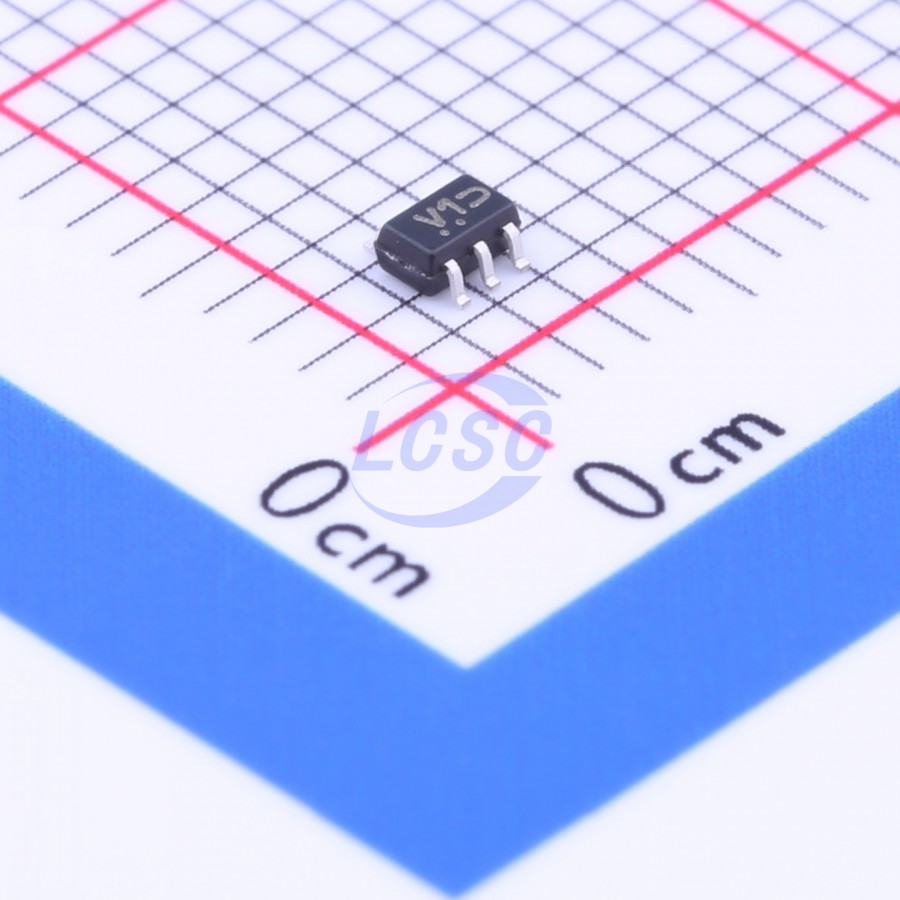

Single 2-Input NAND Gate
- Manufacturer
- onsemi
- Manufacturer part #
- MC74VHC1G00DFT2G
- Store part #
- C264818
- Package / case
- SOT-353-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,095 in stock
#C264818
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.84 | ₹59.20 |
| 50+ | ₹9.49 | ₹474.50 |
| 150+ | ₹8.31 | ₹1,246.50 |
| 500+ | ₹7.44 | ₹3,720.00 |
| 3,000+ | ₹6.72 | ₹20,160.00 |
| 6,000+ | ₹6.38 | ₹38,280.00 |
5 × ₹11.84
₹59.20
excl. GST
₹69.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MC74VHC1G00DFT2G
₹59.20 for 5 + GST
Specifications
- Logic Family
- VHC
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 100mV;360mV;440mV
- Propagation Delay
- 7.5ns@5V,50pF
- Features
- Overvoltage-tolerant input;Local shutdown mode
- Input Logic Level - Low
- 500mV~1.65V
- Input Logic Level - High
- 1.5V~3.85V
- Operating Temperature
- -55℃~+125℃
- Output Logic Level - High
- 1.9V;2.8V;4.4V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.12 g
Overview
The MC74VHC1G00 is an advanced high speed CMOS 2−input NAND gate fabricated with silicon gate CMOS technology. The internal circuit is composed of multiple stages, including a buffer output which provides high noise immunity and stable output. The MC74VHC1G00 input structure provides protection when voltages up to 7.0 V are applied, regardless of the supply voltage. This allows the MC74VHC1G00 to be used to interface 5.0 V circuits to 3.0 V circuits.
Key features
- High Speed: tpD = 3.0 ns (Typ) at VCC = 5.0 V
- Low Power Dissipation: ICC = 1 μA (Max) at TA = 25°C
- Power Down Protection Provided on Inputs
- Balanced Propagation Delays
- Pin and Function Compatible with Other Standard Logic Families
- Chip Complexity: FETs = 56
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
