onsemiDatasheet (PDF)

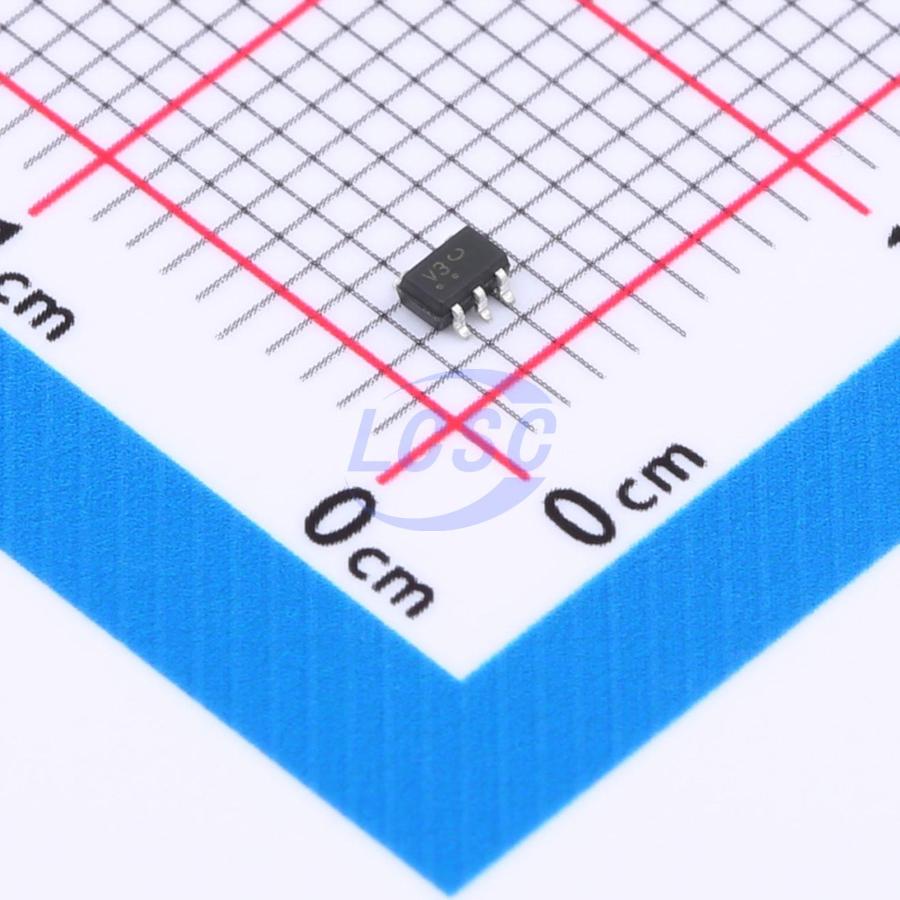

MC74VHC1G02DFT1G
StandardCMOS 2V~5.5V 7.5ns@5V,50pF 1uA SOT-353 Gates and Inverters RoHS
SOT-353ROHS3 CompliantActive
Single 2-Input NoR Gate
- Manufacturer
- onsemi
- Manufacturer part #
- MC74VHC1G02DFT1G
- Store part #
- C891451
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,120 in stock
#C891451
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.16 | ₹70.80 |
| 50+ | ₹11.19 | ₹559.50 |
| 150+ | ₹9.71 | ₹1,456.50 |
| 500+ | ₹8.60 | ₹4,300.00 |
| 3,000+ | ₹7.01 | ₹21,030.00 |
| 6,000+ | ₹6.56 | ₹39,360.00 |
5 × ₹14.16
₹70.80
excl. GST
₹83.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MC74VHC1G02DFT1G
₹70.80 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74VHC Series
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 0V~100mV;360mV
- Propagation Delay
- 7.5ns@5V,50pF
- Features
- Live insertion protection;Local shutdown mode;Rear drive protection;Overvoltage-tolerant input
- Input Logic Level - Low
- 500mV~1.65V
- Input Logic Level - High
- 1.5V~3.85V
- Operating Temperature
- -55℃~+125℃
- Output Logic Level - High
- 3.94V;4.4V~4.5V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
Key features
- Designed for 2.0 V to 5.5 V VCC Operation
- 3.5 ns tPD at 5 V (typ)
- Inputs/Outputs Over−Voltage Tolerant up to 5.5 V
- IOFF Supports Partial Power Down Protection
- Source/Sink 8 mA at 3.0 V
- Available in SC−88A, SC−74A, TSOP−5, SOT−553, SOT−953 and UDFN6 Packages
- Chip Complexity < 100 FETs
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb −Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SN74AHC1G02MDCKREP#C2860050TI · SC-70-5 | TI | SC-70-5 | 103 | ₹298.23 · 103 in stock | View | |
 | SN74AHC1G02DCKR#C7464TI · SC-70-5 | TI | SC-70-5 | 820 | ₹10.48 · 820 in stock | View |
 | TC7SH02FU,LJ(CT#C5156507TOSHIBA · SOT-353 | TOSHIBA | SOT-353 | 21 | ₹55.99 · 21 in stock | View |
 | NC7S02P5X-TP#C42460220TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,490 | ₹6.51 · 2,490 in stock | View |
 | CJ74AHC1G02R5N#C52145681JSCJ · SOT-353 | JSCJ | SOT-353 | 20 | ₹5.62 · 20 in stock | View |
