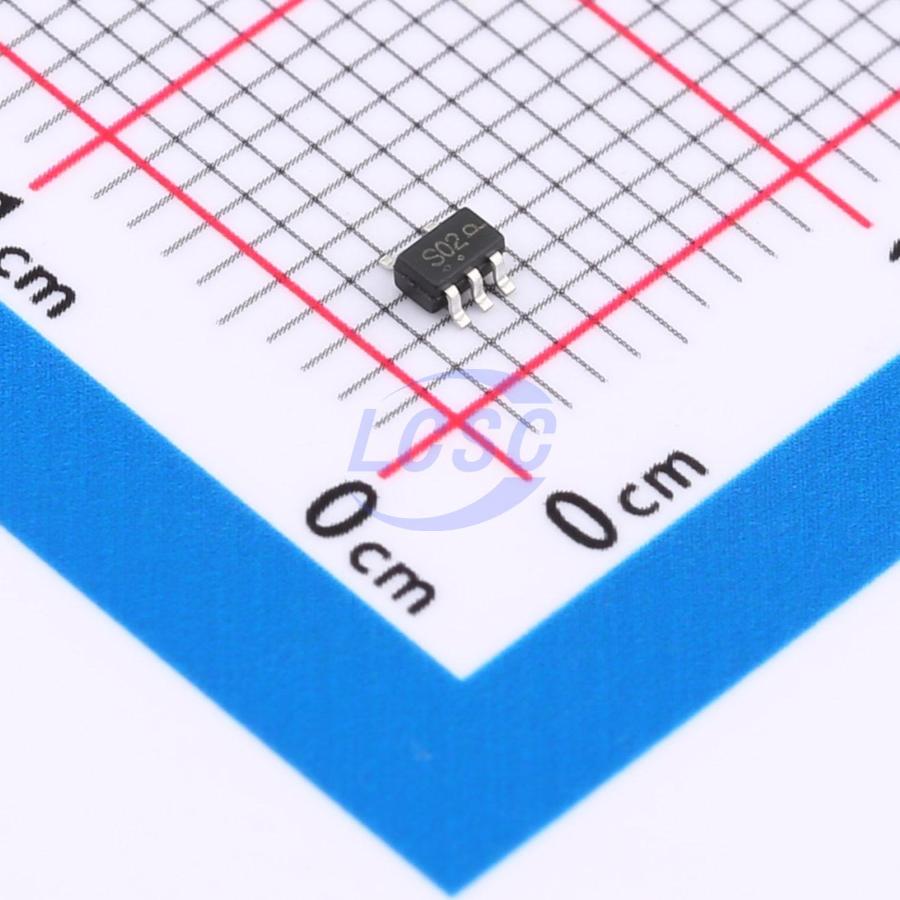

NC7S02P5X-TP
1uA 2V~5.5V 11.4ns@3.3V,50pF SOT-353 Gates and Inverters
SOT-353RoHSActive
2-INPUT NOR GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NC7S02P5X-TP
- Store part #
- C42460220
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,440 in stock
#C42460220
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.51 | ₹65.10 |
| 100+ | ₹5.13 | ₹513.00 |
| 300+ | ₹4.45 | ₹1,335.00 |
| 1,000+ | ₹3.93 | ₹3,930.00 |
| 5,000+ | ₹3.52 | ₹17,600.00 |
| 10,000+ | ₹3.31 | ₹33,100.00 |
10 × ₹6.51
₹65.10
excl. GST
₹76.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7S02P5X-TP
₹65.10 for 10 + GST
Specifications
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V~2V;2.9V~3V;4.4V~4.5V;2.58V;3.94V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 2V~5.5V
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Output Logic Level - Low
- 100mV;360mV
- Propagation Delay
- 11.4ns@3.3V,50pF
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
The NC7S02P5X-TP is a single 2-input NOR gate which provides the Function Y = (A + B)（overline）
Key features
- Operation Voltage Range: 2.0 ~ 5.5 V
- Low Power Dissipation
- High noise immunity
- Balanced propagation delays
- Specified from -40 to +125 ℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHC1G02SE-TP#C52098182TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,980 | ₹6.38 · 2,980 in stock | View |
 | MC74VHC1G02DFT1G-TP#C53100505TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,000 | ₹6.28 · 3,000 in stock | View |
 | TP74AHC1G02C5#C52205179TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,990 | ₹7.38 · 2,990 in stock | View |
 | SN74AHC1G02DCKR-TP#C41408037TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 5,180 | ₹5.11 · 5,180 in stock | View |
 | 74HC1G02GW#C52205093TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,350 | ₹6.24 · 2,350 in stock | View |
