TECH PUBLICDatasheet (PDF)

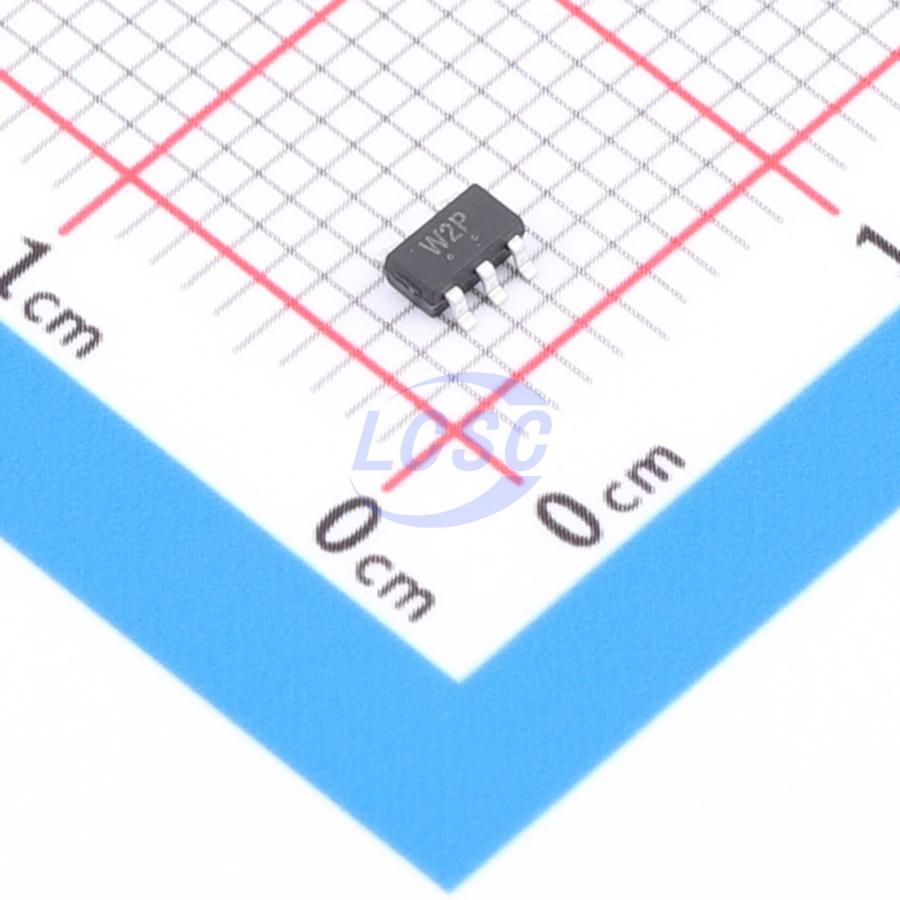

MC74VHC1G126DTT1G-TP
2V~5.5V 11.5ns@3.3V,50pF 1uA SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- MC74VHC1G126DTT1G-TP
- Store part #
- C53100485
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,870 in stock
#C53100485
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.73 | ₹57.30 |
| 100+ | ₹4.52 | ₹452.00 |
| 300+ | ₹3.92 | ₹1,176.00 |
| 3,000+ | ₹3.45 | ₹10,350.00 |
| 6,000+ | ₹3.10 | ₹18,600.00 |
| 9,000+ | ₹2.91 | ₹26,190.00 |
10 × ₹5.73
₹57.30
excl. GST
₹67.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MC74VHC1G126DTT1G-TP
₹57.30 for 10 + GST
Specifications
- output type
- Tri-State
- Logic Family
- 74VHC
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 100mV;360mV
- Propagation Delay
- 11.5ns@3.3V,50pF
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Operating Temperature
- -40℃~+125℃
- Features
- Controllable output enable
- Output Logic Level - High
- 1.9V;2.9V;4.4V;2.58V;3.94V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;1
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.1 g
Overview
The MC74VHC1G126 is a single bus buffer gate/line driver with 3-state output. When OE is low, the Y output is in a high-impedance state. When OE is high, the device passes non-inverting data from input A to output Y. To ensure the high-impedance state is maintained during power-up or power-down, OE should be connected to GND through a pull-down resistor; the minimum value of this resistor is determined by the current sinking capability of the driver.
Key features
- Wide supply voltage range: 2V to 5.5V
- Maximum propagation delay tpd from A to Y: 6 ns at 5V
- Low power consumption, maximum quiescent current ICC = 1μA at 5.5V
- ±8 mA output drive capability at 5V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP74AHC1G126S5#C52205192TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,990 | ₹6.76 · 2,990 in stock | View |
 | MC74VHC1G125DTT1G-TP#C53100486TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,960 | ₹5.77 · 2,960 in stock | View |
 | TP74AHC1G125S5#C52205190TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 4,170 | ₹6.84 · 4,170 in stock | View |
