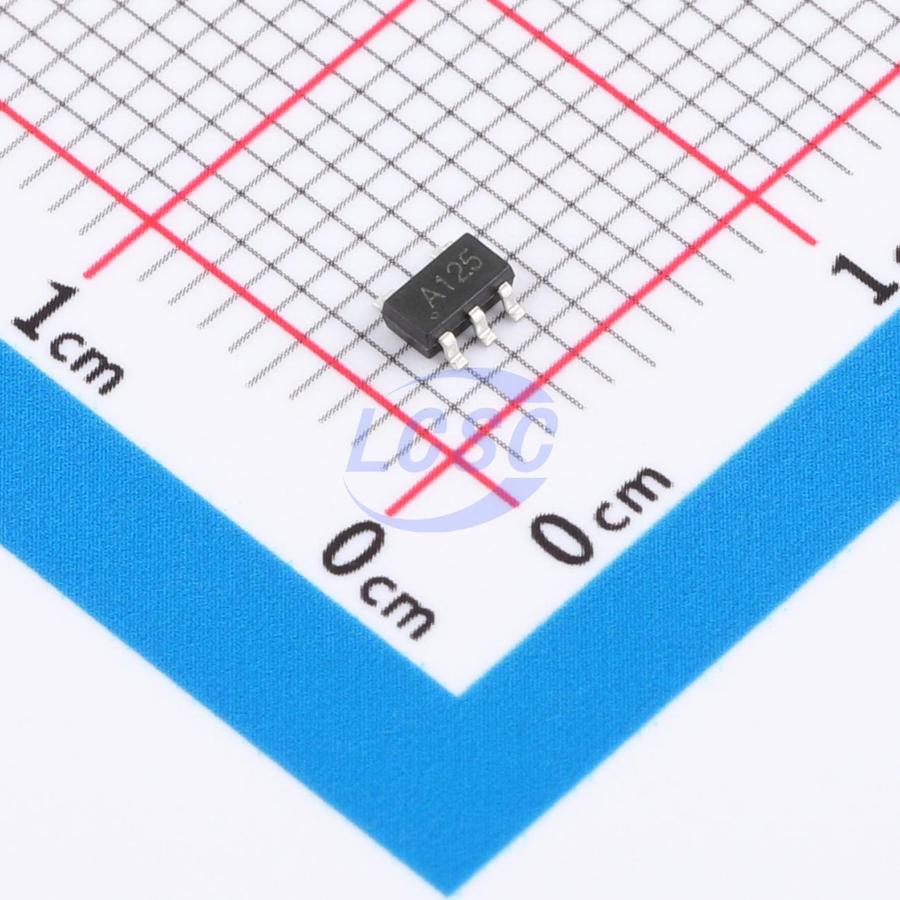

TECH PUBLICDatasheet (PDF)
TP74AHC1G125S5
2V~5.5V 7.5ns@5V,50pF 1uA SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74AHC1G125S5
- Store part #
- C52205190
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,170 in stock
#C52205190
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.84 | ₹68.40 |
| 100+ | ₹5.37 | ₹537.00 |
| 300+ | ₹4.64 | ₹1,392.00 |
| 3,000+ | ₹4.09 | ₹12,270.00 |
| 6,000+ | ₹3.65 | ₹21,900.00 |
| 9,000+ | ₹3.43 | ₹30,870.00 |
10 × ₹6.84
₹68.40
excl. GST
₹80.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74AHC1G125S5
₹68.40 for 10 + GST
Specifications
- output type
- Tri-State
- Logic Family
- 74AHC
- Voltage - Supply
- 2V~5.5V
- Propagation Delay
- 7.5ns@5V,50pF
- Output Logic Level - Low
- 100mV;360mV
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Operating Temperature
- -40℃~+125℃
- Features
- Controllable output enable
- Output Logic Level - High
- 1.9V;2V;2.58V;2.9V;3V;3.94V;4.4V;4.5V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 1;1
- Current - Output High(IOH)
- 8mA
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The TP74AHC1G125 is a single bus buffer gate/line driver with 3-state output. When OE is high, the Y output is in a high-impedance state. When OE is low, the device passes non-inverting data from input A to output Y. To ensure the high-impedance state is maintained during power-up or power-down, OE should be connected to VCC through a pull-up resistor; the minimum value of this resistor is determined by the current sinking capability of the driver.
Key features
- Wide supply voltage range: 2V to 5.5V
- Maximum propagation delay tPD from A to Y: 6 ns at 5V
- Low power consumption: maximum quiescent current ICC of 1μA at 5.5V
- Output drive capability: ±8mA at 5V
