onsemi

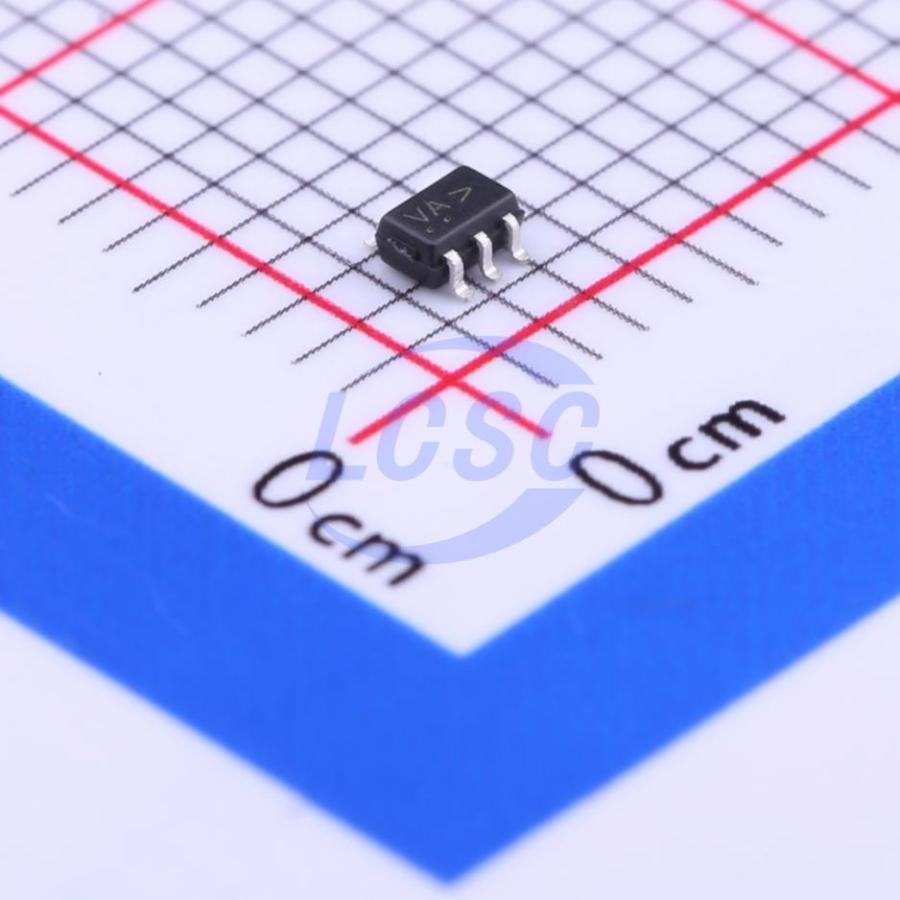

MC74VHC1G14DFT1G

Schmitt trigger 2V~5.5V 1 10.6ns@5V,50pF SC-70-5 Gates and Inverters RoHS

SC-70-5ROHS3 CompliantActive

Single Schmitt-Trigger Inverter

Manufacturer: onsemi
Manufacturer part #: MC74VHC1G14DFT1G
Store part #: C233639
Package / case: SC-70-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,750 in stock

#C233639

Stock & price checked 18 h ago

Quantity	Unit price	Pack price
5+	₹10.12	₹50.60
50+	₹8.02	₹401.00
150+	₹6.97	₹1,045.50
500+	₹6.19	₹3,095.00
3,000+	₹5.56	₹16,680.00
6,000+	₹5.24	₹31,440.00

Quantity (min 5, multiples of 5)

5 × ₹10.12

₹50.60

excl. GST

₹59.71 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

MC74VHC1G14DFT1G

₹50.60 for 5 + GST

Specifications

Features: Power shutdown protection;Noise suppression function
Operating Temperature: -55℃~+125℃
Input Logic Level - Low: 900mV~1.65V
Input Logic Level - High: 2.2V~3.85V
Input Type: Schmitt trigger
Logic Family: 74VHC
Voltage - Supply: 2V~5.5V
Number of Channels: 1
Current - Output High(IOH): 8mA
Propagation Delay: 10.6ns@5V,50pF
Current - Output Low(IOL): 8mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.028 g

Overview

The MC74VHC1G14 / MC74VHC1GT14 is a single Schmitt− Trigger Inverter in tiny footprint packages. The MC74VHC1G14 has CMOS−level input thresholds while the MC74VHC1GT14 has TTL−level input thresholds. The internal circuit is composed of three stages, including a buffered output which provides high noise immunity and stable output. The input structures provide protection when voltages up to 5.5 V are applied, regardless of the supply voltage. This allows the device to be used to interface 5 V circuits to 3 V circuits. Some output structures also provide protection when VCC = 0 V and when the output voltage exceeds VCC. These input and output structures help prevent device destruction caused by supply voltage − input/output voltage mismatch, battery backup, hot insertion, etc.

Key features

Designed for 2.0 V to 5.5 V VCC Operation
4.0 ns tPD at 5 V (typ)
Inputs/Outputs Over−Voltage Tolerant up to 5.5 V
IOFF Supports Partial Power Down Protection
Source/Sink 8 mA at 3.0 V
Available in SC−88A, SC−74A, TSOP−5, SOT−953 and UDFN6 Packages
Chip Complexity <100 FETs
NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
