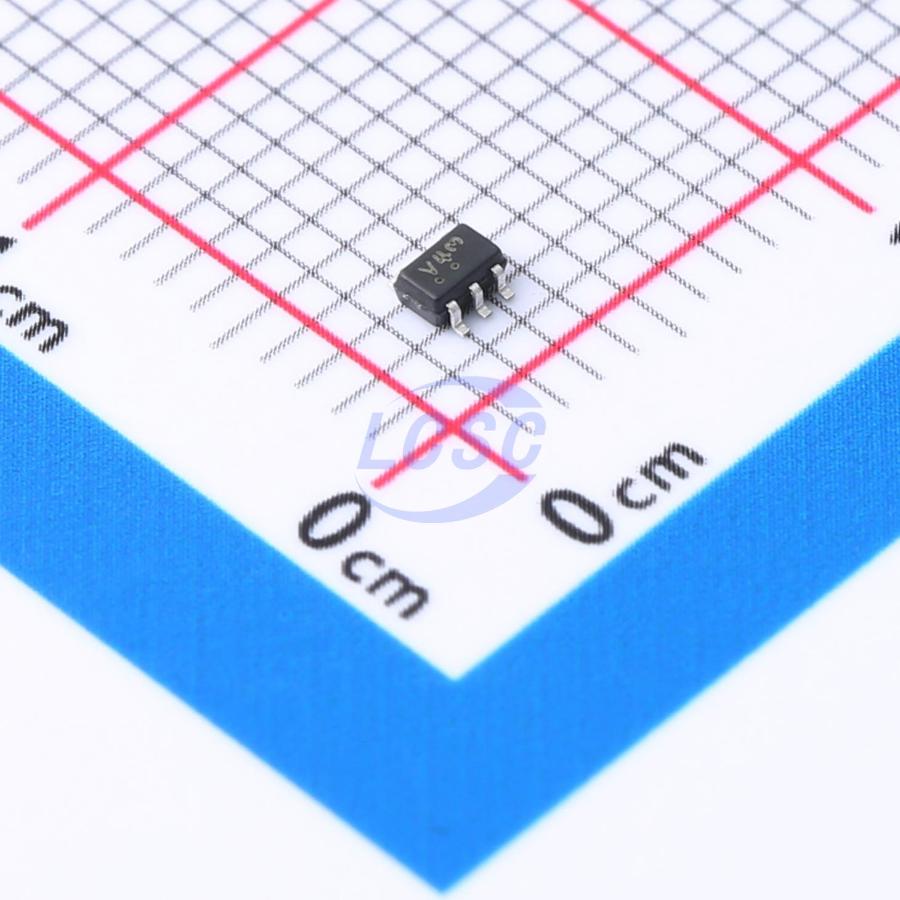

onsemi

MC74VHC1G32DFT1G-L22038

StandardCMOS 2V~5.5V 7.5ns@5V,50pF 40uA SC-88A Gates and Inverters RoHS

SC-88AROHS CompliantActive

Single 2-input OR Gate

Manufacturer: onsemi
Manufacturer part #: MC74VHC1G32DFT1G-L22038
Store part #: C5207685
Package / case: SC-88A
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,705 in stock

#C5207685

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹10.93	₹54.65
50+	₹8.75	₹437.50
150+	₹7.66	₹1,149.00
500+	₹6.84	₹3,420.00
3,000+	₹6.18	₹18,540.00
6,000+	₹5.85	₹35,100.00

Quantity (min 5, multiples of 5)

5 × ₹10.93

₹54.65

excl. GST

₹64.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

MC74VHC1G32DFT1G-L22038

₹54.65 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Type: StandardCMOS
Logic Family: VHC
Voltage - Supply: 2V~5.5V
Output Logic Level - Low: 100mV;360mV;520mV
Propagation Delay: 7.5ns@5V,50pF
Features: Overvoltage-tolerant input;Local shutdown mode
Operating Temperature: -55℃~+125℃
Input Logic Level - High: 1.5V;2.1V;3.15V;3.85V
Input Logic Level - Low: 500mV;900mV;1.35V;1.65V
Output Logic Level - High: 1.9V;2.9V;4.4V
Quiescent Current(Iq): 40uA
Current - Output High(IOH): 8mA
Number of Channels: 1;2
Current - Output Low(IOL): 8mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.033 g

Overview

The MC74VHC1G32 / MC74VHC1GT32 is a single 2−input OR Gate in tiny footprint packages. The MC74VHC1G32 has CMOS−level input thresholds while the MC74VHC1GT32 has TTL−level thresholds. The input structures provide protection when voltages up to 5.5 V are applied, regardless of the supply voltage. This allows the device to be used to interface 5 V circuits to 3 V circuits. Some output structures also provide protection when VCC = 0 V and when the output voltage exceeds VCC. These input and output structures help prevent device destruction caused by supply voltage − input/output voltage mismatch, battery backup, hot insertion, etc.

Key features

Designed for 2.0 V to 5.5 V VCC Operation
3.7 ns tPD at 5 V (typ)
Inputs/Outputs Over−Voltage Tolerant up to 5.5 V
IOFF Supports Partial Power Down Protection
Source/Sink 8 mA at 3.0 V
Available in SC−88A, SC−74A, TSOP−5, SOT−953 and UDFN6 Packages
Chip Complexity <100 FETs
NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
