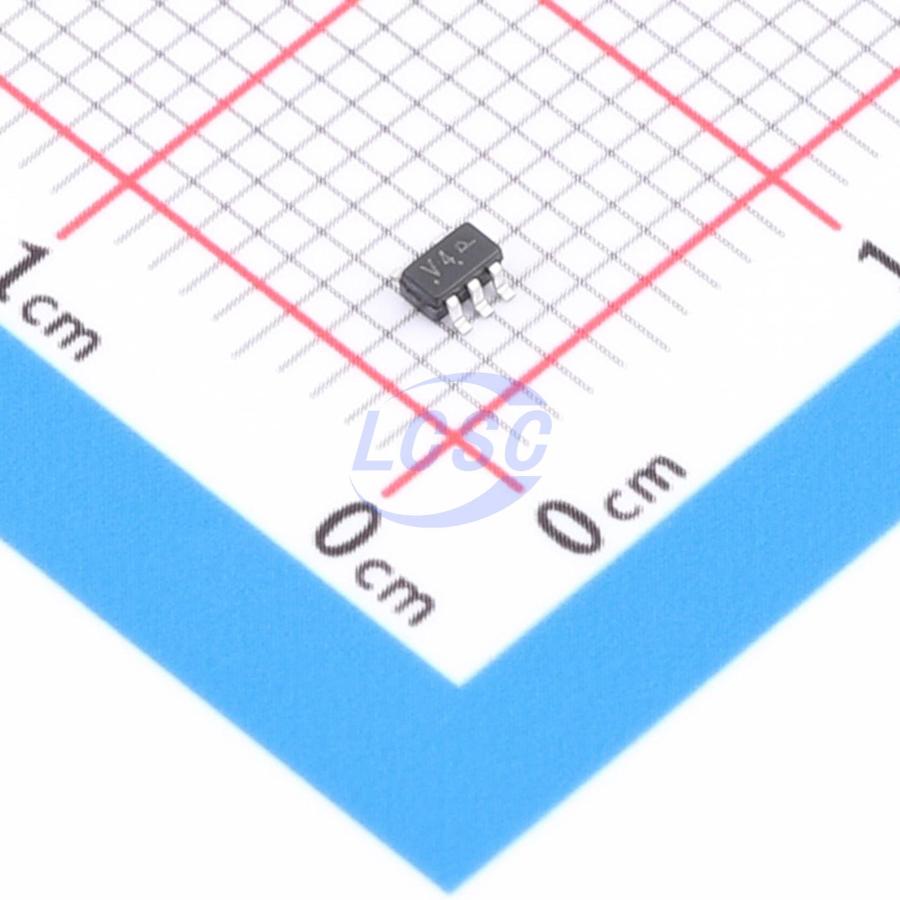

MC74VHC1G32DFT1G-TP
2V~5.5V 7.5ns@5V,50pF 1uA SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- MC74VHC1G32DFT1G-TP
- Store part #
- C53100500
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,880 in stock
#C53100500
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.40 | ₹64.00 |
| 100+ | ₹5.03 | ₹503.00 |
| 300+ | ₹4.34 | ₹1,302.00 |
| 3,000+ | ₹3.82 | ₹11,460.00 |
| 6,000+ | ₹3.41 | ₹20,460.00 |
| 9,000+ | ₹3.20 | ₹28,800.00 |
10 × ₹6.40
₹64.00
excl. GST
₹75.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MC74VHC1G32DFT1G-TP
₹64.00 for 10 + GST
Specifications
- Logic Family
- 74VHC
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 100mV;360mV
- Propagation Delay
- 7.5ns@5V,50pF
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;2.9V;4.4V;2.58V;3.94V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.1 g
Overview
The MC74VHC1G32 is a single 2-input OR gate providing the Y = A + B function in positive logic.
Key features
- Operating voltage range: 2V ~ 5.5V
- Maximum propagation delay of 5.5ns at 5V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHC1G32GW-TP#C19829644TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 1,380 | ₹5.61 · 1,380 in stock | View |
 | NC7S32P5X-TP#C42460217TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 4,500 | ₹3.53 · 4,500 in stock | View |
 | 74AHC1G32SE-TP#C52098178TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,650 | ₹6.43 · 3,650 in stock | View |
 | SN74AHC1G32DCKR-TP#C19829638TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 6,700 | ₹4.88 · 6,700 in stock | View |
 | TP74AHC1G32C5#C52205197TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,000 | ₹7.38 · 3,000 in stock | View |
