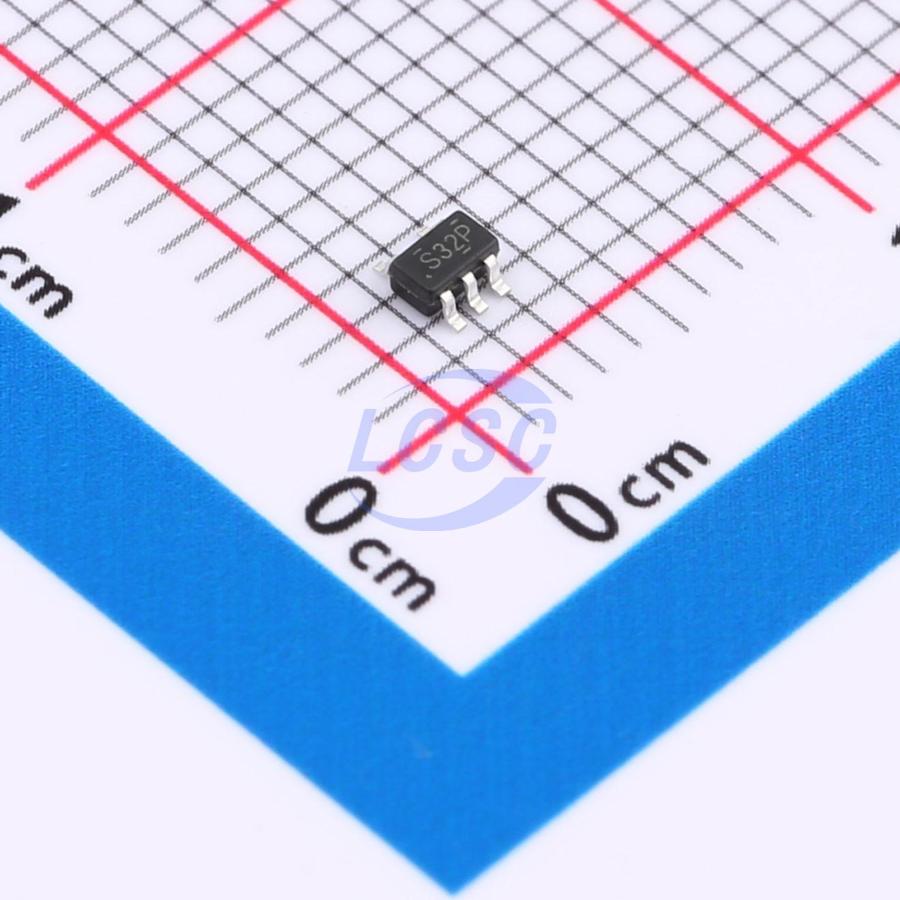

NC7S32P5X-TP
1uA 2V~5.5V 7.5ns@5V,50pF SOT-353 Gates and Inverters
SOT-353RoHSActive
SINGLE 2-INPUT POSITIVE-OR GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NC7S32P5X-TP
- Store part #
- C42460217
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,500 in stock
#C42460217
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹3.53 | ₹35.30 |
| 100+ | ₹3.45 | ₹345.00 |
| 300+ | ₹3.40 | ₹1,020.00 |
| 1,000+ | ₹3.35 | ₹3,350.00 |
10 × ₹3.53
₹35.30
excl. GST
₹41.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7S32P5X-TP
₹35.30 for 10 + GST
Specifications
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V~2V;2.9V~3V;4.4V~4.5V;2.58V;3.94V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 2V~5.5V
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Output Logic Level - Low
- 100mV;360mV
- Propagation Delay
- 7.5ns@5V,50pF
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
The NC7S32P5X-TP is a single 2-input positive-or gate, which provides the function Y = A + B in positive logic.
Key features
- Operate from 2V to 5.5V
- Max tpp of 5.5ns at 5 V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHC1G32GW-TP#C19829644TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 1,380 | ₹5.61 · 1,380 in stock | View |
 | MC74VHC1G32DFT1G-TP#C53100500TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,880 | ₹6.40 · 2,880 in stock | View |
 | 74AHC1G32SE-TP#C52098178TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,650 | ₹6.43 · 3,650 in stock | View |
 | SN74AHC1G32DCKR-TP#C19829638TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 6,700 | ₹4.88 · 6,700 in stock | View |
 | TP74AHC1G32C5#C52205197TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,000 | ₹7.38 · 3,000 in stock | View |
