onsemiDatasheet (PDF)

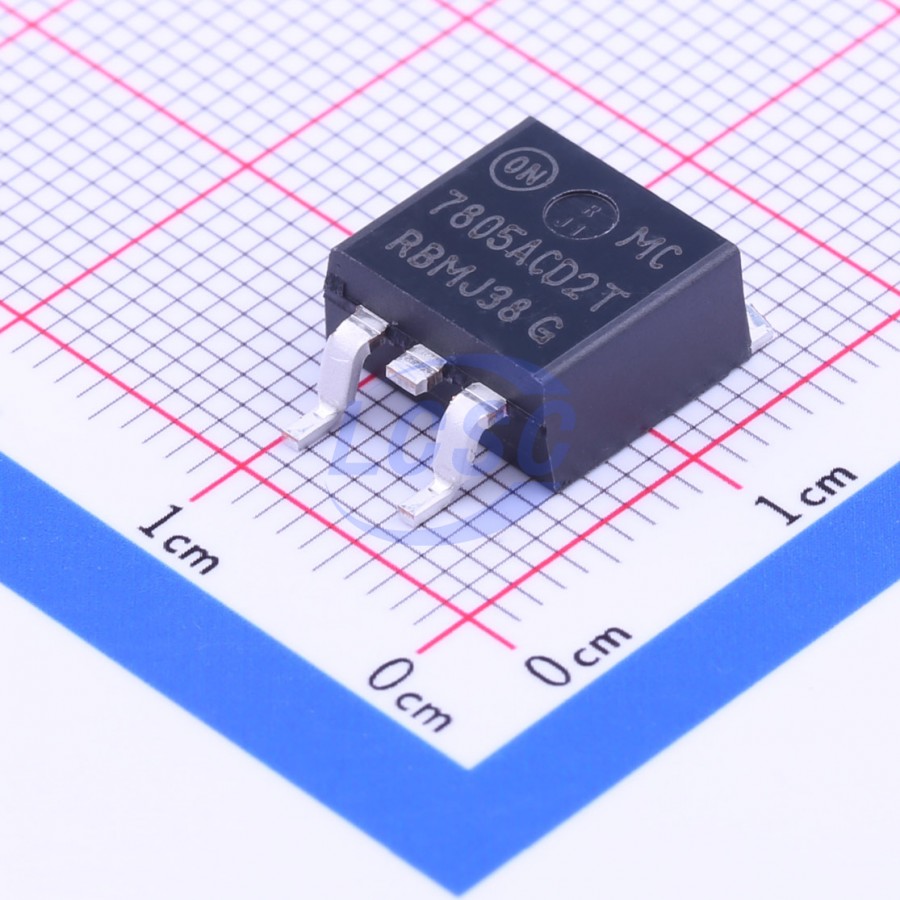

MC7805ACD2TR4G
5V Positive Fixed TO-263-2 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-263-2ROHS3 CompliantActive
1.0 A Positive Voltage Regulators
- Manufacturer
- onsemi
- Manufacturer part #
- MC7805ACD2TR4G
- Store part #
- C152460
- Package / case
- TO-263-2
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,100 in stock
#C152460
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹80.66 | ₹80.66 |
| 10+ | ₹65.91 | ₹659.10 |
| 30+ | ₹58.54 | ₹1,756.20 |
| 100+ | ₹51.17 | ₹5,117.00 |
| 500+ | ₹46.83 | ₹23,415.00 |
| 800+ | ₹44.66 | ₹35,728.00 |
1 × ₹80.66
₹80.66
excl. GST
₹95.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 800 per reel
MC7805ACD2TR4G
₹80.66 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 3.2mA
- Output Configuration
- Positive
- Operating Voltage
- 25V
- Output Current
- 1A
- Features
- Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.816 g
Overview
These voltage regulators are monolithic integrated circuits designed as fixed−voltage regulators for a wide variety of applications including local, on−card regulation. These regulators employ internal current limiting, thermal shutdown, and safe−area compensation. With adequate heatsinking they can deliver output currents in excess of 1.0 A. Although designed primarily as a fixed voltage regulator, these devices can be used with external components to obtain adjustable voltages and currents.
Key features
- Output Current in Excess of 1.0 A
- No External Components Required
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
- Output Transistor Safe−Area Compensation
- Output Voltage Offered in 1.5%, 2% and 4% Tolerance
- Available in Surface Mount D²PAK−3, DPAK−3 and Standard 3−Lead Transistor Packages
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L7805CD2T-TR#C15077ST · TO-263-2 | ST | TO-263-2 | 5,091 | ₹55.58 · 5,091 in stock | View |
 | MC7805ABD2TR4G#C152462onsemi · TO-263-2 | onsemi | TO-263-2 | 751 | ₹111.66 · 751 in stock | View |
 | MC7805BD2TG#C233214onsemi · D2PAK | onsemi | D2PAK | 32 | ₹100.56 · 32 in stock | View |
 | L7805ACD2T-TR#C53236ST · TO-263-2 | ST | TO-263-2 | 83 | ₹113.43 · 83 in stock | View |
 | L7805CD2T(MS)#C20538905MSKSEMI · TO-263 | MSKSEMI | TO-263 | 45 | ₹34.12 · 45 in stock | View |
