onsemiDatasheet (PDF)

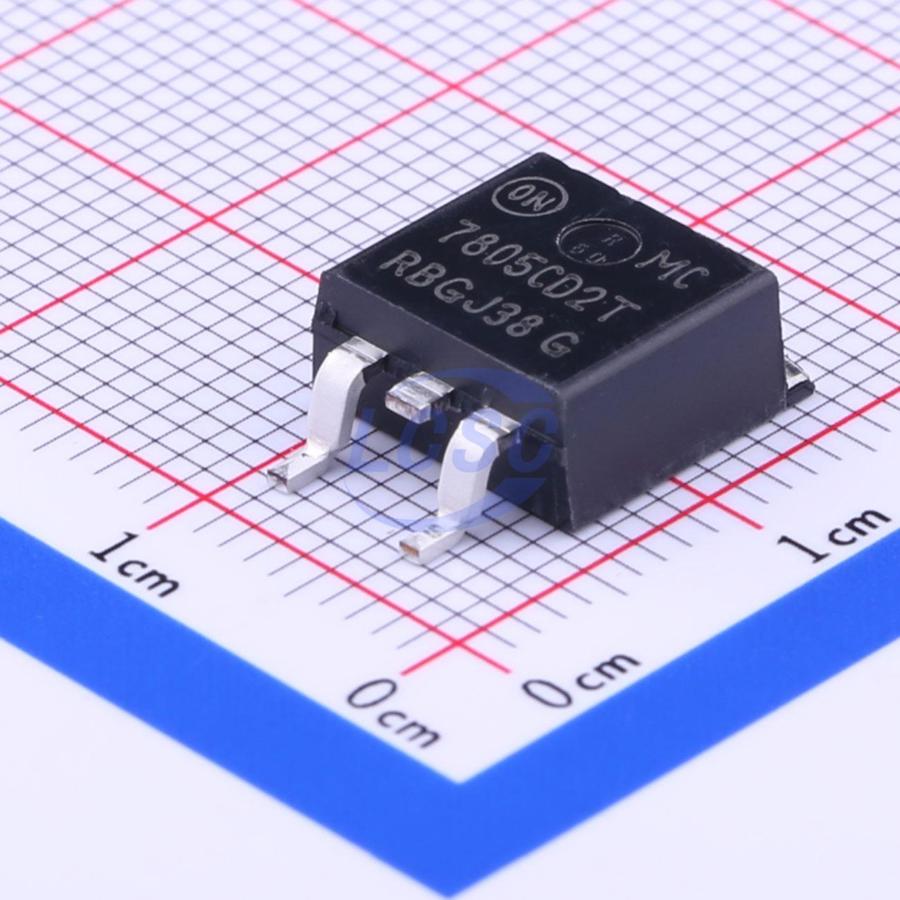

MC7805CD2TG
5V Positive Fixed TO-263-2 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-263-2ROHS3 CompliantActive
Positive Voltage Regulators
- Manufacturer
- onsemi
- Manufacturer part #
- MC7805CD2TG
- Store part #
- C233391
- Package / case
- TO-263-2
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
413 in stock
#C233391
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹100.07 | ₹100.07 |
| 10+ | ₹80.93 | ₹809.30 |
| 50+ | ₹71.14 | ₹3,557.00 |
| 100+ | ₹61.57 | ₹6,157.00 |
| 500+ | ₹55.91 | ₹27,955.00 |
| 1,000+ | ₹53.08 | ₹53,080.00 |
1 × ₹100.07
₹100.07
excl. GST
₹118.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
MC7805CD2TG
₹100.07 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 3.2mA
- Output Configuration
- Positive
- Operating Voltage
- 20V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.728 g
Overview
These voltage regulators are monolithic integrated circuits designed as fixed−voltage regulators for a wide variety of applications including local, on−card regulation. These regulators employ internal current limiting, thermal shutdown, and safe−area compensation. With adequate heatsinking they can deliver output currents in excess of 1.0 A. Although designed primarily as a fixed voltage regulator, these devices can be used with external components to obtain adjustable voltages and currents.
Key features
- Output Current in Excess of 1.0 A
- No External Components Required
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
- Output Transistor Safe−Area Compensation
- Output Voltage Offered in 1.5%, 2% and 4% Tolerance
- Available in Surface Mount D²PAK−3, DPAK−3 and Standard 3−Lead Transistor Packages
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC7805ACD2TR4G#C152460onsemi · TO-263-2 | onsemi | TO-263-2 | 4,095 | ₹80.66 · 4,095 in stock | View |
 | MC7805CD2TR4G#C38743onsemi · TO-263-2 | onsemi | TO-263-2 | 13,359 | ₹55.26 · 13,359 in stock | View |
 | MC7805BD2TR4G#C15833onsemi · TO-263-2 | onsemi | TO-263-2 | 4,076 | ₹74.62 · 4,076 in stock | View |
 | NCV7805BD2TR4G#C327508onsemi · D2PAK | onsemi | D2PAK | 2,547 | ₹114.74 · 2,547 in stock | View |
 | MC7805ABD2TR4G#C152462onsemi · TO-263-2 | onsemi | TO-263-2 | 726 | ₹111.66 · 726 in stock | View |
