onsemiDatasheet (PDF)

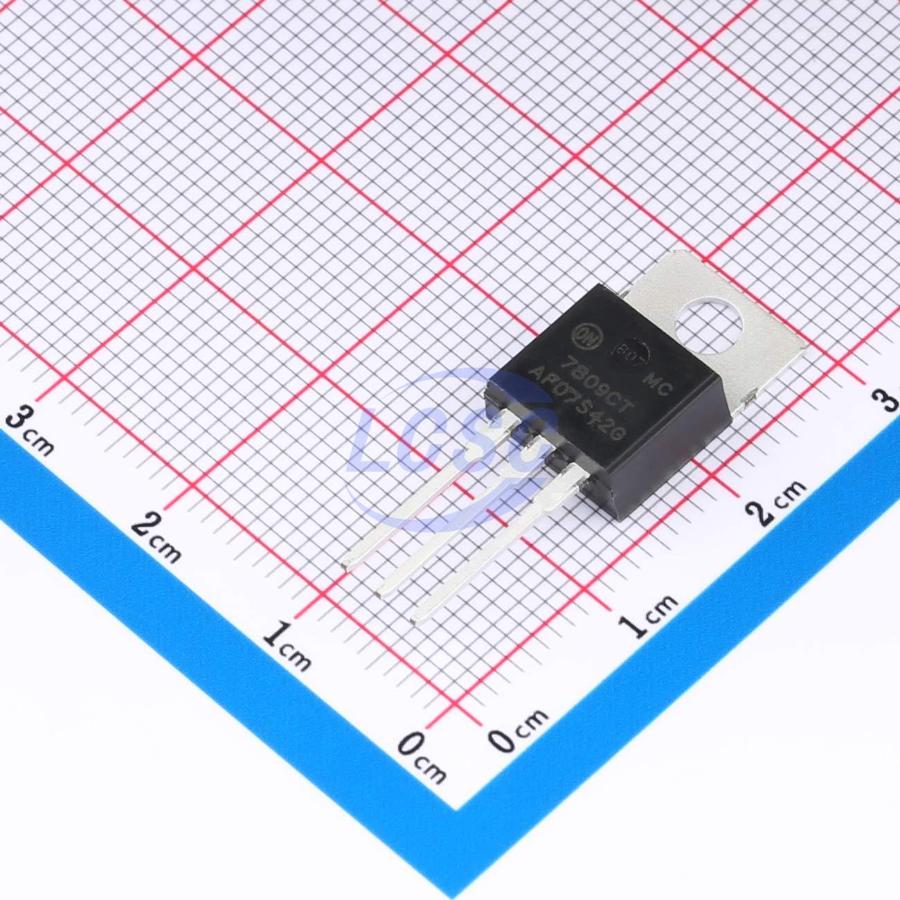

MC7809CTG
9V Positive Fixed TO-220 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220ROHS3 CompliantActive
1.0 A Positive Voltage Regulators
- Manufacturer
- onsemi
- Manufacturer part #
- MC7809CTG
- Store part #
- C126395
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,812 in stock
#C126395
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.09 | ₹52.09 |
| 10+ | ₹40.59 | ₹405.90 |
| 50+ | ₹35.81 | ₹1,790.50 |
| 100+ | ₹29.74 | ₹2,974.00 |
| 500+ | ₹26.92 | ₹13,460.00 |
| 1,000+ | ₹25.40 | ₹25,400.00 |
1 × ₹52.09
₹52.09
excl. GST
₹61.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
MC7809CTG
₹52.09 for 1 + GST
Specifications
- Output Voltage
- 9V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃
- Supply Current (Iq)
- 8mA
- Output Configuration
- Positive
- Operating Voltage
- 35V
- Output Current
- 1A
- Features
- Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.16 g
Overview
These voltage regulators are monolithic integrated circuits designed as fixed−voltage regulators for a wide variety of applications including local, on−card regulation. These regulators employ internal current limiting, thermal shutdown, and safe−area compensation. With adequate heatsinking they can deliver output currents in excess of 1.0 A. Although designed primarily as a fixed voltage regulator, these devices can be used with external components to obtain adjustable voltages and currents.
Key features
- Output Current in Excess of 1.0 A
- No External Components Required
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
- Output Transistor Safe−Area Compensation
- Output Voltage Offered in 1.5%, 2% and 4% Tolerance
- Available in Surface Mount D²PAK−3, DPAK−3 and Standard 3−Lead Transistor Packages
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L7809CV-DG#C3794ST · TO-220 | ST | TO-220 | 2,107 | ₹170.75 · 2,107 in stock | View |
 | L7809 TO-220#C54430187KTP · TO-220 | KTP | TO-220 | 610 | ₹27.84 · 610 in stock | View |
 | L7809CV#C8091ST · TO-220 | ST | TO-220 | 322 | ₹183.18 · 322 in stock | View |
 | L7809#C2843719PUOLOP · TO-220 | PUOLOP | TO-220 | 70 | ₹33.56 · 70 in stock | View |
| L7809-TD#C54858024TDSEMIC · TO-220 | TDSEMIC | TO-220 | 1,000 | ₹21.98 · 1,000 in stock | View | |
